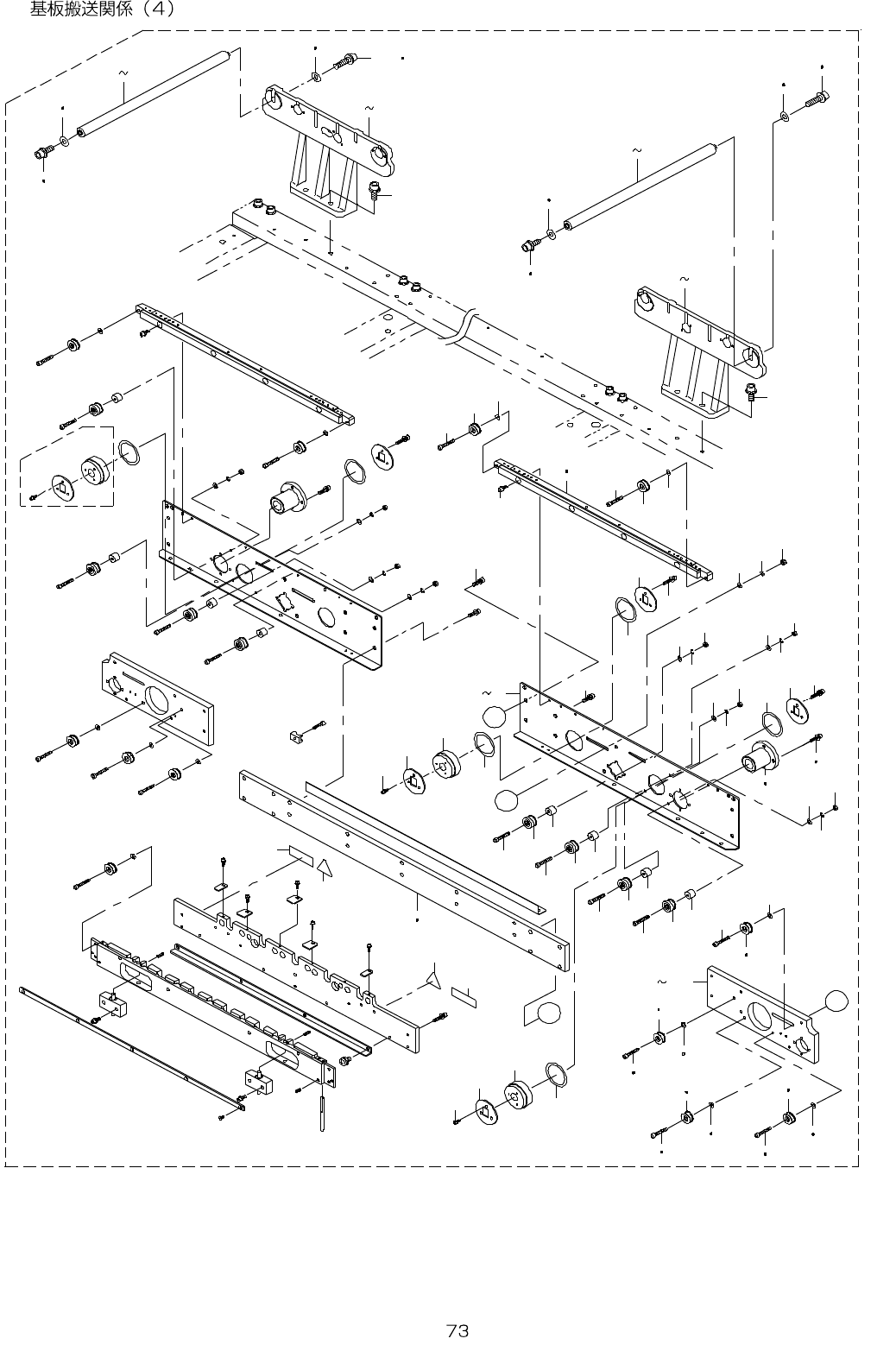

- - 37. PWB CONVEYOR COMP O NE N TS ( 4) 1 9 1 8 1 7 5 5 4 5 5 4 3 3 3 2 1 5 3 3 1 5 1 3 1 4 3 3 1 3 1 4 1 6 2 2 2 1 2 0 2 5 2 4 2 3 2 2 2 1 2 0 2 2 2 1 2 0 2 2 2 1 2 0 2 5 2 4 2 3 2 5 2 4 2 3 2 5 2 4 2 3 2 9 3 0 3 4 3…
- -

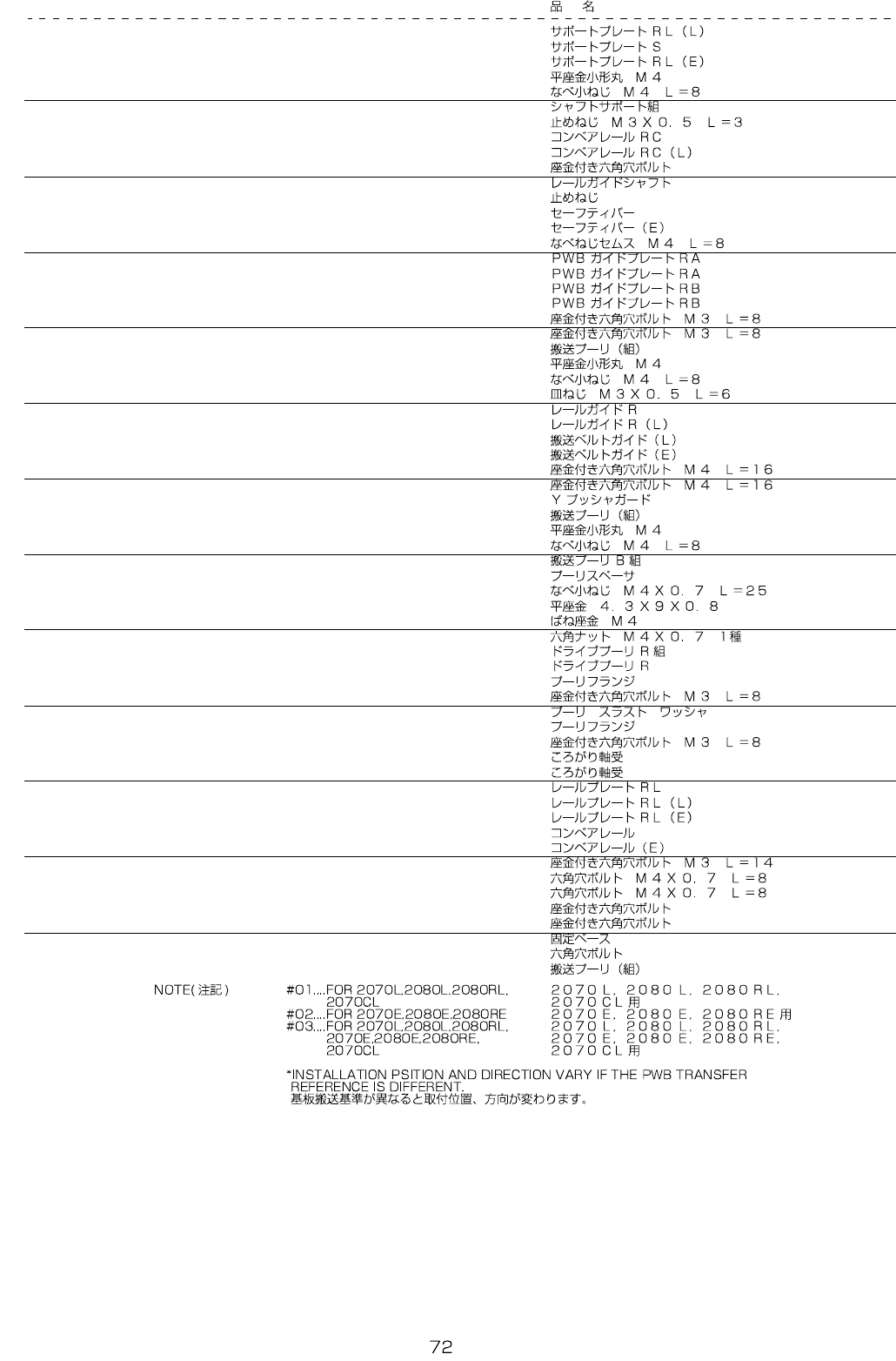

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-01064 SUPPORT PLATE RL(L) 1
2 400-00841 SUPPORT PLATE S 1
3
#02
E4076-725-000 SUPPORT PLATE RL(E) 1
4 WP-0430800-SC WASHER M4 3
5 SM-4040855-SC SCREW 3
6 E4105-729-0A0 SHAFT SUPPORT B ASM. 2
7 SM-8030302-TP SCREW M3X0.5 L=3 2
8 400-00836 CONVEYOR RAIL RC 1
9
#03
400-01057 CONVEYOR RAIL RC(L) 1
10 SL-6041092-TN SCREW 4
11 400-00812 RAIL GUIDE SHAFT 2
12 SM-8040602-TP SCREW M4X0.7 L=6 2
13 E2275-725-000 SAFETY BAR 1
14
#03
E4075-725-000 SAFETY BAR(E) 1
15 SL-4040841-SE SCREW M4 L=8 4
16 E2124-721-000 PWB GUIDE PLATE RA 4
17
#03
E2124-721-000 PWB GUIDE PLATE RA 10
18 E2125-721-000 PWB GUIDE PLATE RB 2
19 #03 E2125-721-000 PWB GUIDE PLATE RB 1
20 SL-6030892-TN SCREW M3 L=8 6
21
#03
SL-6030892-TN SCREW M3 L=8 11
22 E2111-715-0A0 CONVEYOR PULLEY ASM. 4
23 WP-0430800-SC WASHER M4 4
24 SM-4040855-SC SCREW 4
25 SM-1030601-SC SCREW M3 L=6 5
26 400-00835 RAIL GUIDE R 1
27
#03
400-01056 RAIL GUIDE R(L) 1
28 E4265-729-000 CONVEYOR BELT GUIDE (L) 1
29
#03
E4365-729-000 CONVEYOR BELT GUIDE (E) 1
30 SL-6041692-TN SCREW M4 L=16 8
31
#03
SL-6041692-TN SCREW M4 L=16 10
32 400-13196 Y PUSHER GUARD 1
33 E2111-715-0A0 CONVEYOR PULLEY ASM. 2
34 WP-0430800-SC WASHER M4 2
35 SM-4040855-SC SCREW 2
36 E2089-721-0A0 CONVEYOR PULLEY B ASM. 4
37 E2055-721-000 PULLEY SPACER 4
38 SM-4042501-SC SCREW M4X0.7 L=25 4
39 WP-0430801-SC WASHER 4.3X9X0.8 4
40 WS-0410002-KN SPRING WASHER 4
41 NM-6040001-SC NUT M4X0.7 TYPE1 4
42 400-00839 DRIVE PULLEY R ASM. 1
43 400-00840 DRIVE PULLEY R (1)
44 E2160-721-000 PULLEY FLANGE (1)
45 SL-6030892-TN SCREW M3 L=8 (3)
46 E3931-750-000 PULLEY WASHER 2
47 E2160-721-000 PULLEY FLANGE 1
48 SL-6030892-TN SCREW M3 L=8 3
49 SB-8160001-00 BEARING 1
50
#01
SB-8160001-00 BEARING 2
51 400-00838 RAIL PLATE RL 1
52
#01
400-01063 RAIL PLATE RL(L) 1
53
#02
E4070-725-000 RAIL PLATE RL(E) 1
54 400-00828 CONVEYOR RAIL 1
55
#02
400-01839 CONVEYOR RAIL(E) 1
56 SL-6031492-TN SCREW M3 L=14 4
57 SM-6040802-TN SCREW 4
58
#01
SM-6040802-TN SCREW 8
59 SL-6041092-TN SCREW 2
60 SL-6042092-TN SCREW M4 L=20 3
61 HX-0029400-00 FIXED BASE 1
62 SM-6042002-TN BOLT 1
63 E2111-715-0A0 CONVEYOR PULLEY ASM. 3
- -
37. PWB CONVEYOR COMPONENTS (4)
1 9
1 8
1 7
5 5
4 5
5 4
3 3
3 2
1 5
3 3
1 5
1 3 1 4
3 3
1 3 1 4
1 6
2 2
2 1
2 0
2 5
2 4
2 3
2 2
2 1
2 0
2 2
2 1
2 0
2 2
2 1
2 0
2 5
2 4
2 3
2 5
2 4
2 3
2 5
2 4
2 3
2 9
3 0
3 4
3 4
3 1
3 5
2 8
3 4
3 0
2 9
2 8
3 5
3 1
3 4
6 7
2 6 2 7
5 1
5 2 5 3
4 4 4 5
5 8 5 9
5 8 5 9
4 2 4 3
4 6
4 7
4 2 4 3
5 8 5 9
5 8 5 9
4 4 4 5
A
A
B
B
3 9 4 1
3 6 3 8
4 8 5 0
3 9 4 1
1 3
8 1 0
5 6 5 7
1 1 1 2
1 1 1 2
1 3 1 4
5 6 5 7 5 6 5 7
1 3 1 4
1 1 1 2
6 0
6 1
6 1
6 0
3 2
- -
