- - REF.NO NOT E P A RT NO D E S C R I P T I O N Q ty 1 40 0 - 00 8 4 3 R AIL PLAT E RR 1 2 #01 400-01061 R AIL P LAT E RR( L) 1 3 #02 400-01850 R AIL P LAT E RR( E) 1 4 40 0 - 00 8 2 8 C ONVEY O R RAI L 1 5 #02 400-01…
- -
37. PWB CONVEYOR COMPONENTS (4)
1 9
1 8
1 7
5 5
4 5
5 4
3 3
3 2
1 5
3 3
1 5
1 3 1 4
3 3
1 3 1 4
1 6
2 2
2 1
2 0
2 5
2 4
2 3
2 2
2 1
2 0
2 2
2 1
2 0
2 2
2 1
2 0
2 5
2 4
2 3
2 5
2 4
2 3
2 5
2 4
2 3
2 9
3 0
3 4
3 4
3 1
3 5
2 8
3 4
3 0
2 9
2 8
3 5
3 1
3 4
6 7
2 6 2 7
5 1
5 2 5 3
4 4 4 5
5 8 5 9
5 8 5 9
4 2 4 3
4 6
4 7
4 2 4 3
5 8 5 9
5 8 5 9
4 4 4 5
A
A
B
B
3 9 4 1
3 6 3 8
4 8 5 0
3 9 4 1
1 3
8 1 0
5 6 5 7
1 1 1 2
1 1 1 2
1 3 1 4
5 6 5 7 5 6 5 7
1 3 1 4
1 1 1 2
6 0
6 1
6 1
6 0
3 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00843 RAIL PLATE RR 1
2
#01
400-01061 RAIL PLATE RR(L) 1
3
#02
400-01850 RAIL PLATE RR(E) 1
4 400-00828 CONVEYOR RAIL 1
5
#02
400-01839 CONVEYOR RAIL(E) 1
6 SB-8160001-00 BEARING 1
7
#01
SB-8160001-00 BEARING 2
8 400-00841 SUPPORT PLATE S 1
9
#01
400-01069 SUPPORT PLATE RR(L) 1
10
#02
400-01852 SUPPORT PLATE RR(E) 1
11 SM-4040855-SC SCREW 3
12
#03
SM-4040855-SC SCREW 6
13 E2111-715-0A0 CONVEYOR PULLEY ASM. 4
14
#02
E2111-715-0A0 CONVEYOR PULLEY ASM. 6
15 SM-4040855-SC SCREW 2
16 SM-4042501-SC SCREW M4X0.7 L=25 1
17 WP-0430801-SC WASHER 4.3X9X0.8 1
18 WS-0410002-KN SPRING WASHER 1
19 NM-6040001-SC NUT M4X0.7 TYPE1 1
20 E2089-721-0A0 CONVEYOR PULLEY B ASM. 4
21 E2055-721-000 PULLEY SPACER 4
22 SM-4042501-SC SCREW M4X0.7 L=25 4
23 WP-0430801-SC WASHER 4.3X9X0.8 4
24 WS-0410002-KN SPRING WASHER 4
25 NM-6040001-SC NUT M4X0.7 TYPE1 4
26 SM-6041002-TN BOLT 4
27
#01
SM-6041002-TN BOLT 8
28 400-00840 DRIVE PULLEY R 1
29 E2160-721-000 PULLEY FLANGE 1
30 SL-6030892-TN SCREW M3 L=8 3
31 SL-6030892-TN SCREW M3 L=8 6
32 E2111-715-0A0 CONVEYOR PULLEY ASM. 2
33 WP-0430800-SC WASHER M4 3
34 E3931-750-000 PULLEY WASHER 4
35 E2160-721-000 PULLEY FLANGE 2
36 400-00983 RAIL STAND RR 1
37
#01
400-01066 RAIL STAND RR(L) 1
38
#02
E4024-725-000 RAIL STAND RR(E) 1
39 E2009-725-000 GUIDE SHAFT 2
40
#01
E2209-725-000 GUIDE SHAFT 4
41
#02
E4009-725-000 GUID SHAFT(E) 4
42 SL-6051292-TN BOLT 2
43 #03 SL-6051292-TN BOLT 4
44 SL-6052042-TN SCREW 2
45
#03
SL-6052042-TN SCREW 4
46 SL-6052092-TN SCREW 2
47 SL-6052092-TN SCREW 2
48 400-00982 RAIL STAND RL 1
49
#01
400-01065 RAIL STAND RL(L) 1
50
#02
E4023-725-000 RAIL STAND RL 1
51 SL-6042092-TN SCREW M4 L=20 4
52 E4274-729-000 SUPPORT PLATE C(L) 1
53
#03
E4074-725-000 SUPPORT PLATE C(E) 1
54 SL-6031492-TN SCREW M3 L=14 4
55 SL-6041092-TN SCREW 2
56 WP-0430800-SC WASHER M4 3
57
#03
WP-0430800-SC WASHER M4 6
58 WP-0501046-SC WASHER 5 X 14 X 1 4
59
#03
WP-0501046-SC WASHER 5 X 14 X 1 8
60 CM-3002000-03 ATTENTION LABEL 2
61 401-05880 CRUSH HAZARD LABEL (50) 2
- -

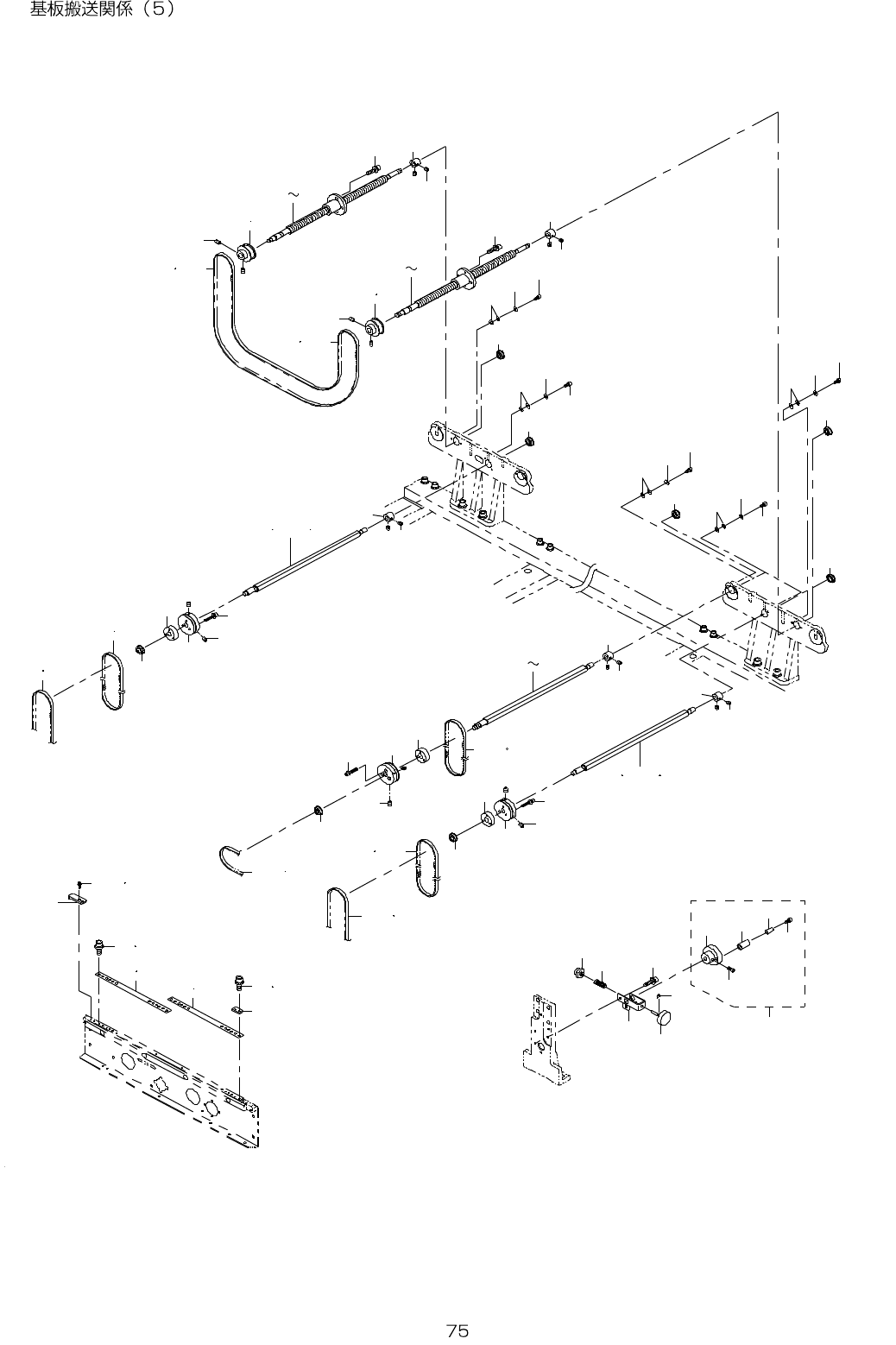

38. PWB CONVEYOR COMPONENTS (5)
5 2
5 7
5 6
9
5 7
9
2 2
2 2
2 5
2 3
2 4
1 4 1 6
5 2
1 4 1 6
1 7 1 9
2 2
2 5
2 3
4 9 5 0
2 7 2 8
7
5
2 6
2 6
8
5 6
1 0 1 1
8
1 8 2 0 2 1
6
5 4
2 4
1 2 1 3
5 4
1 2 1 3
1 0 1 1
5 3
5 7
5 6
2 2
2 5
2 3
2 4
2 6
1 8 2 0 2 1
3 0
5 5
3 1
3 3
3 7
3 8
3 4
4 2
4 4
4 0
4 1
3 4
1 2
5 1
4 5 4 6
2 9 3 2
2 9 3 2
4 7 4 8
2 2
3 1
5 5
3 0
2 2
3 1
5 5
3 0
6
7
5
5 3
3 5
3 6
3 9
4 3
1 2
3 4
4 7 4 8
5 8
