- - REF.NO NOT E P A RT NO D E S C R I P T I O N Q ty 1 40 0 - 00 8 6 5 R AIL SUPP O RT 1 2 #01 400-01067 R AIL S UPP ORT( L ) 1 3 #02 E4018 - 7 25 -00 0 R AIL S UPP ORT( E) 1 4 #04 400-80768 R AIL S UPP ORT( L W ) 1 5…
- -

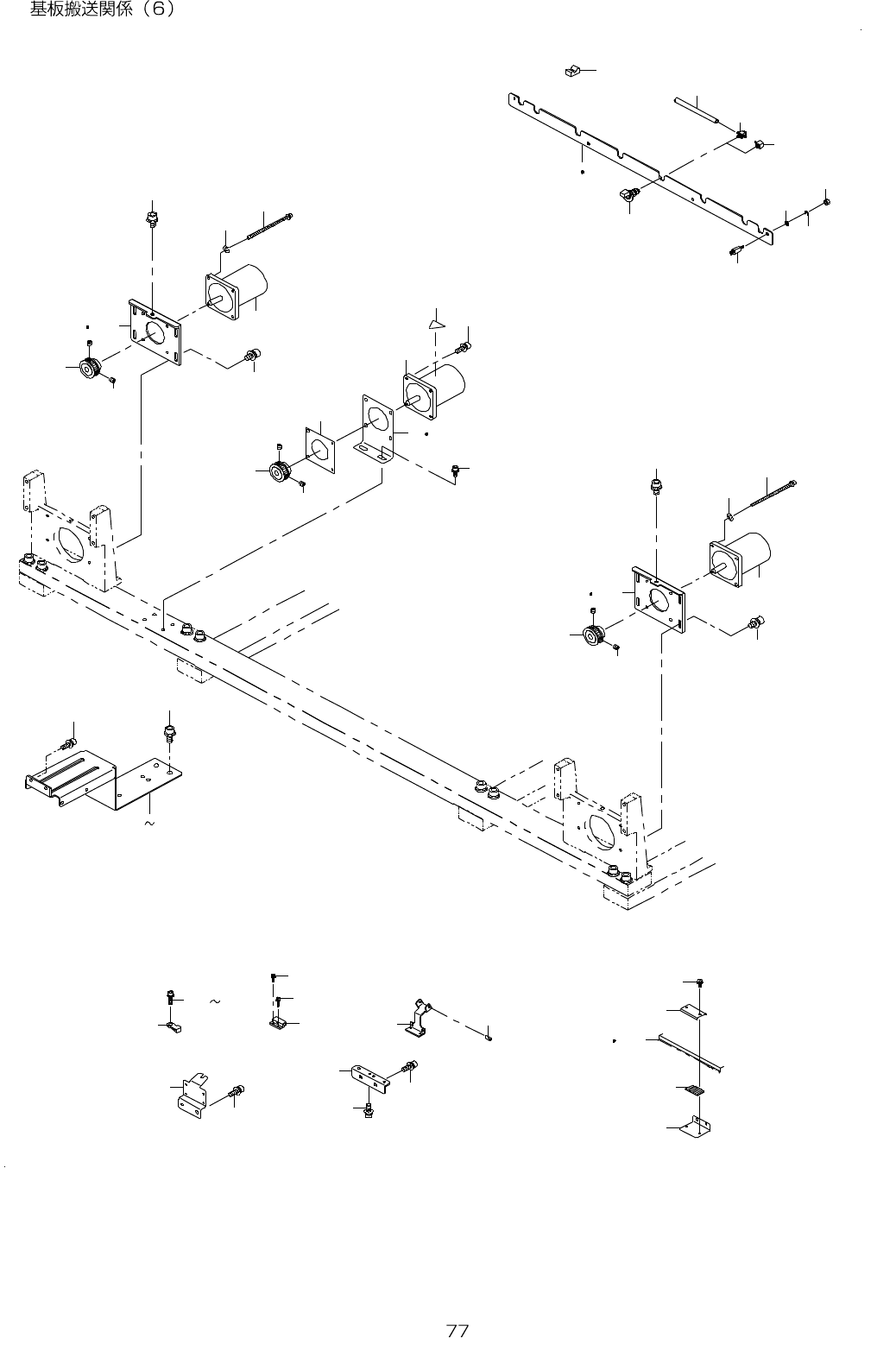

39. PWB CONVEYOR COMPONENTS (6)
8
5 4
5 1
1 2
1 4
5 6
7
9
1 0
1 1
2 1
2 0
1 3
1 6 1 9
1 5
1 7
1 8
3 4 3 8
5 2
5 6
3 9
4 0
4 1
4 3
4 2
4 4
4 8 4 9
4 7
4 6
4 5
2 4
2 5
2 6
2 7
2 2 2 3
2 9
3 0
2 8
3 2
3 1
3 3
5 0
4 0
2 1
2 0
1 3
1 6 1 9
1 5
1 4
1 7
1 8
5 5
5 3
1 4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00865 RAIL SUPPORT 1
2
#01
400-01067 RAIL SUPPORT(L) 1
3
#02
E4018-725-000 RAIL SUPPORT(E) 1
4
#04
400-80768 RAIL SUPPORT(LW) 1
5 400-00868 MOTOR BRAKET C 1
6 #03 400-01009 MOTOR BRAKET C(L) 1
7 400-00869 MOTOR ADJUST PLATE 1
8 E9431-729-0A0 CENT MOTOR ASM. 1
9 SL-6041242-TN BOLT 4
10 400-00870 MOTOR PULLEY C 1
11 SM-8030602-TP SCREW M3X0.5 L=6 3
12 SL-6051292-TN BOLT 2
13 E9431-729-0A0 CENT MOTOR ASM. 2
14 SL-6040842-TN SCREW M4 L=8 8
15
#01
WS-0510002-KN SPRING WASHER 8
16 400-30592 MOTOR BRACKET A 2
17 400-00870 MOTOR PULLEY C 2
18 SM-8030602-TP SCREW M3X0.5 L=6 4
19 #01 400-46034 MOTOR BRACKET S(6) 2
20 SL-6051092-TN BOLT 8
21 SL-6051492-TN BOLT 2
22 E2120-725-000 PUSHER PLATE 1
23
#01
E4055-725-000 PUSHER PLATE(E) 1
24 E2165-721-000 PUSHER SPACER 4
25 WP-0430801-SC WASHER 4.3X9X0.8 4
26 WS-0410002-KN SPRING WASHER 4
27 NM-6040001-SC NUT M4X0.7 TYPE1 4
28 400-00885 Y_PUSHER_ASM 5
29 PJ-0460525-01 ELBOW 1
30 PJ-0460590-05 CONNECTOR 4
31 HX-0029400-00 FIXED BASE 1
32 BT-0400251-EA TUBE HOSE, BLUE 0.3
33 HX-0034400-00 HARNESS PARTS 3
34 SL-6030692-TN SCREW M3 L=6 3
35
#01
SL-6030692-TN SCREW M3 L=6 2
36
#01
SL-6031092-TN SCREW 1
37
#02
SL-6031092-TN SCREW 2
38
#02
SL-6030692-TN SCREW M3 L=6 1
39 400-00875 WAIT SENSOR BRACKET 1
40 SL-6041092-TN SCREW 2
41
#03
400-19162 WAIT SENSOR BRACKET A 1
42
#03
E4092-725-000 WEIGHT SENSOR BRACKET B(E) 1
43 SL-6030592-TN SCREW M3 L=5 2
44 400-00880 FIXED BELT 1
45 400-00881 ADJUST BELT CLAMP 1
46 SL-6030892-TN SCREW M3 L=8 2
47 400-00882 ADJUST BELT PLATE 1
48
#03
400-01072 PIN ADJUST BELT(L) 1
49 400-00879 PIN ADJUST BELT 1
50
#01
HD-0015200-20 SIDE VIEW UNIT 1
51 SL-6041092-TN SCREW 2
52 E2090-725-000 WEIGHT SENSOR BLOCK 1
53 SL-6031492-TN SCREW M3 L=14 2
54 SL-6051092-TN BOLT 2
55 CM-3003000-02 LABEL2 (25) 1
56 SL-6031092-TN SCREW 1
- -

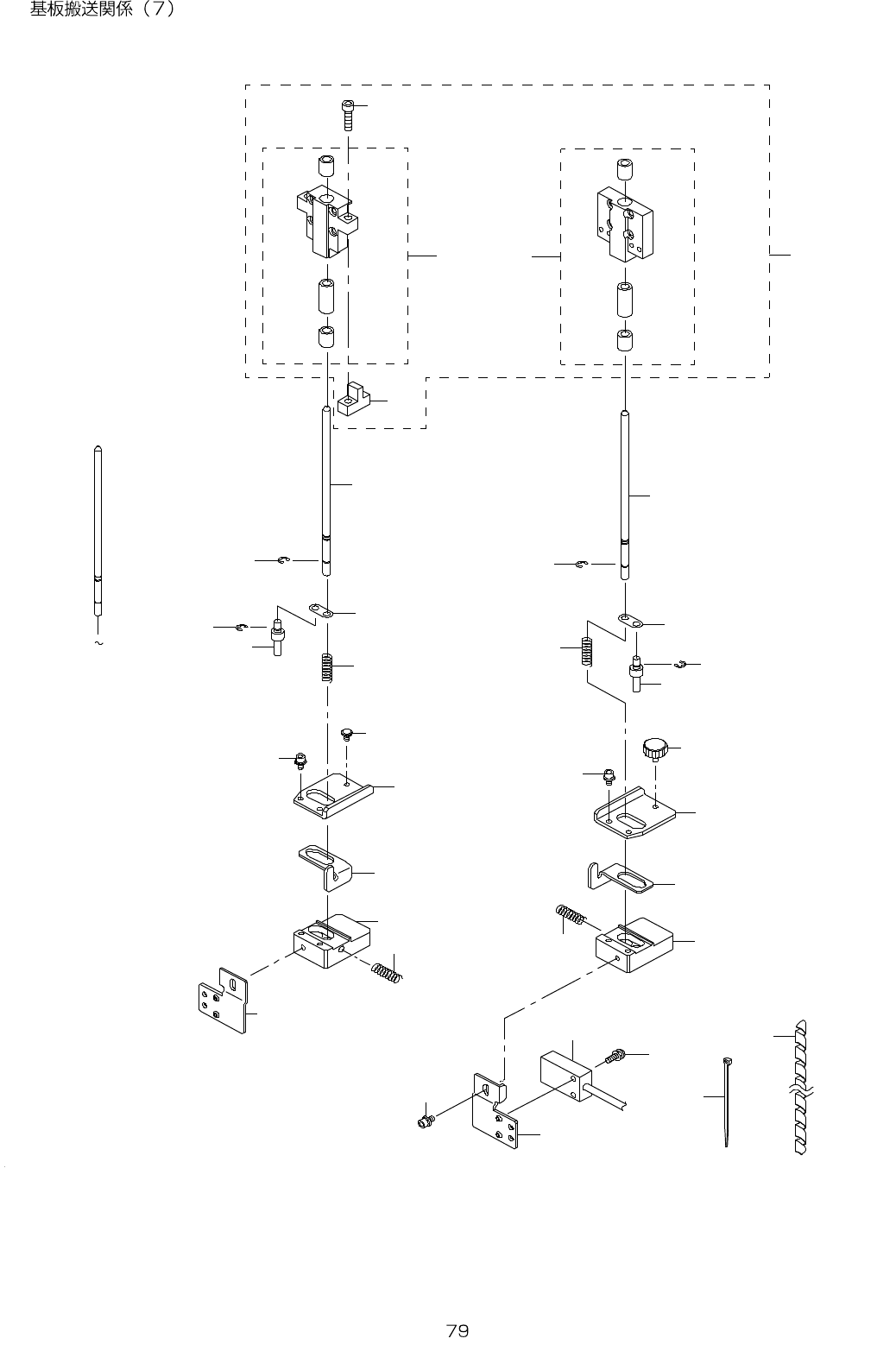

40. PWB CONVEYOR COMPONENTS (7)
5
2 5
2 3
2 3
2 6
9
1 0
1
1 1
1 8
1 9
6
7
8
8
6
2 0
2 2
2 4
1 2
1 3
1 4
1 5
1 6
1 7
2 1
1 7
1 2
2 4
1 4
1 3
2 7 4 4
2
3
4
4 5
4 6
