MAIN UNIT

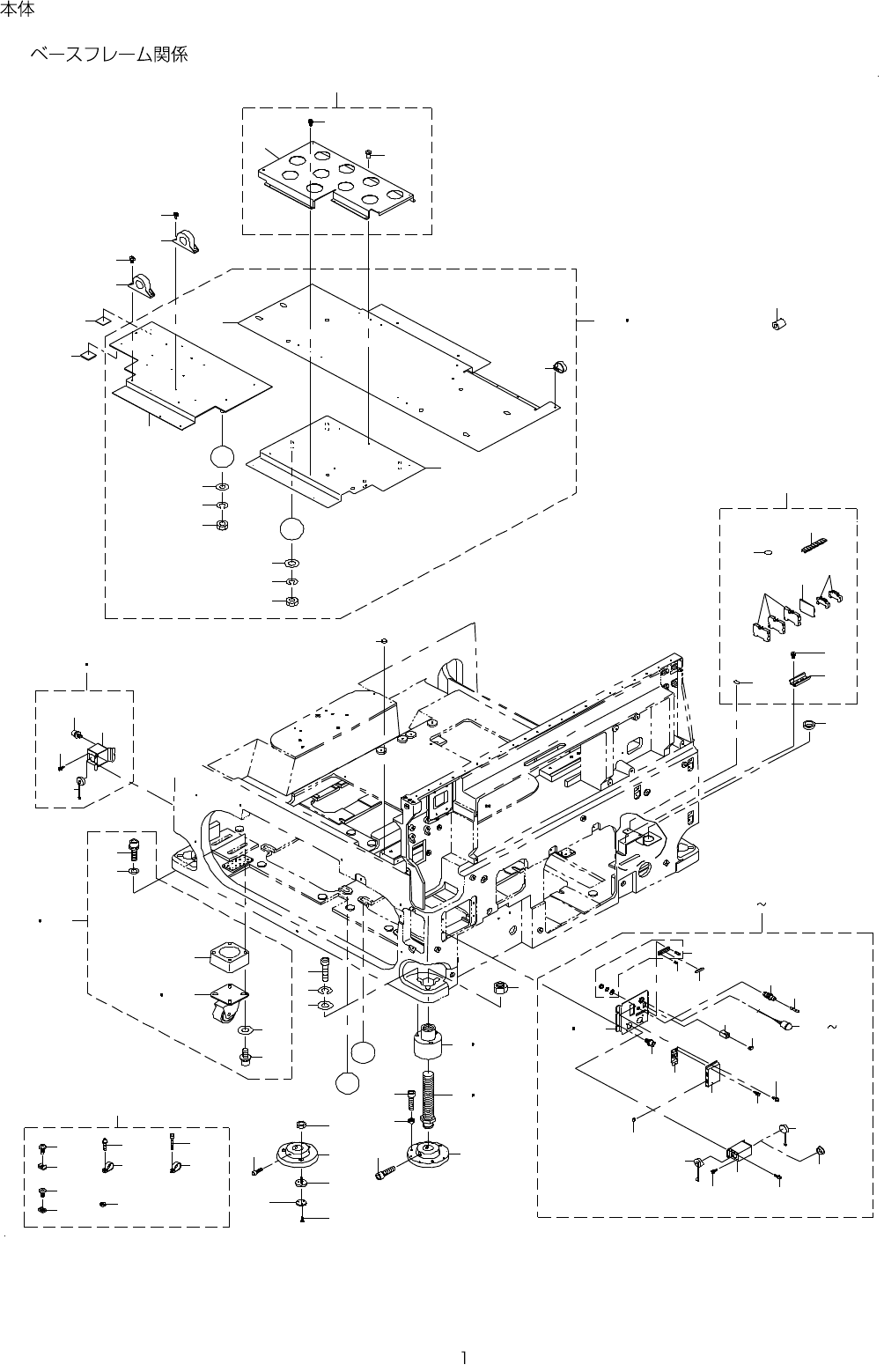

1. BASE FRAME COMPONENTS
1 2
3
4
5
6 7
8
9
1 0
2 2 2 3
2 5
2 4
2 6
2 7
2 8
2 0 2 1
3 2
3 3
3 4
A
A
3 5
B
B
3 8
3 7
3 6
3 9
4 2
4 4
4 3
1 2
1 3
1 4
1 5
1 4
1 6
1 7
1 8
1 9
1 1
5 3
5 0
5 1
4 6
5 6
5 9
5 7
4 8
4 9
5 2
4 7
4 5
9 8
5 8
1 0
5 4 5 5
4 1
8 2
8 1
7 3
8 4
6 8
6 9
6 4 6 6
7 0
7 4
7 2
7 5
7 7
7 6
7 9 8 3
7 1
8 5
6 0 6 3
6 7
2 9 3 0
4 0
8 6
8 6
8 7
8 7
8 8
8 9
9 0
9 1
9 3
9 2
3 1
9 4
9 4
9 6
9 5
9 7
6 8
6 8
7 8
8 0
- -

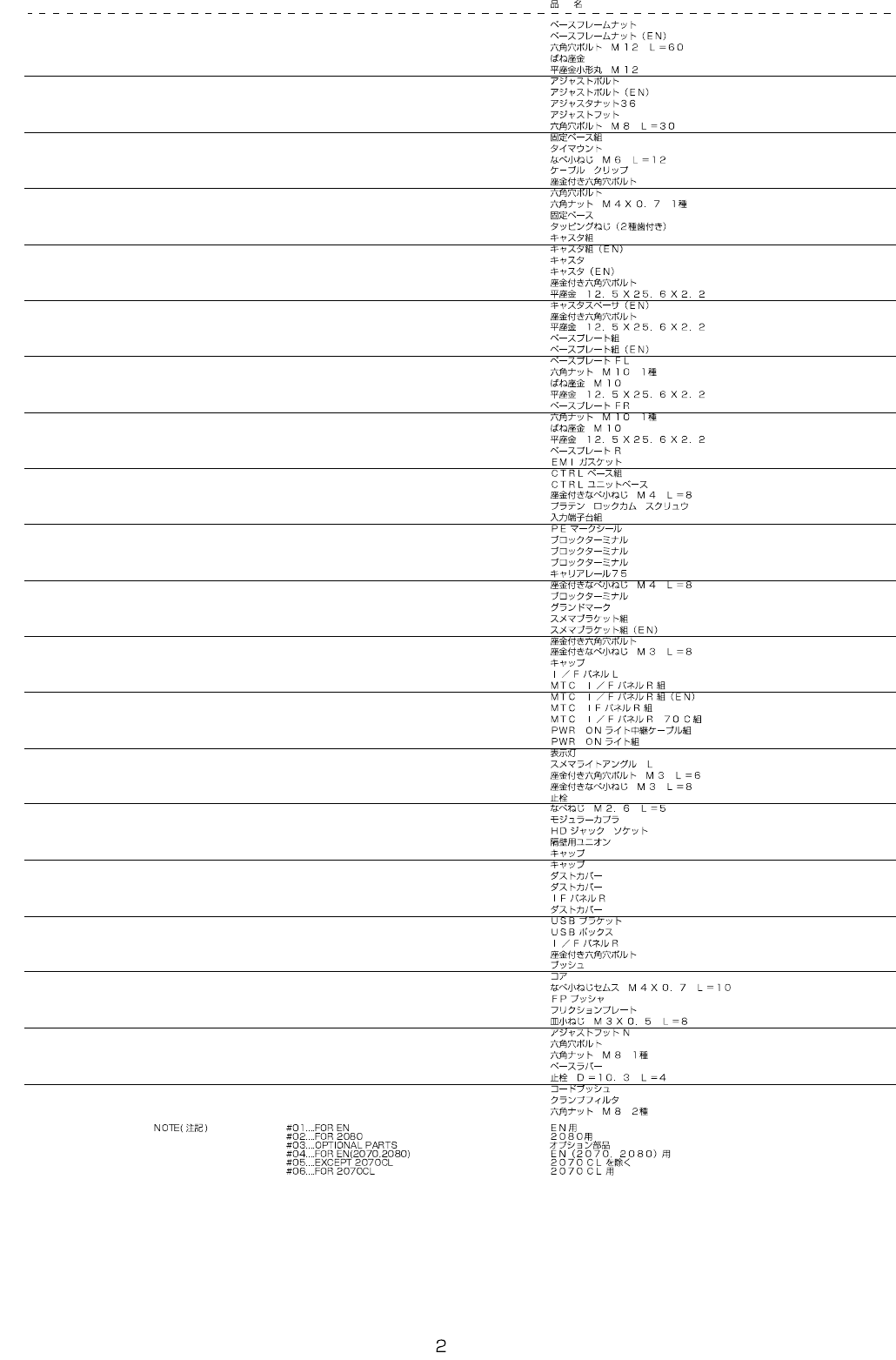

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00519 BASEFRAME NUT 4
2 #01 400-00535 BASEFRAME NUT(EN) 4
3 SM-6126002-TN SCREW M12 L=60 12
4 WS-1220002-KN SPRING WASHER 12
5 WP-1302500-SC WASHER 12
6 400-00403 ADJUST BOLT 4
7
#01
400-00404 ADJUST BOLT(EN) 4
8 E1044-729-000-A ADJUSTER NUT 36 4
9 E1035-729-000 ADJUSTER FOOT 4
10 SM-6083002-TN SCREW M8 L=30 24
11 400-00418 CLAMP BASE ASSY 1
12 HX-0055700-00 TIE MOUNT (4)
13 SM-4061201-SC SCREW M6 L=12 (4)
14 HX-0015000-0R CABLE CLAMP (2)
15 SL-6042092-TN SCREW M 4 L=20 (1)
16 SM-6043002-TN SCREW (1)
17 NM-6040001-SC NUT M4X0.7 TYPE1 (2)
18 HX-0029400-00 FIXED BASE (30)
19 ST-4040651-SN SCREW M4 X 6 (30)
20 400-01551 CASTER ASSY 1
21
#01
400-01597 CASTER ASSY(EN) 1
22 400-00405 CASTER (4)
23
#01
400-00449 CASTER(EN) (4)
24 SL-6103042-TN BOLT (16)
25 WP-1252210-SC WASHER 12.5X25.6X2.2 (16)
26
#01
400-00406 CASTER SPACER(EN) (4)
27
#01
SL-6102042-TN SCR EW (16)
28 #01 WP-1252210-SC WASHER 12.5X25.6X2.2 (16)
29 400-50222 BASE PLATE ASSY 1
30 #04 400-01598 BASE PLATE ASSY(EN) 1
31 400-46554 BASE PLATE FL (1)
32 NM-6100001-SC NUT M10X1.5 (4)
33 WS-1020002-KN SPRING WASHER M10 (4)
34 WP-1252210-SC WASHER 12.5X25.6X2.2 (4)
35 400-00491 BASE PLATE FR (1)
36 NM-6100001-SC NUT M10X1.5 (4)
37 WS-1020002-KN SPRING WASHER M10 (4)
38 WP-1252210-SC WASHER 12.5X25.6X2.2 (4)
39 400-00492 BASE PLATE R (1)
40 HX-0015000-0R EMI GASKET (2.7)
41 400-49770 CTRL BASE ASM. 1
42 400-46557 CTRL UNIT BASE (1)
43 SL-4040891-SC SCREW M4 L=8 (4)
44 E1038-871-000 PLATEN LOCK CAM SCREW (3)
45 400-01555 INPUT TERMINAL ASSY 1
46 CM-2001000-01 PE MARK LABEL (1)
47 HK-0694900-0A BLOC K TERMINAL (1)
48 HK-0694900-00 BLOC K TERMINAL (1)
49 HK-0694500-10 BLOC K TERMINAL (3)
50 400-00530 CARRIER RAIL 75 (1)
51 SL-4040891-SC SCREW M4 L=8 (2)
52 HK-0691900-0B BLOC K TERMINAL (2)
53 100-04109 GROUND MARK (2)
54 400-01556 SMEMA BR ASSY 1
55
#01
400-15596 SMEMA BR ASSY(EN) 1
56 SL-6061292-TN SCREW (2)
57 SL-4030881-SC SCREW M3 L=8 (4)
58 #01 HK-0429901-4A CAP (1)
59 400-00497 I/F PANEL L (1)
60 400-49771 MTC I/F PANEL R ASM. 1
61
#01
400-52397 MTC I/F PANEL R ASM.(EN) 1
62
#02
400-01557 MTC IF PANEL R ASSY 1
63
#06
401-00370 MTC I/F PANEL R 70C ASM 1
64
#01
E9222-729-HA0 PWR ON LIGHT R ELAY CABLE ASM. (1)
65 E9221-729-0A0 PWR ON LIGHT ASM. (1)
66
#01
HE-00045 00-00 INDICATION LIGHT (1)
67 E1026-729-000 SMEMA LIGHT ANGLE L (1)
68 SL-6030692-TN SCREW M 3 L=6 (8)
69 SL-4030881-SC SCREW M3 L=8 (8)
70
#05
PX-9500010-00 PLUG (1)
71 #05 SM-4860501-SB SCREW M2.5 L=5 (2)
72 HK-0651200-80 MODULAR KAPLA (1)
73 #05 EA-9635B00-00 SOCKET (2)
74 #05 PJ-2300062-00 UNION (1)
75
#01
HK-04299 01-4A CAP (1)
76
#01
HK-04299 00-7A CAP (1)
77
#01
HK-05289 05-0B DUST COVER (1)
78
#01
HX-00667 00-00 DUST COVER (2)
79 400-46602 IF PANEL R (1)
80
#01
HX-00660 00-00 DUST COVER (1)
81 400-46640 USB BRACKET (1)
82 400-46641 USB BOX (1)
83
#02
400-00498 I/F PANEL R (1)
84 SL-6061292-TN SCREW (4)
85 #06 HX-0032600-0B BUSH (1)
86 #01 HN-0015500-00 COR E 2
87 #02 SL-4041091-SC SCREW M 4 L=10 4
88 #03 400-13307 FP PUSHER 12
89
#03
400-13306 FLICTION PLATE 12
90
#03
SM-1030801-SC SCREW M3 L=8 36
91
#03
E6600-729-000 ADJUST FOOT N 4
92
#03
SM-6082502-TN BOLT 12
93
#03
NM-6080001-SC NUT M8X1.25 12
94 400-52570 BASE RUBBER 2
95 TA-1030402-R0 R UBBER PLUG D=10.3 L=4 2
96 HX-0018800-0F COR D BUSH 1
97 HN-0014900-0A CLAMP FILTER 1
98 NM-6080002-SC NUT M8 12
- -

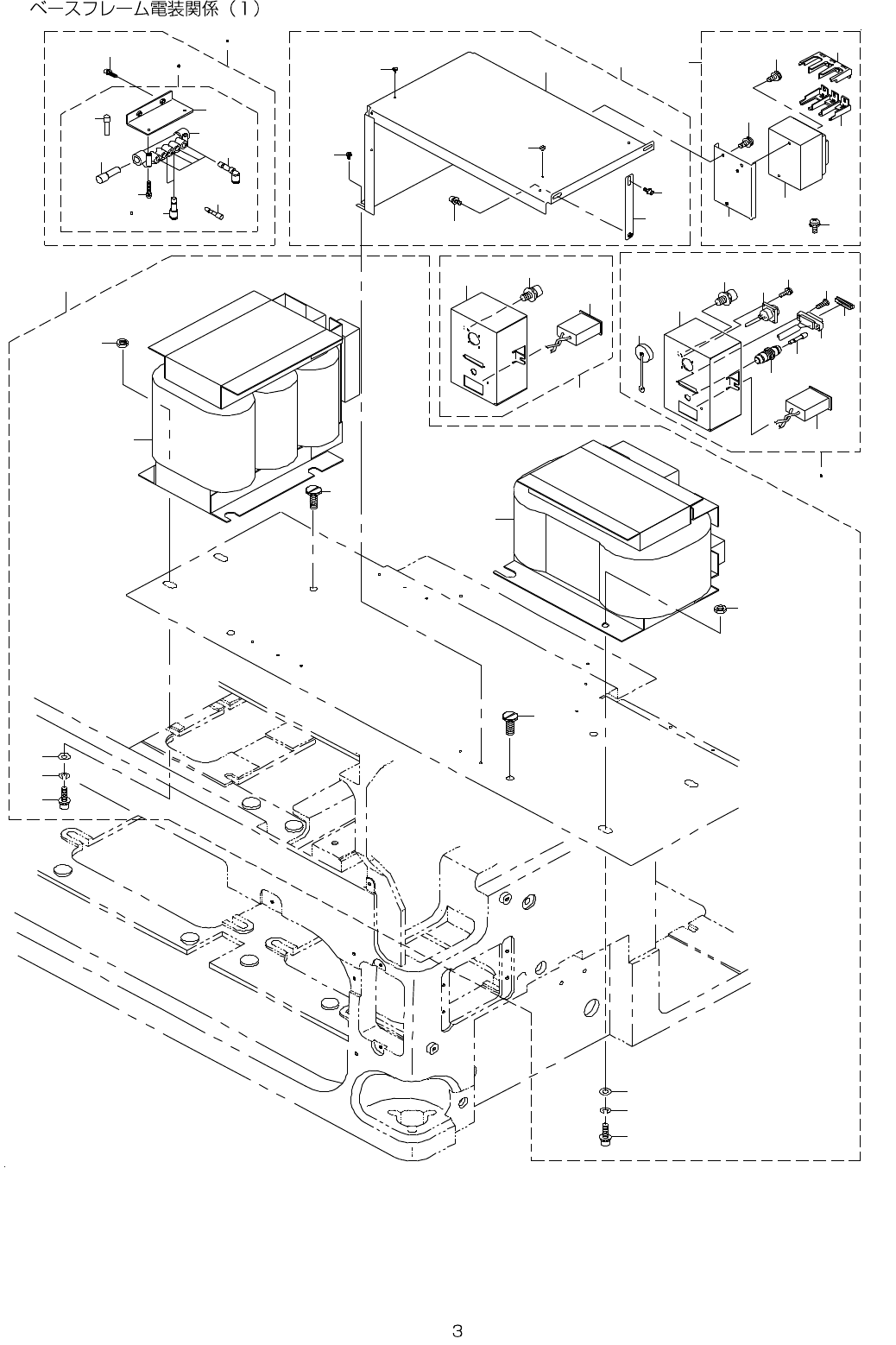

2. BASE FRAME ELECTRIC APPARATUS COMPONENTS (1)
1 1
7
8
9
6
5
1 0 1 2
3 4
1 4
2 1
2 2
2 2
1 8
1 8
1 6
1 7
1 7
1 6
2 7
2 8
2 6
2 5
2 9
2 1
1 2
4 8
4 4
4 5
4 3
4 9
4 6
4 6
1 5
4 7
2 3
2 0
3 8
4 0
4 1
3 9
4 2
3 2
3 7
3 3
3 6
3 5
3 4
3 0 3 1
5 3
5 1
5 2
5 0
1 3
1 9
2 4
2 4
