KE-2070_KE-2080_KE-2080R-Rev14 - 第99页
- - RE F .NO N O TE PART NO D E S C R I P T I O N Q t y 1 #01 400-02343 BU LOCK CABLE ASM(EN) 1 2 #01 400-02241 BU LOCK SENS ASM 1 3 #01 400-00970 BU ST O PER(EN) 1 4 #01 SM- 60 51 002-TN BO L T 2 5 #01 PA - 150 1011-0…
- -
46. PWB CONVEYOR COMPONENTS (13)
6
7
8
5
1 0
9
1 5
1 6
1 7
1
2
3
4
1 3
1 2
1 4
1 1
1 8
1 9
2 0
- -

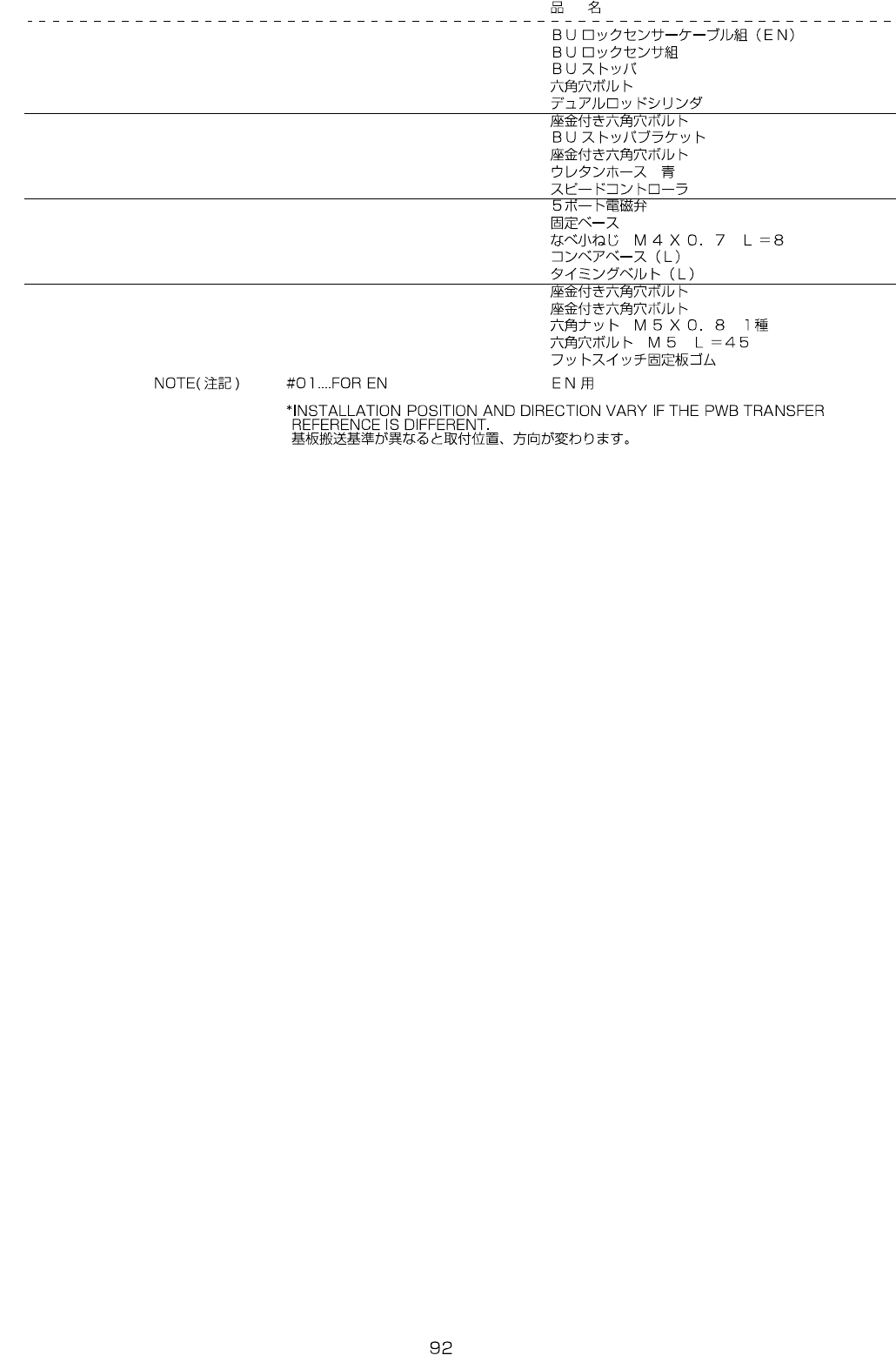

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-02343 BU LOCK CABLE ASM(EN) 1
2
#01
400-02241 BU LOCK SENS ASM 1
3
#01
400-00970 BU STOPER(EN) 1
4
#01
SM-6051002-TN BOLT 2
5
#01
PA-1501011-00 DUAL ROD CYLINDER 1
6
#01
SL-6040892-TN BOLT 2
7
#01
400-00971 BU STOPER BRACKET(EN) 1
8
#01
SL-6051492-TN BOLT 4
9
#01
BT-0400251-EA TUBE HOSE, BLUE 2
10
#01
PC-0105080-00 SPEED CONTROLLER 2
11
#01
PV-1502090-00 5 PORT SOLENOID VALVE 1
12
#01
HX-0029400-00 FIXED BASE 4
13
#01
SM-4040801-SC SCREW M4X0.7 L=8 4
14 400-01024 CONVEYOR BASE(L) 1
15 400-01023 TIMING BELT(L) 1
16 SL-6051492-TN BOLT 2
17 SL-6051492-TN BOLT 2
18 NM-6050001-SC NUT M5X0.8 TYPE1 4
19 SM-6054502-TN SCREW M5 L=45 4
20 M1008-511-000 FOOT SWITCH FIXING PLATE 4
- -

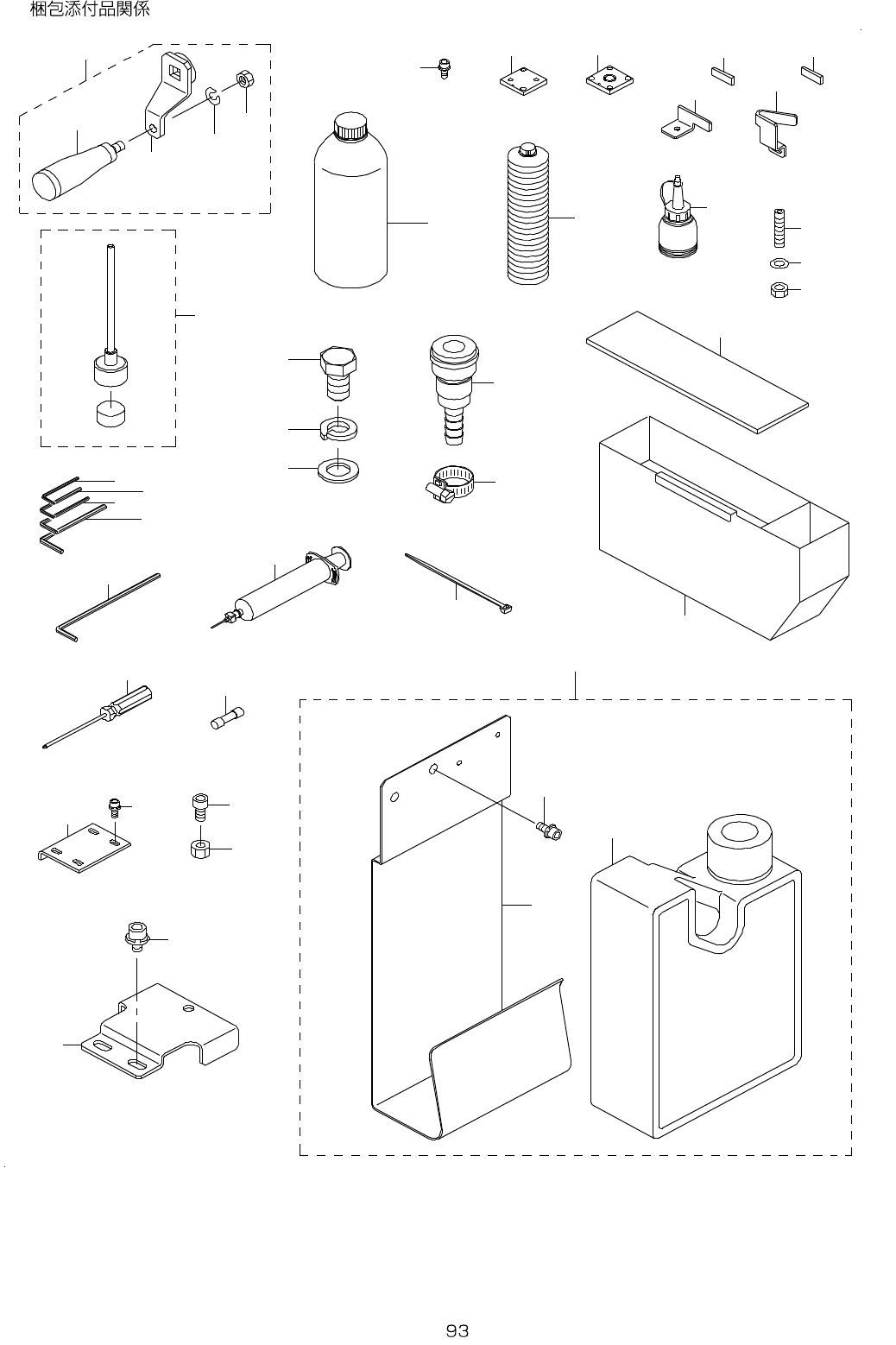

47. ACCESSORIES PART COMPONENTS
3 0
3 1
2 6
2 2
2 3
9
2 9
1 7
1 6
1 8
1 5
1 4
1 9
2 4
2 5
2 7
3 3
3 6
3 7
3 8
3 9
8
3 5
4 1
2 8
3
2
1
1 0
3 2
2 0
4 0
2 1
3 4
7
6
5
4
1 3
1 2
1 1
4 2
4 5
4 4
4 3
