3-32 3 Periodic maintenance items 2.6 RS head How to lower RS head/nozzle shafts Maintenance of the RS head requires lowering the nozzle shafts manually in sequence as for example in "2.6.1 Inspecting and replacing …
3-31
3
Periodic maintenance items
2.5 Feeder exchange carriage
2.5.1 Cleaning/lubricating carriage cam followers
1
Detach feeder exchange carriage.
Unclamp and lower the feeder exchange
carriage with the CLAMP ON/OFF switch and
detach it from the machine.
2
Clean the carriage cam followers.
Use a lint-free cloth to wipe off the grease
and dirt on the cam followers (3 places per
carriage).
53333-N9-00
3
Apply grease to the cam followers.
Apply a uniform coat of the specified grease
(NSL) by hand to the cam followers.
Cleaning the carriage cam followers
Step 2
Cam follower at rear of carriage
(one each on right and left sides)
Cam follower at front of carriage
(one on left side)
3-32
3
Periodic maintenance items
2.6 RS head
How to lower RS head/nozzle shafts
Maintenance of the RS head requires lowering the nozzle shafts manually in sequence as for example in "2.6.1
Inspecting and replacing the air filters" and "3.2.1 Inspecting/cleaning nozzle shaft tip". This method is
described below.
1
Press down Z-axis of RS head.
The Z-axis units are located on both sides of RS head unit for lowering nozzle shafts. The nozzle shafts
under Z-axis can be lowered by pressing down Z-axis manually.
2
Change the nozzle shaft to be lowered.
Move a nozzle shaft under Z-axis by gripping and turning the rotary unit’s label ring (part on which the
nozzle shaft numbers are printed) located on the bottom of RS head.
c
CAUTION
Make sure that all nozzle shafts have returned to upper end after having lowered the nozzle shafts manually,
n
NOTE
The rotary unit can also be turned by turning the R-axis gear manually.
R-axis gear

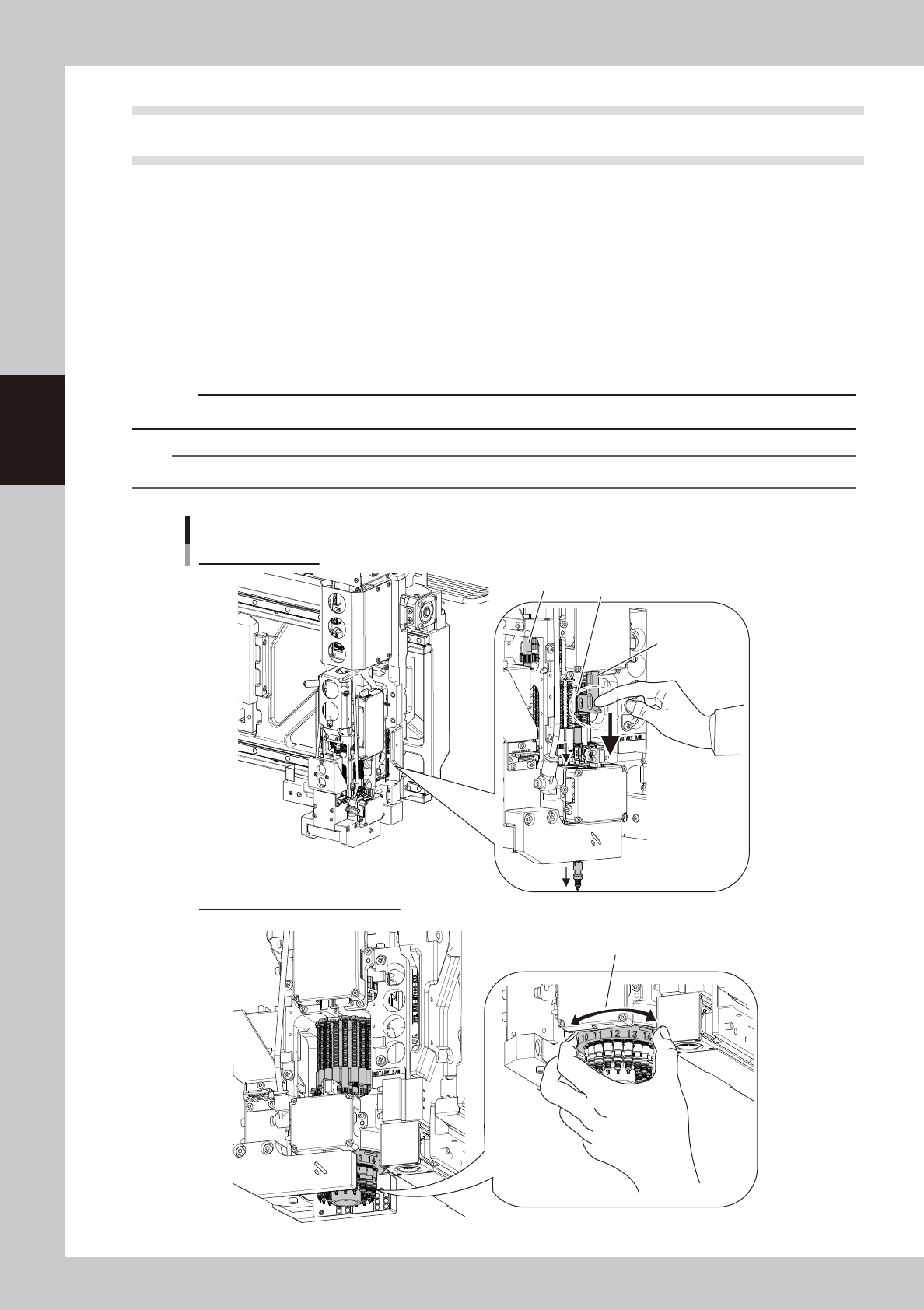

Changing nozzle shaft to be lowered
Lowering RS head/nozzle shaft
Z-axis unit of
RS head
*Also located on
the opposite side
Press down Z-axis on both sides of
RS head to lower nozzle shaft.
Lowering nozzle shaft
Grip the label ring (part on which the nozzle
numbers are printed) and turn the rotary unit.
533D6-N9-00
3-33
3
Periodic maintenance items
2.6.1 Inspecting and replacing the air filters
The filters should generally be inspected every month, although this depends on the supply air condition and
the operating time. The filters for the RS head cannot be reused. Replace the filters if contaminated.
Note that using filter insertion tool is convenient to replace multiple filters at once. The following describes
how to replace filters with the tool.
TIP
See "How to check for clogged nozzles (on the [Unit]-[Head] tab screen)" in Chapter 2 to check vacuum level after
replacing filters. If it cannot reach normal level, perform "5.1.1 Cleaning the spline shaft" in this chapter.
1
Prepare for work.
e
1. Remove all items sensitive to magnetic fields such as wristwatches and magnetic ID cards.
2. (With nozzle station) Return all nozzles to the nozzle station
3. Press the emergency stop button and then open the machine safety cover.
4. Use the CLAMP ON/OFF switch to lower the feeder exchange carriage and detach it.
5. Move the head unit to convenient position to work and place a square cloth under the head unit.
2
Check the filter condition.
1. Turn the rotary unit so that the nozzle
shaft to be inspected is just under the
Z-axis.
2. Press down the Z-axis with finger to lower
the nozzle shaft.
3. (Without nozzle station) Remove detach
nozzles manually.
4. Check visually dirt on filter.
53337-N9-00
n
NOTE
See "How to lower RS head/nozzle shafts"" described
earlier for how to lower the RS head nozzle shafts.
3
Detach the filter.
1. As shown in the figure at right, use
flat-head precision screwdriver to push
out the filter from the end of nozzle shaft.
2. Take out the filter with tweezers.
53338-N9-00
n
NOTE
The filters (KMB-M7070-00X) for the RS head cannot be
reused once they are detached.
As a general guide, the filters should be replaced once
every month, although this depends on the operating
time of the machine. Periodic filter replacement is
recommended.

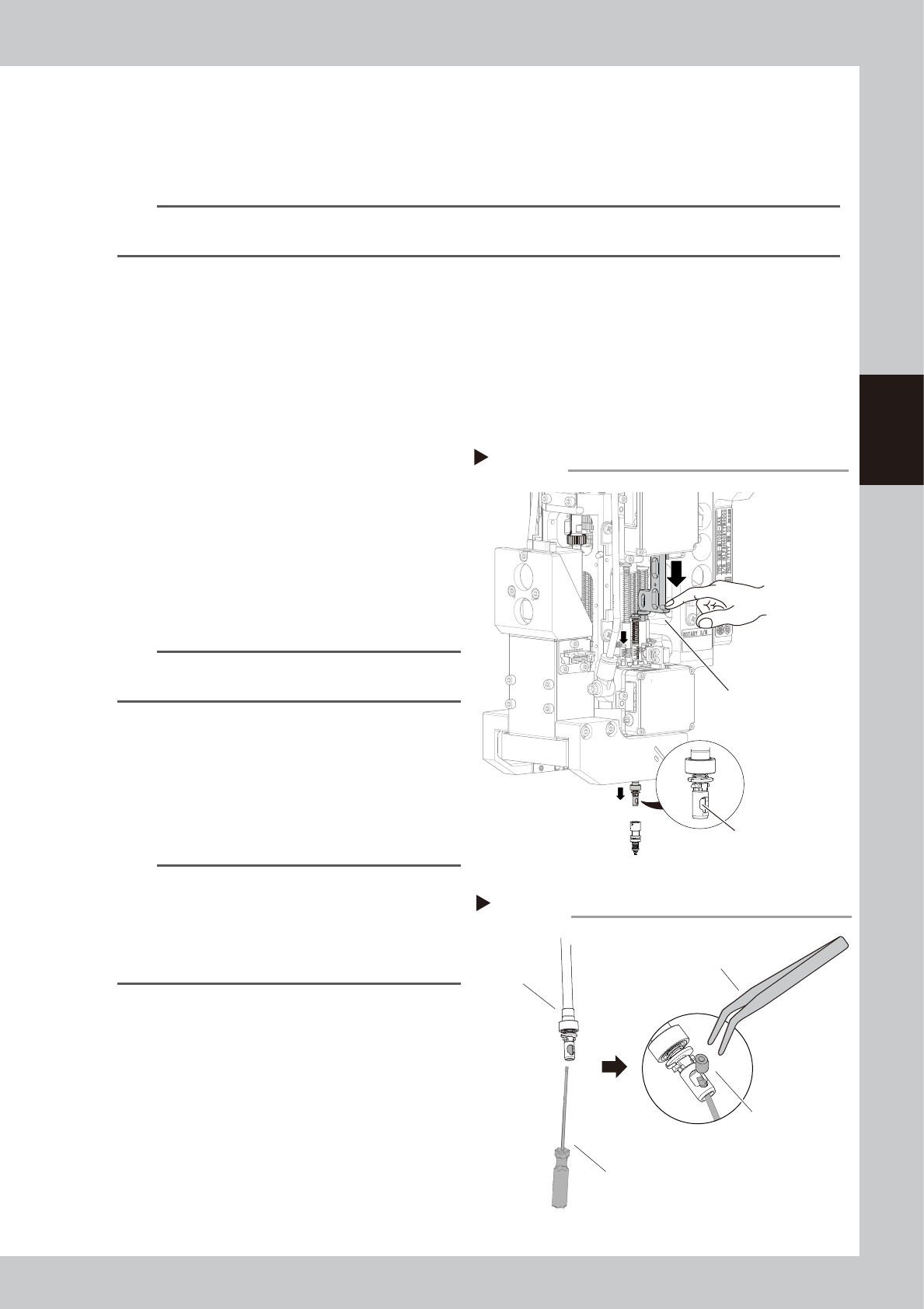

Checking the filter condition
Step 2
Press down the Z-axis with
finger to lower the nozzle shaft.
Filter for RS head
Detaching a filter
Step 3
Flat-head precision screwdriver
Filter
Nozzle shaft
Tweezers
