4-8 4 Maintenance of options 3.3 6-month inspection 3.3.1 AH-axis T he following describes the cleaning and lubrication procedures for the AH-axis (guide, ball guide, rack & pinion). 1 Clean the guide. Use a lint-fre…

100%1 / 217
4-7
4
Maintenance of options

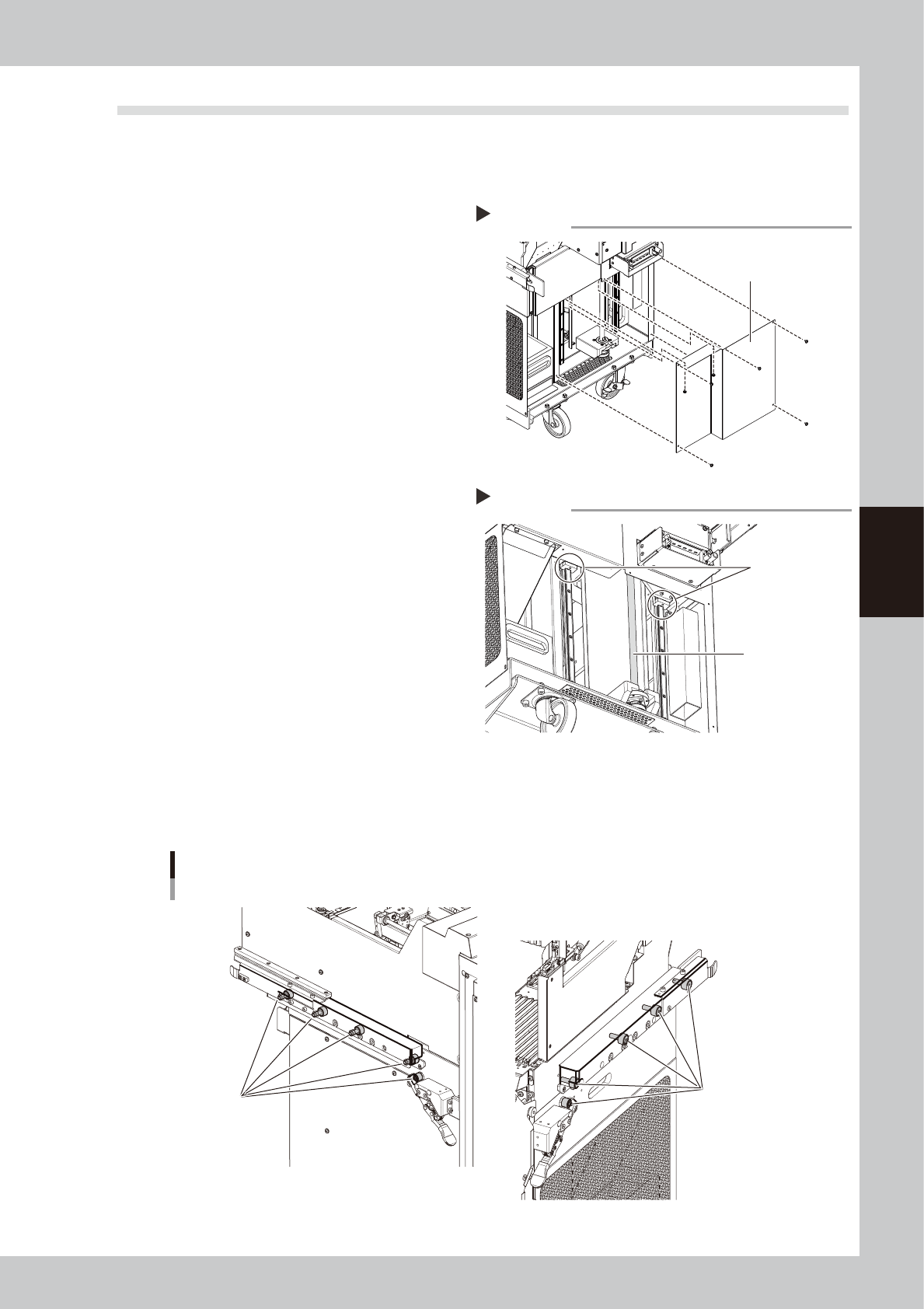

3.2 Monthly inspection
3.2.1 AZ-axis
The following describes the cleaning and lubrication procedures for the AZ-axis.
1
Detach the cover.
Use a Phillips screwdriver to detach the rear
cover of the cATS.
53404-N9-00
2
Clean the ball screw and guide.
Use a lint-free cloth to wipe off the old
grease and dirt on the ball screw and guide.
3
Apply grease.
Apply grease by hand to the ball screw. Also
apply grease to the guide using a grease
gun (bent type).
53405-N9-00
4
Reattach the cover.
Reattach the cover that was detached in
Step 1.
3.2.2 Both sides of cATS
Lightly apply grease by hand to the cam followers on both sides of the cATS.
Both sides of cATS
Cam follower
cATS left side
cam follower
cATS right side
cam follower
53406-N9-00
Applying grease
Step 3
Grease nipple
for AZ-axis guide
AZ-axis ball screw
Detaching the cover
Step 1
Cover
4-8
4
Maintenance of options

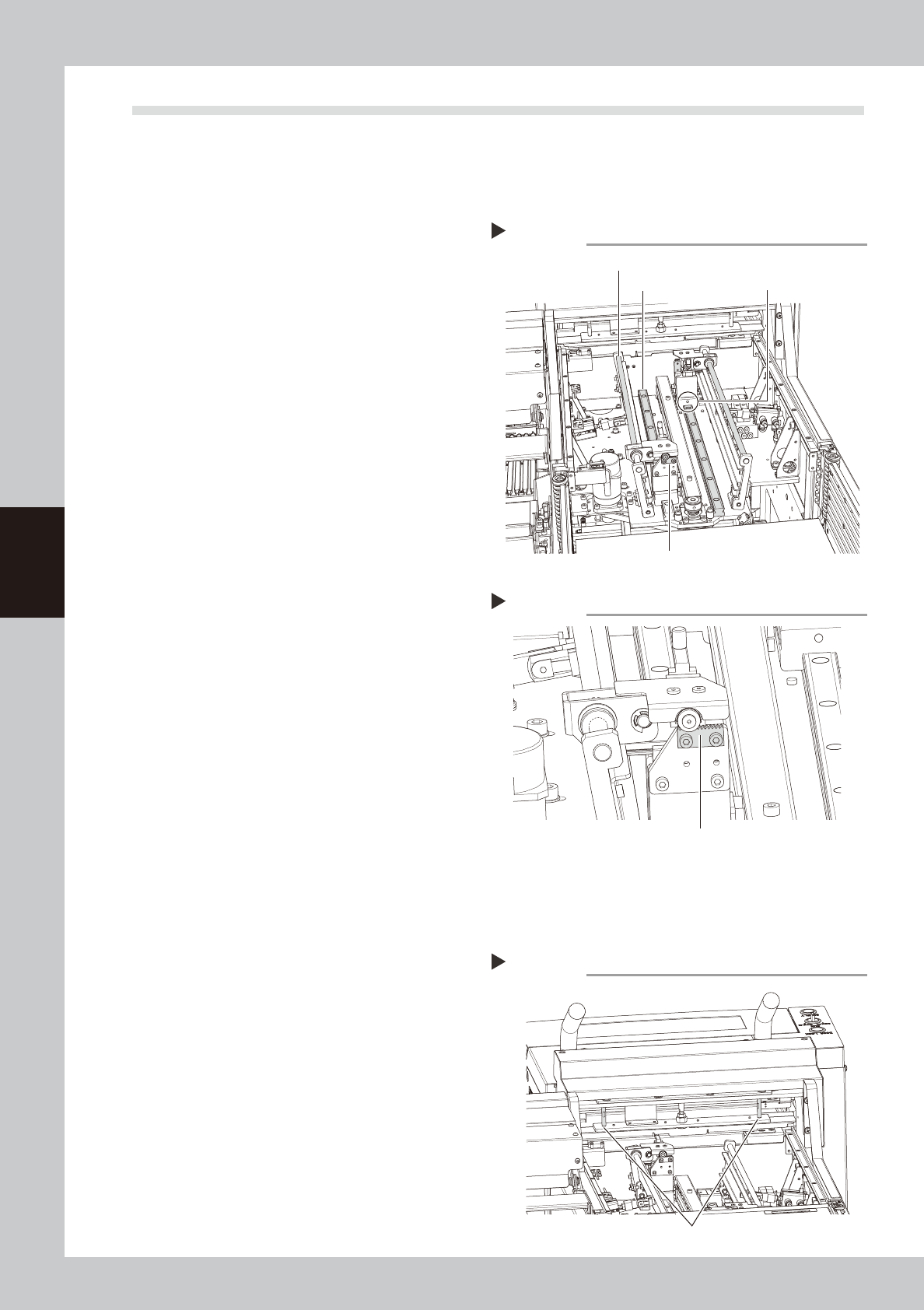

3.3 6-month inspection
3.3.1 AH-axis
The following describes the cleaning and lubrication procedures for the AH-axis (guide, ball guide, rack &
pinion).
1
Clean the guide.
Use a lint-free cloth to wipe off the old
grease and dirt on the guide.
2
Apply grease.
1. As shown in the figure on the right, move
the grease nipple to a position where a
grease gun can be easily used.
2. Use a grease gun (bent type) to inject
grease into the grease nipple.
53407-N9-00
3
Clean the ball guide.
Use a lint-free cloth to wipe off the old
grease and dirt on the ball guide.
4
Apply grease.
Apply a thin coat of grease by hand to the
ball guide.
5
Clean the rack & pinion.
Use a lint-free cloth to wipe off the old
grease and dirt on the rack & pinion.
6
Apply grease.
Uniformly apply grease by hand to the rack
gear.
53408-N9-00
7
Remove excess grease.
1. After applying grease, move each unit
back and forth a few times.
2. Check the grease condition and wipe
away excess grease using a lint-free
cloth.
3.3.2 Magazine shaft
The following describes the cleaning and lubrication procedures for the magazine shaft ball guide.
1
Clean the ball guide.
Use a lint-free cloth to wipe off the old
grease and dirt on the ball guide.
2
Apply grease.
Apply a thin coat of grease by hand to the
ball guide.
53409-N9-00
Applying grease to the AH-axis
Step 2
Ball guide
Rack gear
Grease nipple for guide
Guide
Applying grease to the rack gear
Step 6
Rack gear
Applying grease to the magazine shaft
Step 2
Magazine shaft
4-9
Before using the machine

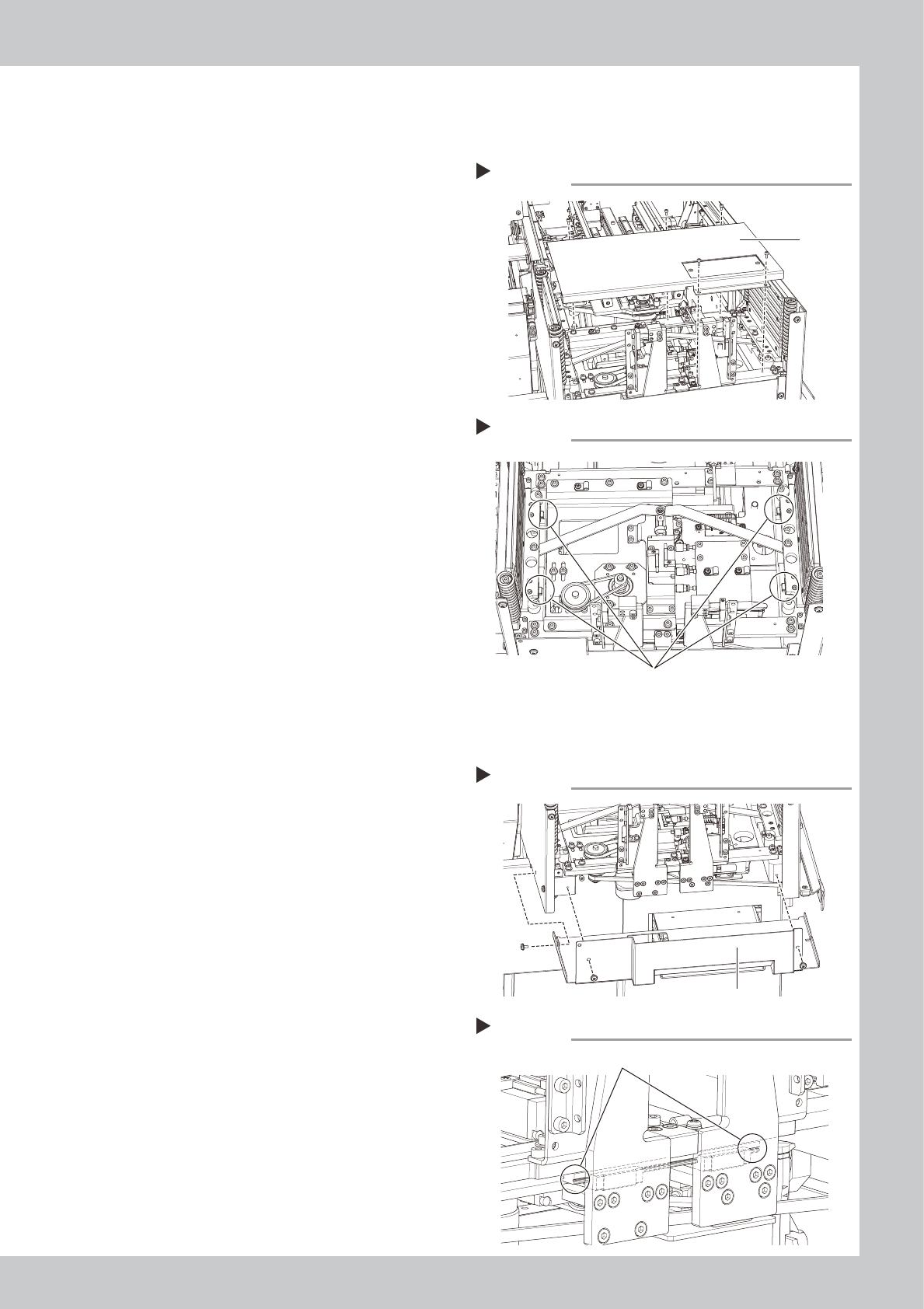

3.3.3 Pickup station (pallet clamp)
The following describes the cleaning and lubrication procedures for the pallet clamp.
1
Detach the cover.
Use a hex wrench to detach the cover as
shown in the figure at right.
53410-N9-00
2
Clean the guide.
Use a lint-free cloth to wipe off the old
grease and dirt on the guides.
3
Apply grease.
Apply grease by hand to the guides.
53411-N9-00
4
Attach the cover.
Attach the cover that was detached in Step
1.
3.3.4 Pickup station (vertical guide)
The following describes the cleaning and lubrication procedures for the vertical guide.
1
Detach the cover.
Use a Phillips screwdriver to detach the
cover as shown in the figure at right.
53412-N9-00
2
Clean the guide.
Use a lint-free cloth to wipe off the old
grease and dirt on the guide.
3
Apply grease.
Apply grease by hand to the guide.
53413-N9-00
4
Reattach the cover.
Reattach the cover that was detached in
Step 1.
Detaching the cover
Step 1
Cover
Applying grease
Step 3
Guides
Detaching the cover
Step 1
Cover
Applying grease
Step 3
Guide
