Lubricating points

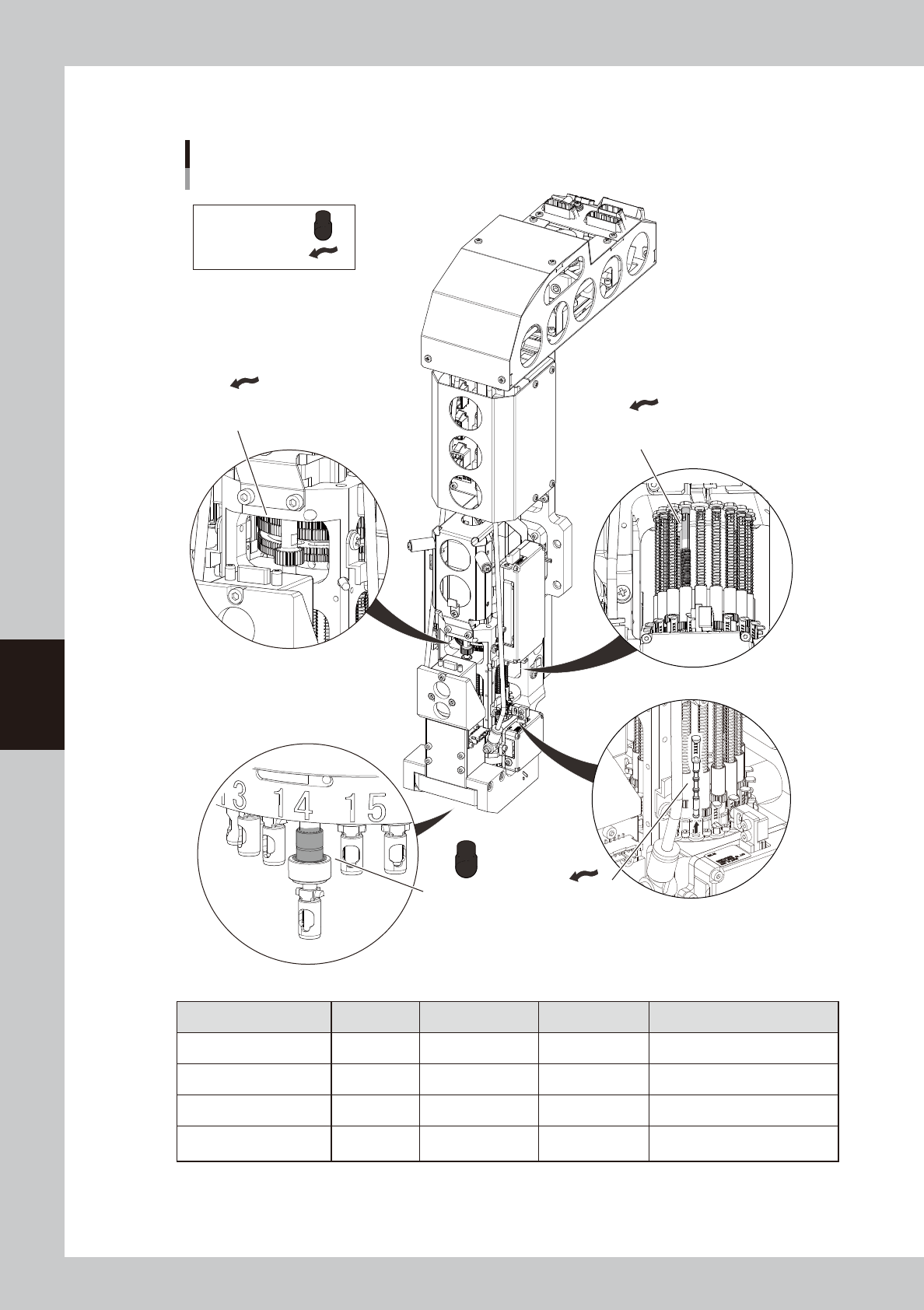

2.5.2 RS head unit
RS head unit lubricating points
Scissors gear, spool, nozzle shaft
Jig for greasing:
Manual lubrication:
Scissors gear
Manual lubrication
Spool
Manual lubrication
Upper part of nozzle shaft
Manual lubrication
Nozzle shaft tip
Jig for greasing
53507-N9-00
Lubricating section Grease Lubricating point Interval Procedure
Scissors gear LG2 1 / Head Every 2 years Manual lubrication
Spool For spool 18 / Head Every 3 months Manual lubrication
Nozzle shaft tip For shaft tip 18 / Head Monthly Jig for greasing
Upper part of nozzle shaft
Oil for upper
part of shaft
18 / Head Every 2 years Manual lubrication (cotton swab)
5-11
5
Lubricating points
2.5.3 FL head unit
FL head unit lubricating points
Spline shaft, ball screw, scissors gear
Grease gun:
Manual lubrication:
Ball screw
Manual lubrication
Spline shaft
Manual lubrication
Scissors gear (In gear box)
Manual lubrication
53508-N9-00
Lubricating section Grease Lubricating point Interval Procedure
Scissors gear NSL 2 / Head Yearly Manual lubrication
Spline shaft NSL 2 / Head Every 3 months Manual lubrication
Ball screw NSL 2 / Head Every 3 months Manual lubrication
5-12
5
Lubricating points
3. Lubricating points/schedule (Carriage)
3.1 Feeder exchange carriage
Feeder exchange carriage lubricating points
Cam follwer, Guide rail cover clamp section, Positioning section
Cover clamp
Positioning section
Cover clamp
Positioning section
Grease gun:
Manual lubrication:
Com follower
Manual lubrication
Com follower
Manual lubrication Manual lubrication
Manual lubrication
Manual lubrication
Manual lubrication
53509-N9-00
Lubricating section Grease Lubricating point Interval Procedure
Cam follower NSL 3 per carriage Monthly Manual lubrication
Guide rail cover clamp NSL 4 per carriage Every 3 months Manual lubrication
Positioning section NSL 4 per carriage Every 3 months Manual lubrication
