5-13 5 Lubricating points 4. Lubricating points/schedule (cA TS) 4.1 AZ-axis AZ-axis lubricating points Ball screw & guide AZ-axis ball screw AZ-axis guide Grease nipple AZ-axis guide Grease nipple Grease gun: Manual…
5-12
5
Lubricating points
3. Lubricating points/schedule (Carriage)
3.1 Feeder exchange carriage
Feeder exchange carriage lubricating points
Cam follwer, Guide rail cover clamp section, Positioning section
Cover clamp
Positioning section
Cover clamp
Positioning section
Grease gun:
Manual lubrication:
Com follower
Manual lubrication
Com follower
Manual lubrication Manual lubrication
Manual lubrication
Manual lubrication
Manual lubrication
53509-N9-00
Lubricating section Grease Lubricating point Interval Procedure
Cam follower NSL 3 per carriage Monthly Manual lubrication
Guide rail cover clamp NSL 4 per carriage Every 3 months Manual lubrication
Positioning section NSL 4 per carriage Every 3 months Manual lubrication
5-13
5
Lubricating points

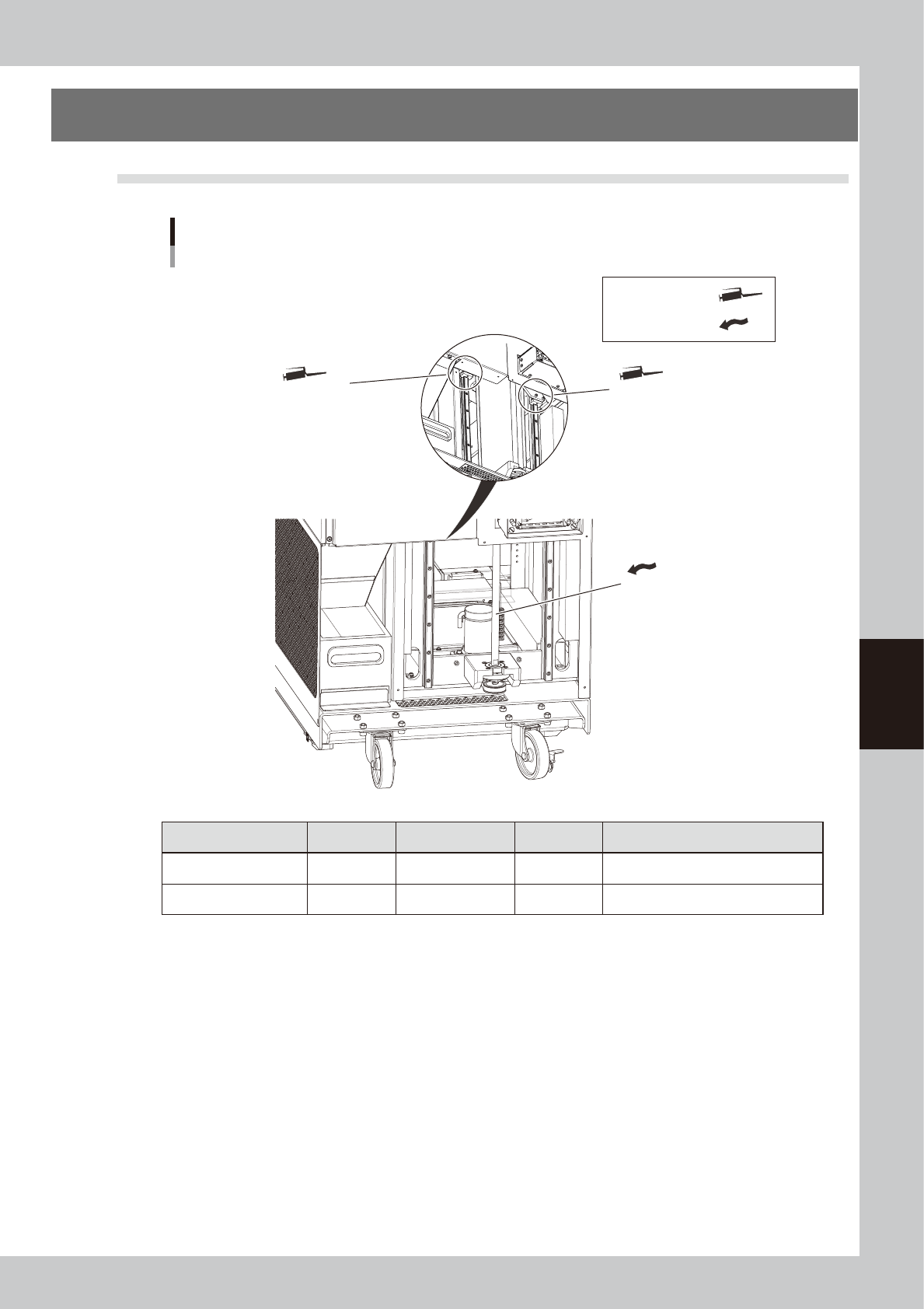

4. Lubricating points/schedule (cATS)
4.1 AZ-axis
AZ-axis lubricating points
Ball screw & guide
AZ-axis ball screw
AZ-axis guide
Grease nipple
AZ-axis guide
Grease nipple
Grease gun:
Manual lubrication:
53510-N9-00
Lubricating section Grease Lubricating point Interval Procedure
Ball screw NSL 1 Monthly Manual lubrication
Guide NSL 4 Monthly Grease gun: Bend type nozzle
5-14
5
Lubricating points
4.2 AH-axis
AH-axis lubricating points
Guide, ball guide, rack gear
AH-axis guide
AH-axis ball guide
Rack gear
Rack gear
AH-axis ball guide
Grease gun:
Manual lubrication:
53511-N9-00
Lubricating section Grease Lubricating point Interval Procedure
Guide NSL 2 Every 6 months Grease gun: Bent type nozzle
Ball guide NSL 2 Every 6 months Manual lubrication
Rack gear NSL 2 Every 6 months Manual lubrication
