1-16
1
Maintenance

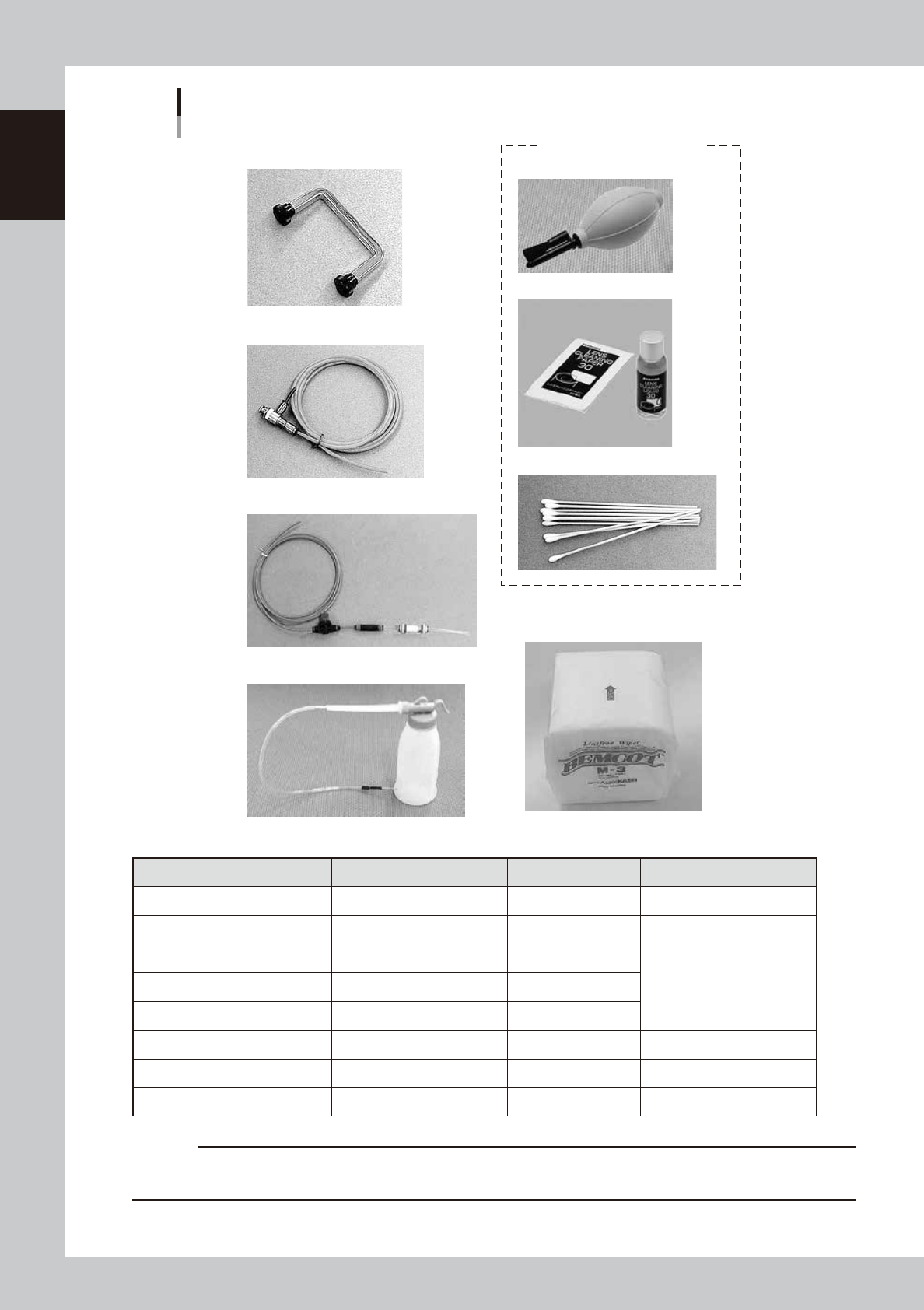

Cleaning tools
Optional parts
Nozzle cleaning wire handle
Vacuum assembly
Spline shaft cleaning kit
Air blow tool
CLEANER, VISION SET
Cleaning wiper
Cotton swab (15 cm)
Blower brush
Lens cleaner and cleaning paper
53107-N9-10
n
Cleaning tools (Optional parts)
Name Part Name Part No. Note
Nozzle cleaning wire handle NEEDLE CLEANER ASSY KV8-M8881-A0X Special Tool
Air blow tool AIR BLOW TOOL KU4-M8590-00X
Cotton swab (15 cm) SWAB KGA-M3802-00X
CLEANER, VISION SET
(KHW-M3801-A0X)
Blower brush BLOWER KGA-M3803-00X
Lens cleaner, Cleaning paper CLEANER, LENS KGA-M3801-00X
Spline shaft cleaning kit CLEANING KIT KHN-M8860-00X
Vacuum assembly VACUUM ASSY KHY-M88V0-A0X For cleaning (vacuum)
Cleaning wiper WIPER KGS-M3840-00X
c
CAUTION
The parts (part Nos.) in this manual are at the time of issuing this manual. The part Nos. may be changed without prior
notice. Make sure to verify the latest part Nos. before ordering.
1-17
1
Maintenance
2.3.2 Lubricating tools and grease
Lubricating and greasing tools
Parts supplied with machine and optional parts
Lithium-based grease NSL
Jig for greasing RS head
Lubricant syringe for nozzle slide section
Grease gun
Standard nozzle
Flexible type nozzle
Bent type nozzle
GREASE GUN SET
53108-N9-00
n
Lubricating tools and grease (Parts supplied with machine)
Name Part Name Part No. Note
Lubricant syringe for nozzle slide section SYRINGE, OIL KV8-M8870-00X Turbine oil VG32
Jig for greasing RS head LUBRICATION SET KMB-M3820-00X For greasing RS head/shaft
Lithium-based grease GREASE PACK K48-M3856-00X NSL 80g
n
Lubricating tools and grease (Optional parts)
Name Part Name Part No. Note
Low dust-generation lithium grease GREASE PACK KW7-M3851-00X For RS head/Gear, LG2 80g
Grease for RS head spool
(mechanical valve)
GREASE 30G KMB-M3854-00X For lubricating RS head/spool, 30g
GREASE 200G KMB-M3853-00X For lubricating RS head/spool, 200g
Grease for RS head/shaft tip GREASE PACK (L500) KMB-M3859-00X For lubricating RS head/shaft tip, 80g
Oil for upper part of RS head/shaft LUBRICANT 20ML KMB-M3855-00X
For lubricating upper part of RS head/
shaft, 20ml
Grease gun (with standard nozzle) GREASE GUN K48-M3852-00X
GREASE GUN SET
KHW-M3852-A0X
Nozzle (flexible type) GREASE NOZZLE K48-M3857-00X
Nozzle (bent type) GREASE NOZZLE K48-M3854-00X
c
CAUTION
The parts (part Nos.) in this manual are at the time of issuing this manual. The part Nos. may be changed without prior
notice. Make sure to verify the latest part Nos. before ordering.
1-18
1
Maintenance
n
Precautions when handling grease
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT GETS INTO THE EYES. BEFORE HANDLING THE GREASE OR
LUBRICANT, WEAR SAFETY GOGGLES TO ENSURE THE GREASE OR LUBRICANT DOES NOT GET INTO THE EYES.
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT COMES INTO CONTACT WITH SKIN. BE SURE TO WEAR PROTECTIVE
GLOVES TO PREVENT CONTACT WITH SKIN.
w
WARNING
DO NOT TAKE ORALLY OR EAT GREASE OR LUBRICANT. EATING WILL CAUSE DIARRHEA AND VOMITING.
c
CAUTION
After use, tightly cap the grease tube to ensure dust, debris and moisture do not enter inside. Store the grease in a
dark location not exposed to direct sunlight and keep it away from fire and heating sources.
