High Speed Radial Lead Component Insertion Machine High productivity through high-speed insertion at 0.14 s/component. * Values such as maximum speed may vary depending on operating conditions. * Please refer to the ‘ ‘S…

100%1 / 2

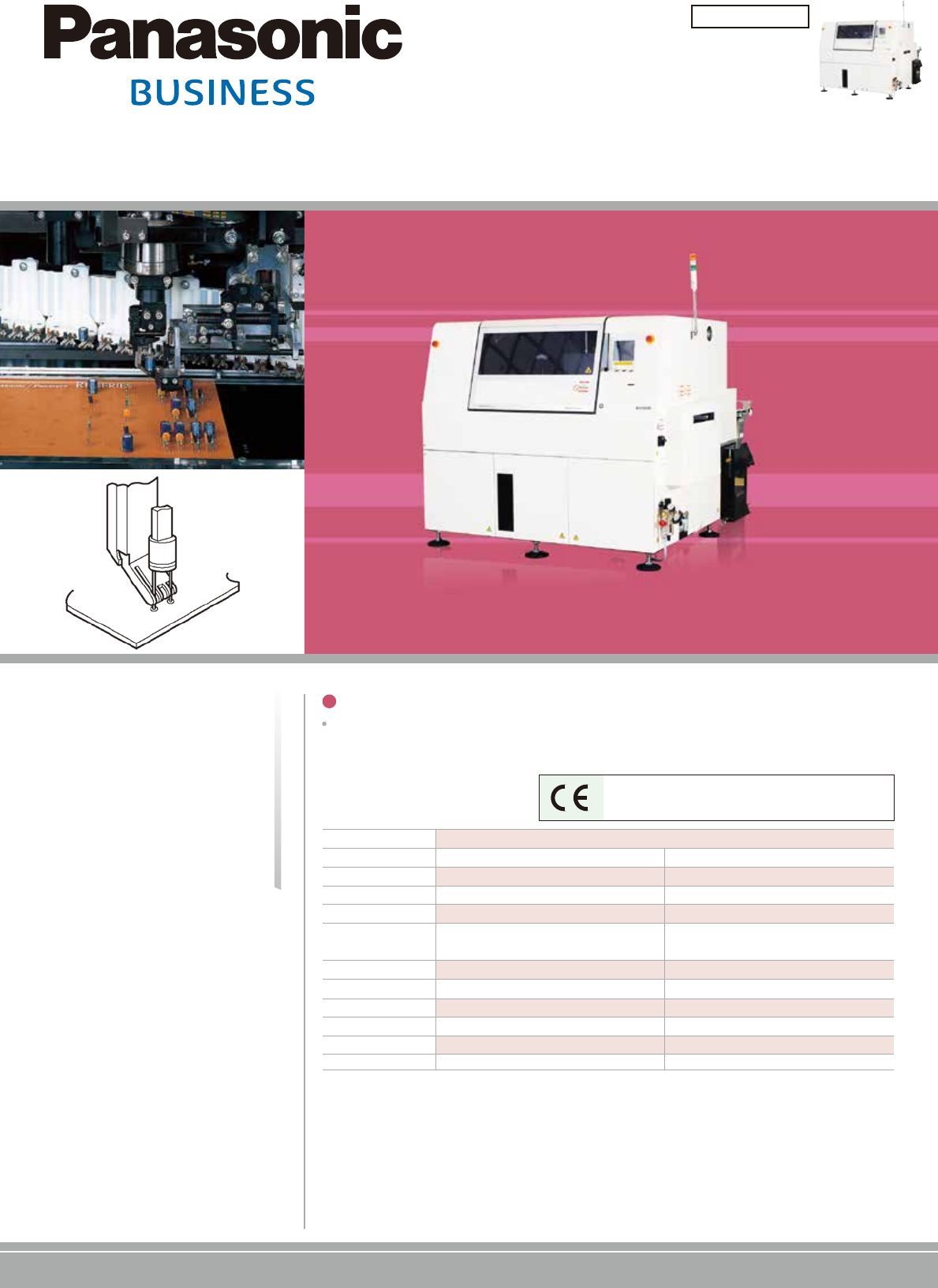

High Speed Radial Lead Component Insertion Machine
High productivity through high-speed insertion at 0.14 s/component.
* Values such as maximum speed may vary depending on operating conditions.
* Please refer to the ‘‘Specification’’ booklet for details.
*1:Compatible with 3-phase 220 / 380 / 400 / 420 / 480 V
*2:Excluding signal tower
*3:Only for main body
Model ID RL132
Model No. NM-EJR5A
PCB dimensions
Max. speed
No.of component inputs
Applicable
components
Insertion direction
Electric source
*1
Pneumatic source
Dimensions
PCB exchange time
Mass
*3
NM-EJR6A
L 50
mm
x W 50
mm
to L 508
mm
x W 381
mm
L 50
mm
x W 50
mm
to L 508
mm
x W 381
mm
0.14 s/component
40
about 2 s to about 4 s (Room temperature 20℃)
360°direction by 1°increment
3-phase AC 200 V, 3.5 kVA
0.5 MPa, 80 L /min (A.N.R.)
W 2 104
mm
x D 2 183
mm
x H 1 575
mm
*2
1 750 k
g
0.14 s/component
80 (Connection mode), 40 + 40 (Exchange mode)
about 2 s to about 4 s (Room temperature 20℃)
360°direction by 1°increment
3-phase AC 200 V, 3.5 kVA
0.5 MPa, 80 L /min (A.N.R.)
W 3 200
mm
x D 2 417
mm
x H 1 575
mm
*2
2 350 k
g
Model No.NM-EJR5A
Model No.NM-EJR5A, NM-EJR6A
Model ID
RL132
* It may not conform to Machinery Directive and EMC Directive in
case of optional configuration and custom-made specification.
Pitch 2.5/5.0
mm
（standard）,
7.5
mm and
10
mm
（option）,
Resistor, Electrolytic capacitor, Ceramic capacitor,
LED, Transistor, Filter, Resistor network
Pitch 2.5/5.0
mm
（standard）,
7.5
mm and
10
mm
（option）,
Resistor, Electrolytic capacitor, Ceramic capacitor,
LED, Transistor, Filter, Resistor network
Electronics Assembly System
catalog
2020
RL132
Model No.NM
-
EJR5A, NM
-
EJR6A
Model ID

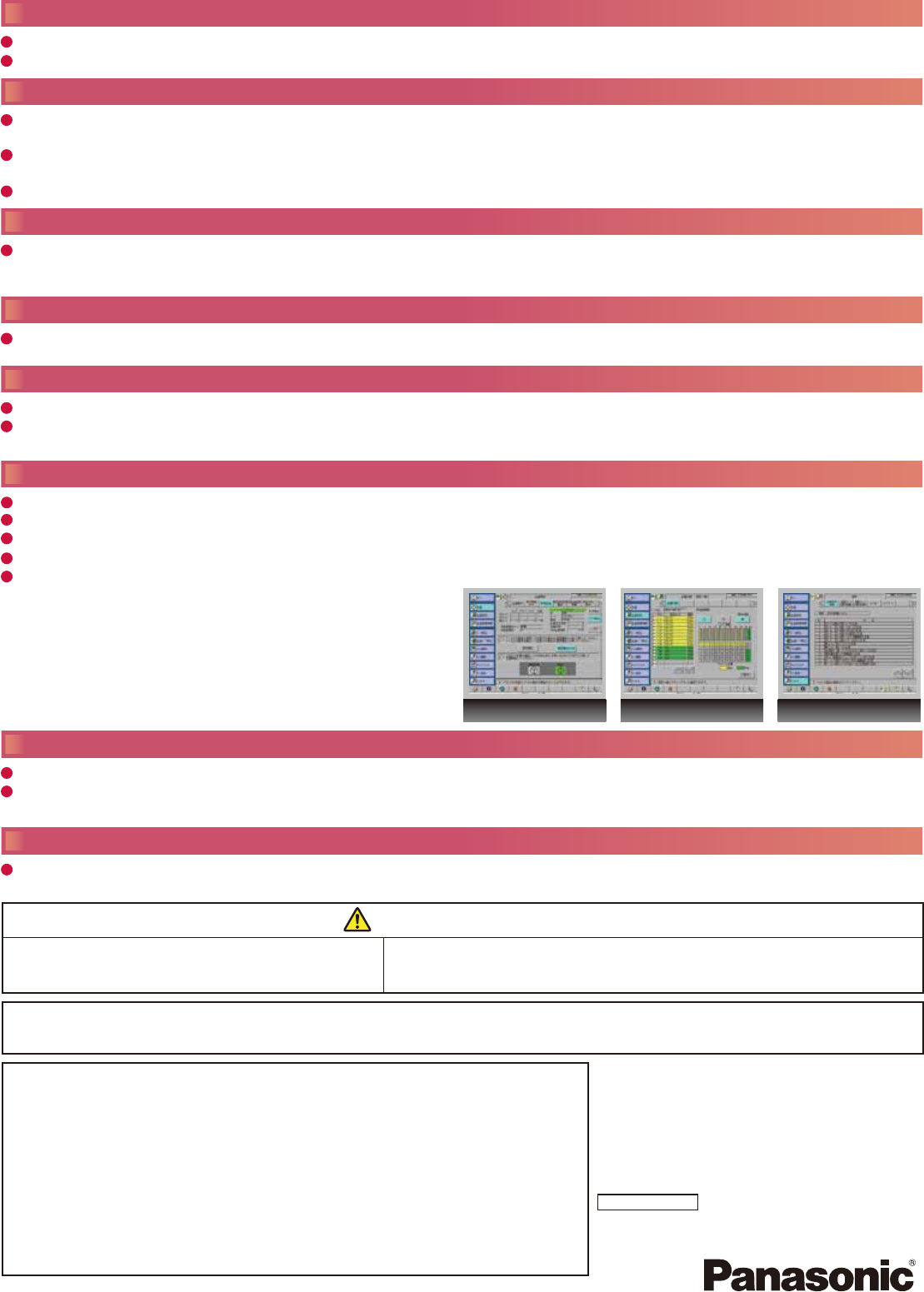

The fixed component feeder unit method and an out-of-component detection function allow component replenishment beforehand and
long-term non-stop operation.
Employing the dual- partitioned component supply method enables to select among from a connection mode, a preparation mode and an
exchange mode. (80-type component specification only)
A full-auto recovery function which automatically corrects insertion errors is provided so as to allow long-term non-stop operation.
High-speed insertion at 0.14 s/component
Lead V cut method enables the machine to insert radial lead components at a speed of 0.14 s/component.
Either one of 2-pitch (2.5mm/5.0mm), 3-pitch (2.5mm/5.0mm/7.5mm) or 4-pitch (2.5mm/5.0mm/7.5mm/10.0mm) spec. can be selected for insertion pitch.
Highly efficient production
Highly efficient use of area
Compact component supply method enables a reduction of area of occupation.
(40-type component specification only, Reduction of about 40% for an original RL131 machine)
Space saving installation and reduction of flow line allows high efficient production.
Reduction of running cost
Hole position offset method ensures high reliability
Recognizing the positions of all the holes (two or three) in the insertion area, the machine corrects the component position based
on the optimum insertion position calculated, ensuring reliable insertion.
Expandable parts of the RL132 such as the Anvil blade, pusher rubber are compatible with those of the RHS2B and RL131.
Operability, the data configuration and the XY table can be shared in any one of the Insertion machine series.
The setup and maintenance operations are standardized.
Operability enhancement
Identical control panels are setup at the front side of the RL132 so that operability can be significantly improved. (Standard specification)
Up to 200 types of programs can be stored. Data can be input to and output from high-capacity SD memory cards.
NC data of our conventional equipment (RH series) can be used by the RL132.
Setup support functions that display the component layout of the component supply unit on the screen are provided.
Maintenance support functions that display information of regular maintenance time and operation content are provided.
Maintenance support function
Setup support function
Operation guidance indication
Enlargement function option
Large-size PCB support option allows hole recognition and insertion up to PCB size of Max. 650 mm x 381 mm.
2 PCB transfer option can decrease PCB loading time by half and increase productivity.
This is effective especially when insertion components are few.
AR-DCE (model No. NM-EJS4B) Data Creation & Editor System
AR-DCE programming software can edit and optimize the program offline without affecting the machine operations.
