5 Tasks on the machine User Manual SIPLACE CF

5.2 Changing shift Software Version SR.408.xx03/2006 US Edition

116

5.2 Changing shift

Æ Splice the tapes early. The feeder modules do not have to be refilled as soon as the new shift

starts. This avoids extended down times.

Æ At the shift change, pass important information on to the next operator. This includes, for in-

stance, changes to the placement program. Also read through the list of the descriptions of

the steps to take in section 5.5

Æ Carry out a set-up check.

Make sure that the feeder modules are equipped with the correct components and that they

are at the correct locations in the component trolley.

PLEASE NOTE

Hand over the line in the same state that you would want to find it in when starting your shift.

This means that: 5

– The rejection containers are empty.

– The waste containers are empty.

– The feeder areas have been cleaned with a vacuum cleaner.

User Manual SIPLACE CF 5 Tasks on the machine

Software Version SR.408.xx 03/2006 US Edition 5.3 Carrying out a walk-through inspection

117

5.3 Carrying out a walk-through inspection

5.3.1 Checking the S feeder modules

Æ Make sure that the tape is correctly placed in the springs of the S feeder module.

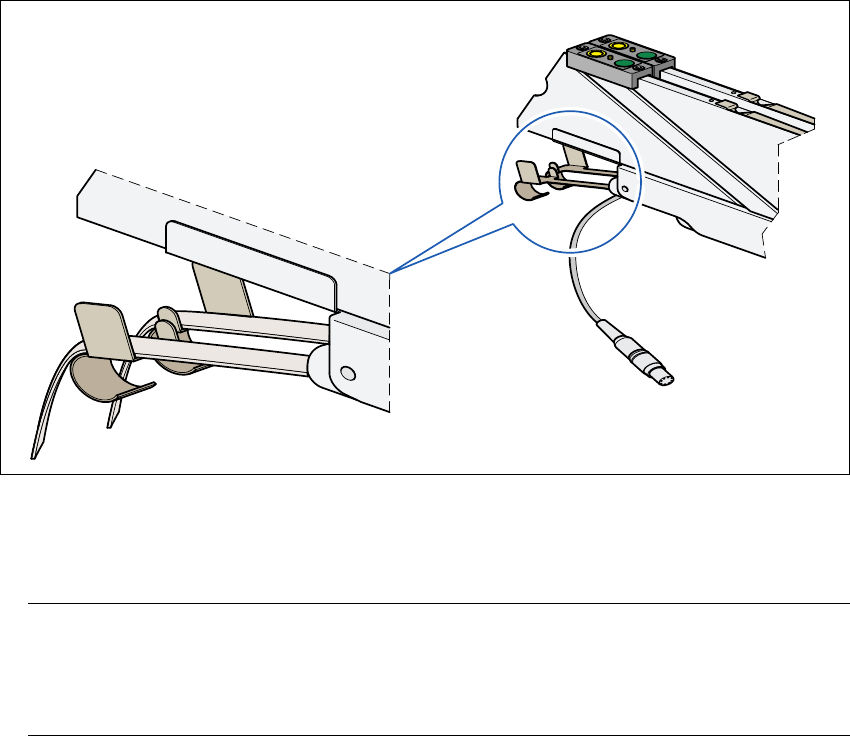

Fig. 5.3 - 1 Placing the tape in the springs of the S feeder module

Æ Check to see whether the tape foil removal container for the S feeder module is full.

If it is full, then pull out the foil and cut it off with scissors.

PLEASE NOTE

Tearing the foil instead of cutting it can lead to problems with the tape removal mechanism.

For this reason the 3 x 8 mm feeder modules are fitted with an integral cutter. This is in the

tape foil removal container at the end of the feeder module under the flaps. 5

Æ Check to ensure that the pick-up window on the feeder module is the right size for the com-

ponent.

Æ Check to see whether tape guides are inserted on combination feeder modules (24 mm /

32 mm).

Æ Check to see whether the additional plastic guide is inserted on combination feeder modules.

5 Tasks on the machine User Manual SIPLACE CF

5.3 Carrying out a walk-through inspection Software Version SR.408.xx03/2006 US Edition

118

5.3.2 Splicing the tape in good time

PLEASE NOTE: 5

Splice the tapes early enough so that the feeders do not become empty. Otherwise you will expe-

rience prolonged down times.

However, do not splice the tapes too early because if you wind the end of the old tape onto the

new reel after splicing, the reel holding the new tape may become overfilled and the tape will slip

off the reel and become tangled up. This will again result in pick-up errors and prolonged down

times.

5.3.3 Checking the PCB supports

Check the position of the magnetic PCB supports on the lifting table:

– Make sure that the PCB supports do not collide with components on the underside of the

PCBs.

– In addition, make sure that the PCB supports do not collide with the PCB conveyor pan-

els.
