1 Introduction User Manual SIPLACE CF
1.1 General Software Version SR.408.xx 03/2006 US Edition
12
1.1 General
1.1.1 How to get information
If you have any further questions concerning this manual or if you would like additional information
on a particular topic, please get in touch with your local Siemens dealer or contact us directly at:1
SIEMENS AG, Automation and Drives
Electronics Assembly Systems
Rupert-Mayer-Str. 44
D-81359 Munich 1
1.1.2 SIPLACE on the World Wide Web (WWW)
We also have our own site on the Internet. Why not log onto our SIPLACE home page at http://
www.siplace.com? 1
1

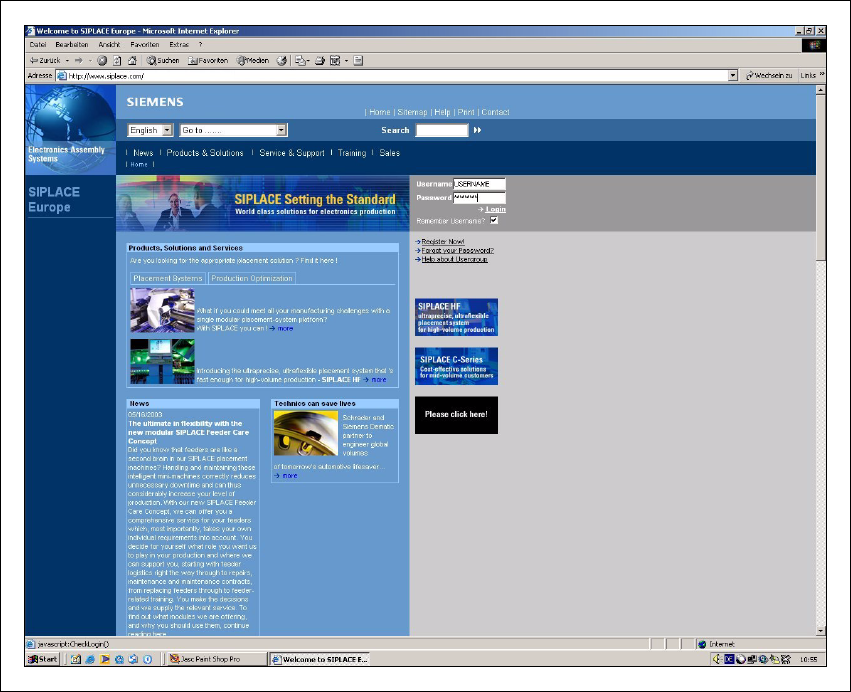

Fig. 1.1 - 1 The SIPLACE home page
User Manual SIPLACE CF 1 Introduction
Software Version SR.408.xx 03/2006 US Edition 1.2 Important notes on the user manual
13
All the menus and other information are available in two languages: You can choose between the
German and English versions. 1
The various headings contain information on 1
– our products
– services
– contacts, etc.
Registered customers can also access the SIPLACE User Group. There you can call up special
information on our placement machines, such as 1
– technical documentation
– technical information
– spare parts lists, etc.
Registering for access to the User Group is sheer child’s play: 1
Æ Click on ’Register now’.
Æ Complete the registration form and just send it off.
1
You will then quickly receive access authorization with USER ID and a password. 1
1.2 Important notes on the user manual
1.2.1 Contents and filing of the user manual
This user manual contains basic information that must be observed when setting up, operating
and maintaining the machine. The service engineers, qualified staff, operators and users must
therefore read it before commencing installation and commissioning. The instructions must be
kept permanently accessible where the machine is used.
1.2.2 Qualification and training of personnel
Personnel used for operation, preventive maintenance, inspection and installation must hold the
relevant qualifications for the job. The user must keep tight control over their responsibilities, as-
signment and supervision. Any employee who does not have the relevant training must be trained
and given appropriate instruction. If necessary the user of the machine can have training provided
by the manufacturer/supplier.
In addition, the user must ensure that the employees have fully understood the contents of the
user manual.
1 Introduction User Manual SIPLACE CF
1.3 Danger notes Software Version SR.408.xx 03/2006 US Edition
14
1.2.3 User classification
The operating software is structured so that certain functions or menus can only by used or called
by appropriately trained personnel. There are three different classes of user:
– operator,
– line engineer and
– service engineer.
Access to each class may be password-protected. Chapters containing information for user class-
es higher than "operator" contain a reference to the user class concerned in the footer.
Operators 1
The operator class consists of any person who has been trained in operation of the machine.
These people are authorized to use any functions associated with operating the machine and may
call up any menus needed to use the machine.
Line engineers 1
Line engineers have undergone special training and are authorized to carry out line engineer ac-
tivities, such as creating set-up configurations, determining vision parameters, etc.
Service engineers 1
This class is intended for engineers from SIEMENS A &D. They are trained to carry out servicing
work and to upgrade and retrofit the placement system.
1.3 Danger notes
WARNING 1
– A thorough knowledge of the relevant part of this User Manual is required before carrying out
any work on the machine.
– All work must be carried out by appropriately trained and qualified personnel.
– All warning, caution and danger notes MUST be observed.
– In addition, read through chapter 2 of the user manual carefully.
