User Manual SIPLAC E CF 6 Component han dling Software Version SR.408.xx 03/2006 US Edition 6.2 Technical data for the S feeder modules 145 6.2.7 T ape feeder module 24/ 32 mm S Fig. 6.2 - 7 T ape feeder mod ule 24/32 mm…
6 Component handling User Manual SIPLACE CF
6.2 Technical data for the S feeder modules Software Version SR.408.xx 03/2006 US Edition
144
6.2.6 12 mm S tape feeder module for powdered metal-based capacitors, E model
6

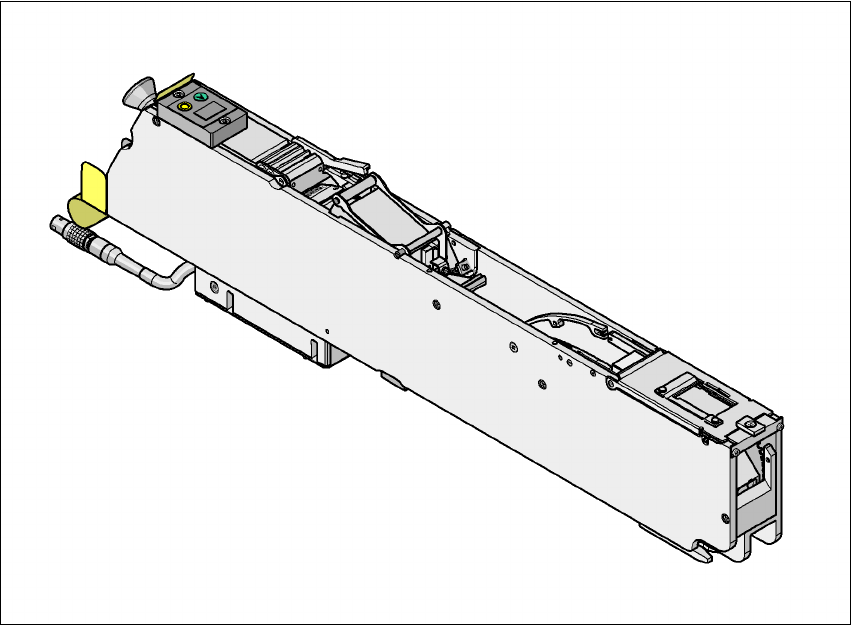

Fig. 6.2 - 6 Tape feeder module 12 mm S for powdered metal-based capacitors, E model
Item no. 00141117-xx 6
Width 30.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1 6
Maximum number of feeder modules 2 x 20 6
Stock of components for 7" reels approx. 4,000 6
Maximum tape height 3.6 mm 6
Conveyor increment from 4mm to 24 mm in 4 mm increments 6
6
WARNING
Capacitors based on metal-powder, such as
tantalum capacitors, may only be processed with
feeder modules that are identified with this sticker.
6
Sticker on feeder module (enlarged)
User Manual SIPLACE CF 6 Component handling
Software Version SR.408.xx 03/2006 US Edition 6.2 Technical data for the S feeder modules
145
6.2.7 Tape feeder module 24/32 mm S
Fig. 6.2 - 7 Tape feeder module 24/32 mm S
Item no. 00141093-xx 6
Width 42.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1.5 6
Maximum number of feeder modules 2 x 13 6
Stock of components for 7" reels approx. 2,000 6
Conveyor increment from 4mm to 40 mm in 4 mm increments 6
6 Component handling User Manual SIPLACE CF
6.2 Technical data for the S feeder modules Software Version SR.408.xx 03/2006 US Edition
146
6.2.8 Tape feeder module 24/32 mm S DP for deep pockets
Fig. 6.2 - 8 Tape feeder module 24/32 mm S DP for deep pockets
Item no. 00141193-xx 6
Width 42.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1.5 6
Maximum number of feeder modules 2 x 13 6
Tape height up to 25 mm 6
Conveyor increment from 4mm to 40 mm in 4 mm increments 6
