6.2.13 Tape feeder module 72mm S
Fig. 6.2 - 13 Tape feeder module 72 mm S
Item no. 00141097-xx 6
Width 82.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 3 6
Maximum number of feeder modules 2 x 6 6
Stock of components for 7" reels approx. 2,000 6
Conveyor increment from 4mm to 80 mm in 4 mm increments 6
6 Component handling User Manual SIPLACE CF
6.2 Technical data for the S feeder modules Software Version SR.408.xx 03/2006 US Edition
152
6.2.14 Tape feeder module 88 mm S

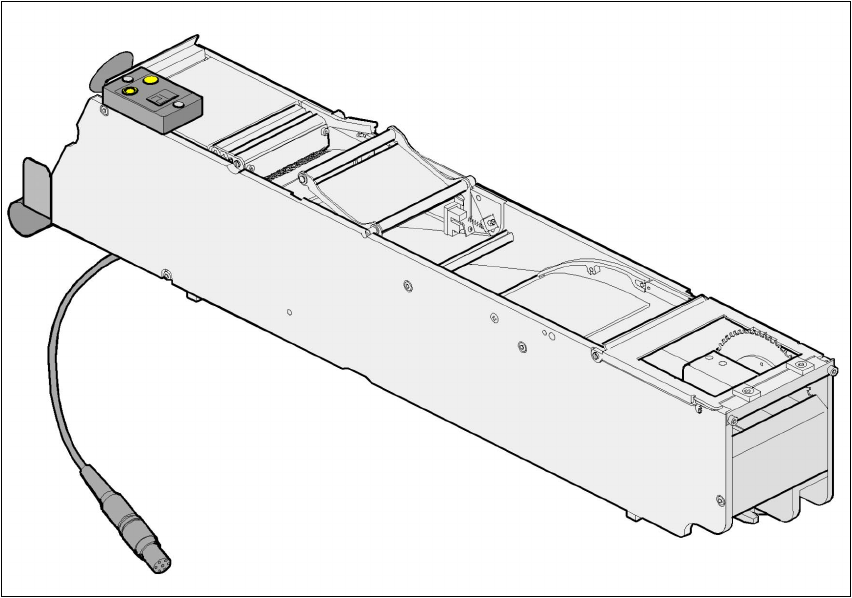

Fig. 6.2 - 14 Tape feeder module 88 mm S
Item no. 00141070-xx 6
Width 98.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 3.5 6
Maximum number of feeder modules 2 x 5 6
Stock of components for 7" reels approx. 2,000 6
Conveyor increment from 4mm to 96 mm in 4 mm increments 6
User Manual SIPLACE CF 6 Component handling
Software Version SR.408.xx 03/2006 US Edition 6.2 Technical data for the S feeder modules
153
6.2.15 Linear vibratory feeder, type 3
Fig. 6.2 - 15 Linear vibratory feeder, type 3
Item no. 00142031-xx 6
Width 28 mm 6
Tracks per feeder 1, 2, 3, or 6 6
Assigned locations 1 6
Maximum number of feeders 2 x 20 6
Stock of components Up to 150 per steel stick magazine, 6
depending on the component length 6
Specific data for stick magazines 9.5 mm wide / x 3 6
15 mm wide / x 2 6
> 15 mm wide / x 1 6
30 mm wide / 1 x 6
Cycle time Variable with SIPLACE Pro from 400 to
over 1,000 msec 6
