It is easy to fit. Use three screws DIN 912, M8x20 (item 3) to fix the compressed air supply
(item 2) to the component feeder table (item 1). The compressed air supply has retaining clips
(item 4) on the back. They fix the bulk case feeder modules to the component table and thus
ensure a perfect compressed air supply.
6
Fig. 6.3 - 3 Compressed air supply for bulk case feeder modules
(1) Component table
(2) Compressed air supply for bulk case feeder modules
(3) Screw DIN 912, M8x20
(4) Retaining clamp
6 Component handling User Manual SIPLACE CF
6.3 Component trolley Software Version SR.408.xx 03/2006 US Edition
164
6

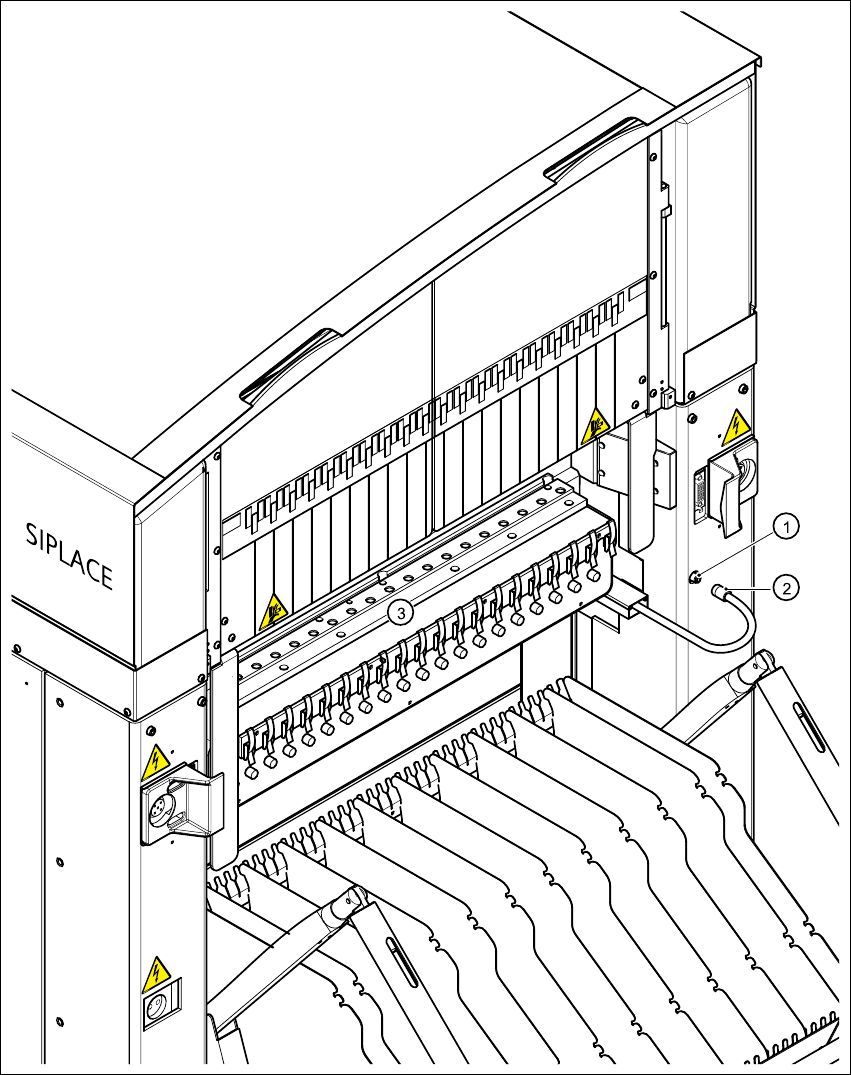

Fig. 6.3 - 4 Connecting the compressed air supply for bulk case feeders
6
(1) Coupling connector for compressed air
(2) Coupling socket with supply hose
(3) Compressed air distributor for bulk case feeder modules
User Manual SIPLACE CF 6 Component handling
Software Version SR.408.xx 03/2006 US Edition 6.3 Component trolley
165
6.3.4 Support for the middle tape reel for 3x 8 mm feeder modules
Type 3x 8 mm S feeders transport components to the pick-up position on three tracks. The tape
reels of the two outer tracks are positioned between the separating plates in the tape container.
The middle tape reel is arranged over the tape reels for the two outer tracks.
For the middle tape reels you will therefore also need:
– 1 adapter plate for holding the tape reel holder (item 1) and
– 1 tape reel holder (item 2) for every two feeders
The adapter plate is fixed to the component trolley with four fillister head screws, and the tape
reel holders are inserted into the square openings in the adapter plate.
6
Fig. 6.3 - 5 Support for the middle tape reel for 3x 8 mm feeder modules
6
(1) Adapter plate
(2) Tape reel holder
