User Manual SIPLACE CF 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.1 Safety instructions
23
2.1.6 Safety instructions for laser units
Permission to operate components that are classified as lasers is withdrawn if
– mechanical damage to the unit is observed, or
– any work is done on the mechanical or electrical parts of the unit. Even damaged or missing
screw locking paint on laser components (e.g. cover plates, fasteners, adjusting potentiom-
eter) counts as work.
– Only SIEMENS A&D service engineers, or the machine owner's service engineers who
have been trained by SIEMENS A&D are allowed to replace laser components.
– Repairs to laser units are carried out at the SIEMENS A&D factory exclusively.
2.1.7 Important notes on environmentally-friendly disposal of materials and
components
SIPLACE systems are manufactured using only materials and parts that can be easily separated
and disposed of in an environmentally-friendly way. Hazardous materials are not necessary for
the installation, dismantling or operation of the system.
PLEASE NOTE 2
The owner of the system has sole responsibility for the proper environmentally-friendly disposal
of machines, working materials, consumables and wear parts.
Æ Please observe your national statutory provisions for waste disposal and environmental pro-
tection.
2 Operational safety User Manual SIPLACE CF
2.2 Warning labels Software Version SR.408.xx 03/2006 US Edition
24
2.2 Warning labels
2.2.1 Warning labels W201, W203, W204, and W206 on the machine
The warning labels are made from soft PVC film, and are abrasion-proof, light-fast and resistant
to water and weathering.
Their design meets the requirements of ISO 3864-2 and ANSI Z535.4.
2

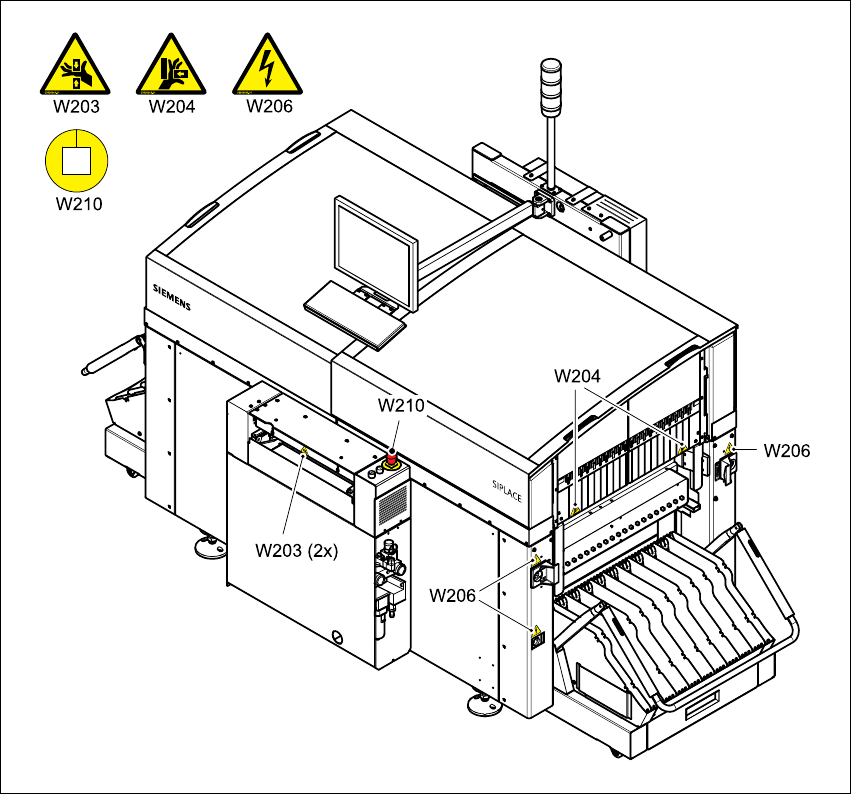

Fig. 2.2 - 1 Warning labels on the machine - part 1
Item W203 item no. 03009342-01
Item W204 item no. 03009343-01
Item W206 item no. 03009345-01
Item W210 item no. 03009350-01
User Manual SIPLACE CF 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.2 Warning labels
25
WARNING 2
– Do not use abrasive cleaners or solvents for cleaning warning labels.
– Replace any damaged or illegible warning labels.
2

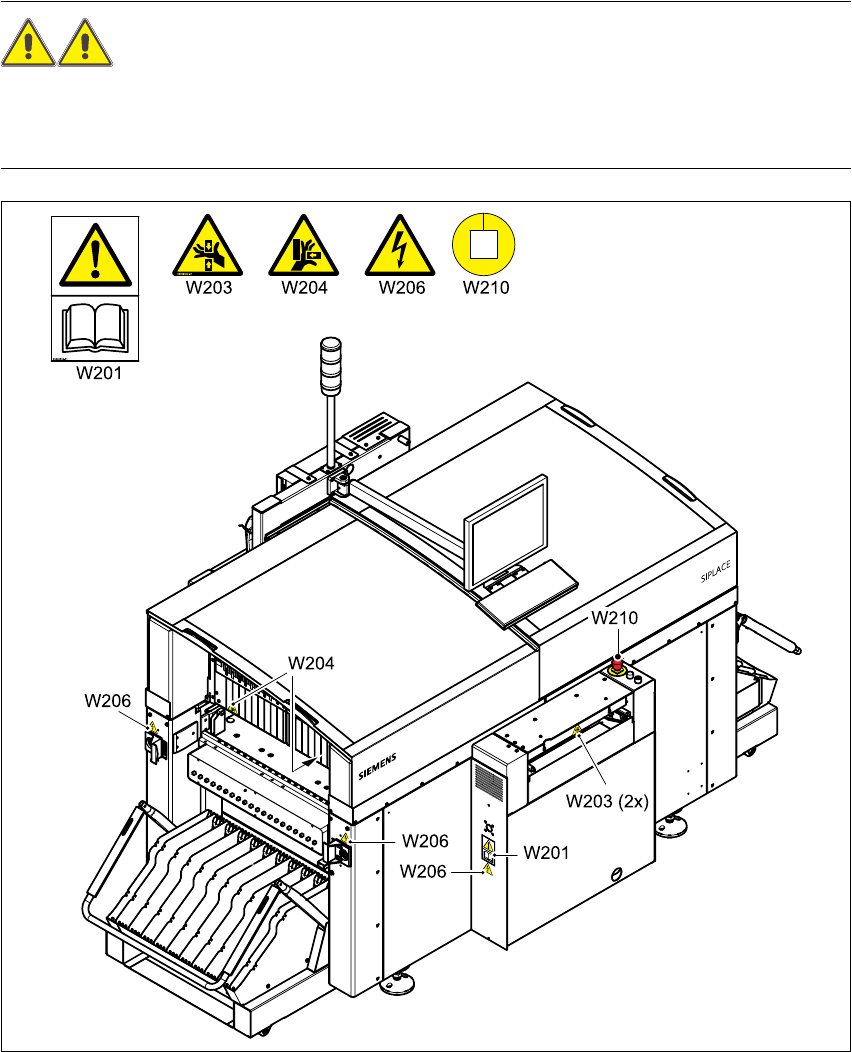

Fig. 2.2 - 2 Warning labels on the machine - part 2
Item W201 item no. 03009338-01
Item W203 item no. 03009342-01
Item W204 item no. 03009343-01
Item W206 item no. 03009345-01
Item W210 item no. 03009350-01
