User Manual SIPLAC E CF 2 Operational safety Software Vers ion SR.408.xx 03/2006 US Ed ition 2.2 Warning labels 31 2.2.2.2 W arning la bel W205 on the used tape channel and on the waste tape chut e 2 Fig. 2.2 - 6 Warning…
2 Operational safety User Manual SIPLACE CF
2.2 Warning labels Software Version SR.408.xx 03/2006 US Edition
30
2.2.2.1 Warning label W205 on the tape cutter
2

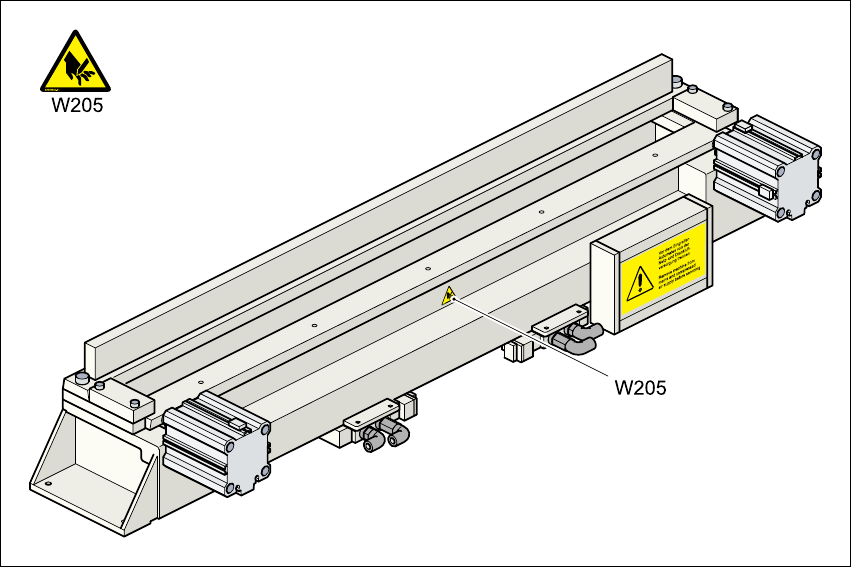

Fig. 2.2 - 5 Warning label W205 on the top of the tape cutter
2
Item W205 item no. 03009344-01
User Manual SIPLACE CF 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.2 Warning labels
31
2.2.2.2 Warning label W205 on the used tape channel and on the waste tape chute
2

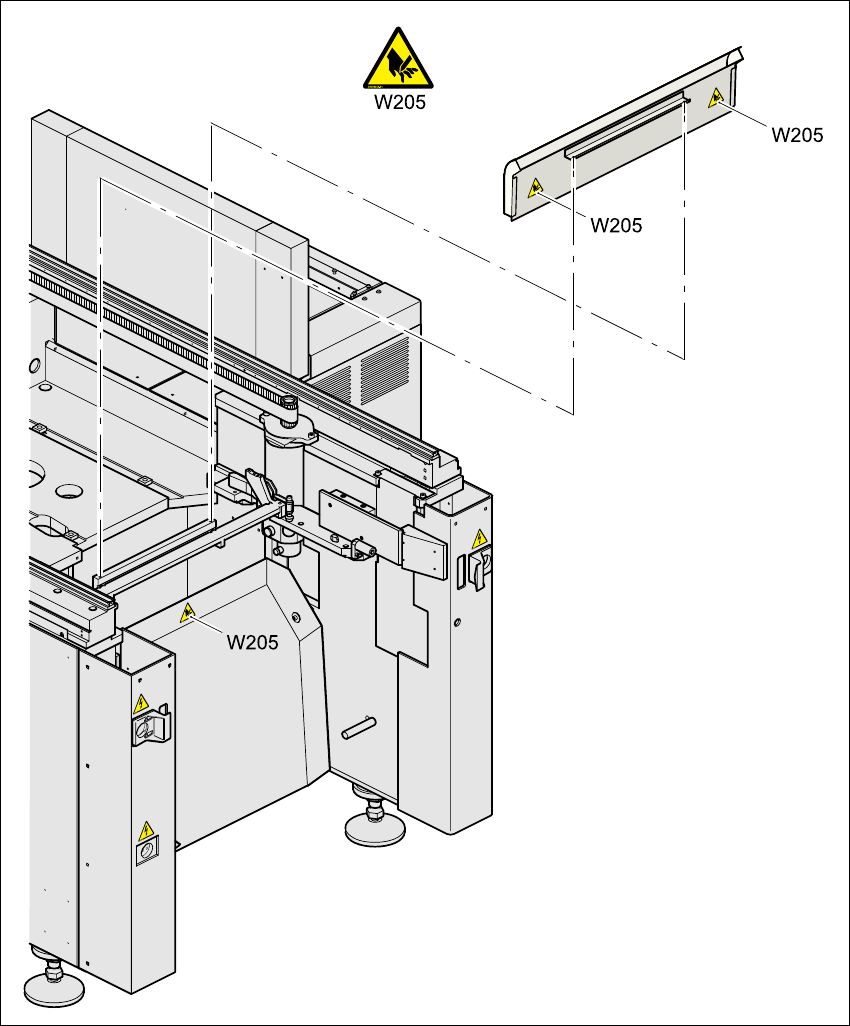

Fig. 2.2 - 6 Warning label W205 on the used tape channel and on the waste tape chute
2
Item W205 item no. 03009344-01
2 Operational safety User Manual SIPLACE CF
2.2 Warning labels Software Version SR.408.xx 03/2006 US Edition
32
2.2.3 Warning label W207
2
Item W 207 in Figs. 2.2 - 7 and 2.2 - 8 (number per placement system: 2)
2.2.3.1 Warning label W207 on the servo unit Macrolon panel
2

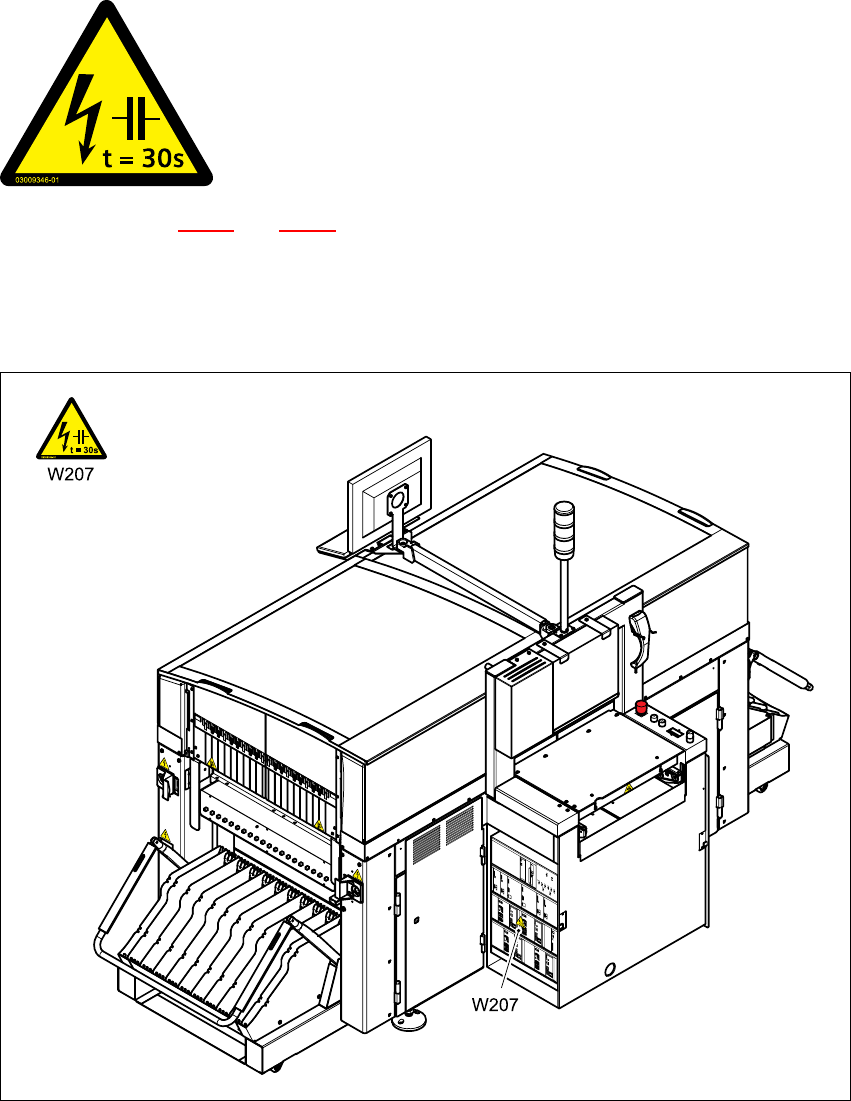

Fig. 2.2 - 7 Warning label W207 on the servo unit Macrolon panel
2
Item W207, item no. 03009346-01
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
