2 Operational safety User Manual SIPLACE CF 2.2 Warning labels Software Version S R.408.xx 03/2006 US Edition 34 2.2.4 W arning label W21 1 on t he CEKON plug 2 Warning label W 211 (numb er per p lacemen t system : 1) 2 …
User Manual SIPLACE CF 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.2 Warning labels
33
2.2.3.2 Warning label W207 on the PCB conveyor control unit
2

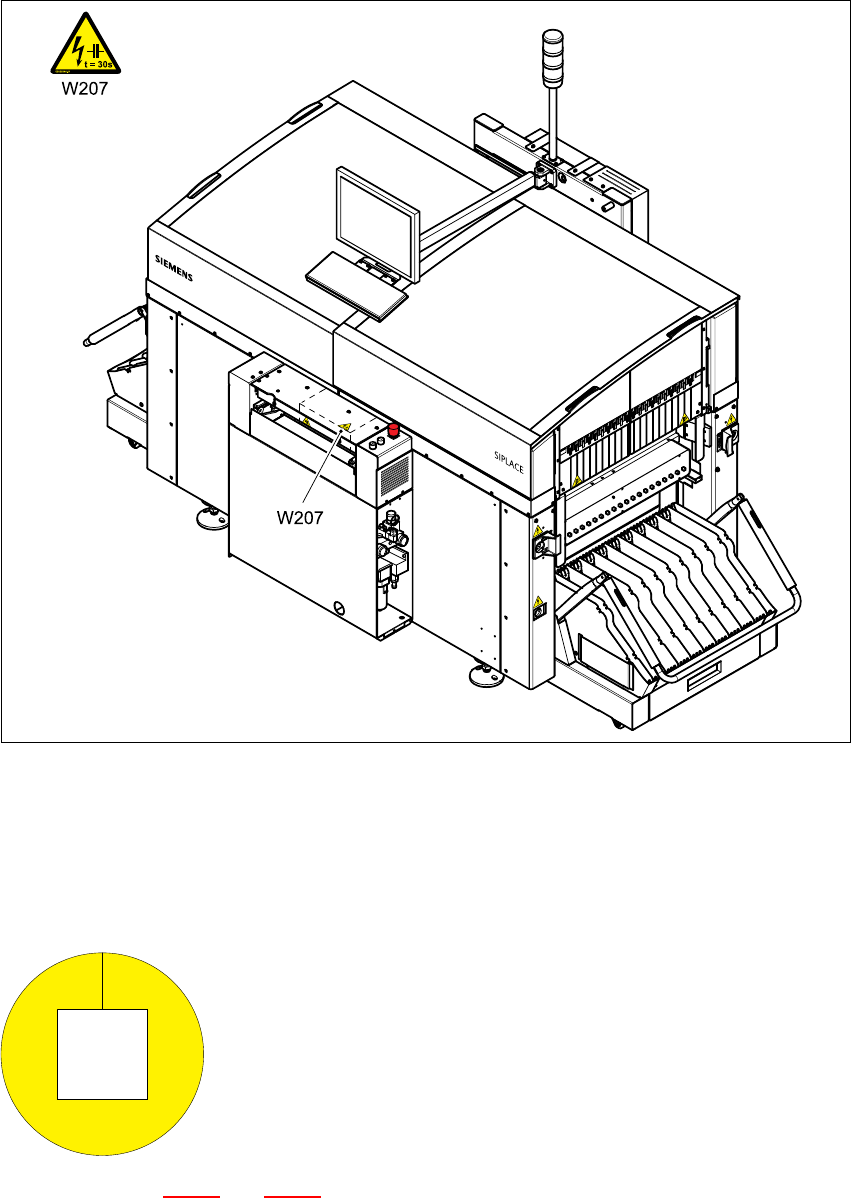

Fig. 2.2 - 8 Warning label W207 on the PCB conveyor control unit
Item W207, item no. 03009346-01
2.2.3.3 Warning label W210
2
Item W210 in Fig. 2.2 - 1 and 2.2 - 2, item no. 03009350-01 (number per placement system: 2)
2
2
2
2
2
2
Warning label on the EMERGENCY STOP button
2 Operational safety User Manual SIPLACE CF
2.2 Warning labels Software Version SR.408.xx 03/2006 US Edition
34
2.2.4 Warning label W211 on the CEKON plug
2
Warning label W 211 (number per placement system: 1)
2

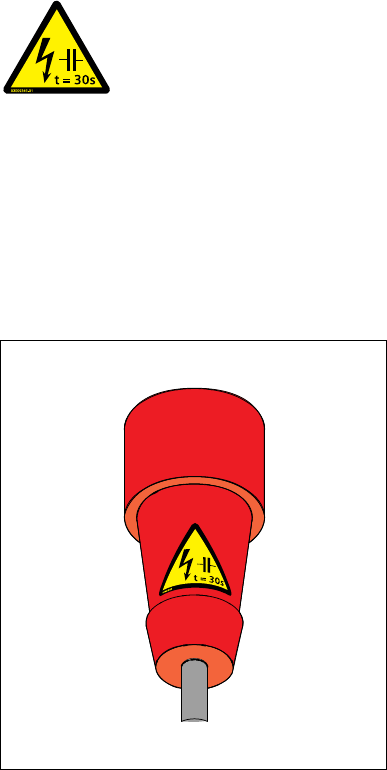

Fig. 2.2 - 9 Warning label W211 on the CEKON plug
2
Warning label W211, item no. 03009351-01
2
RESIDUAL VOLTAGE!
Wait 30 seconds after disconnecting the main power plug from the mains to
allow any residual voltages to dissipate.
NAFTA region: Hazardous Voltage
Residual power at plug prongs and wire ends will cause death or serious injury.
Avoid contact with power plug and/or wire ends for 30 seconds
User Manual SIPLACE CF 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.2 Warning labels
35
2.2.5 Warning label W209 on the EMERGENCY STOP buttons
2
Warning label W209 (number per placement system: 2)
2
Fig. 2.2 - 10 Warning label W209 on the EMERGENCY STOP buttons
Item W209, item no. 03009349-01
2
2
2
2
2
2
2
For Australia, Canada, Mexico and USA, warning
label W209 is affixed to the extension kit instead
of the yellow ring on the EMERGENCY STOP
buttons.
