2.2.5 Warning label W209 on the EMERGENCY STOP buttons
2
Warning label W209 (number per placement system: 2)
2
Fig. 2.2 - 10 Warning label W209 on the EMERGENCY STOP buttons
Item W209, item no. 03009349-01
2
2
2
2
2
2
2
For Australia, Canada, Mexico and USA, warning
label W209 is affixed to the extension kit instead
of the yellow ring on the EMERGENCY STOP
buttons.
2 Operational safety User Manual SIPLACE CF
2.2 Warning labels Software Version SR.408.xx 03/2006 US Edition
36
2.2.6 Warning label "Danger of crushing" on the component trolley
2
Warning label "Danger of Crushing" (number per component trolley: 2)
2

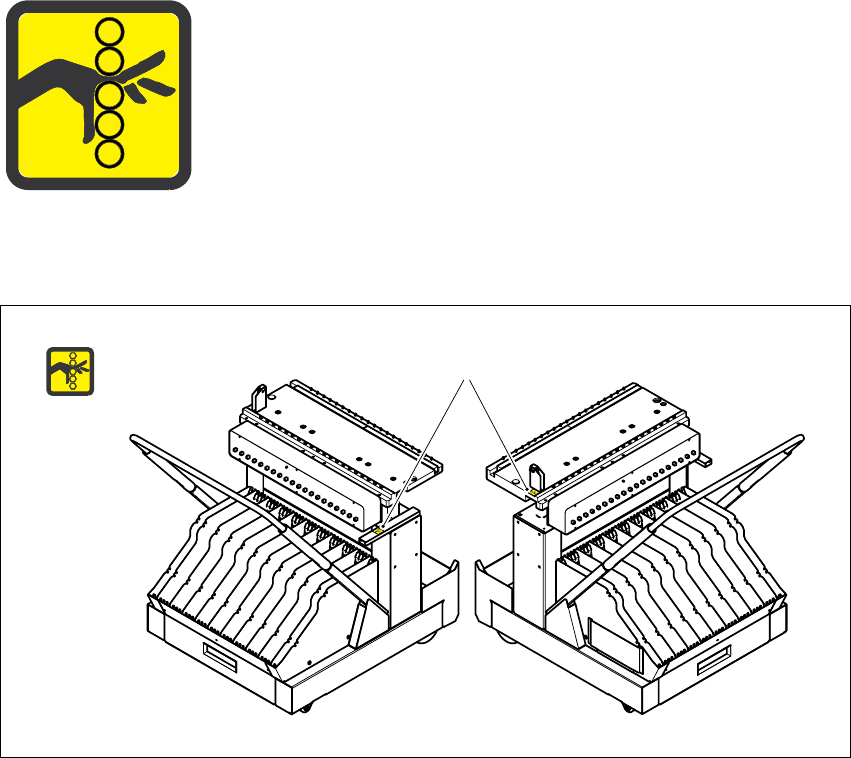

Fig. 2.2 - 11 Warning label Danger of crushing on the component trolley
2
Warning label Danger of crushing, item no. 00343357-01
2
2
2
WARNING DANGER OF CRUSHING!
Do not place your hands in the danger area
when lowering the component feeder table.
DANGER OF CRUSHING!
User Manual SIPLACE CF 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.2 Warning labels
37
2.2.7 Warning labels on the waffle-pack changer
2
Fig. 2.2 - 12 Warning labels on the waffle-pack changer
2
Warning label WPC 80F, item no. 00321262-02 (number per WPC: 1)
WARNING!
Remove IC vision illumination unit before
docking or undocking the machine!
> DANGER OF A CRASH <
Move the waffle-pack changer only over flat
and level floors!
The waffle-pack storage unit must be in its
LOWEST POSITION before transportation!
> DANGER OF OVERTURNING! <
