2.4 Safety instructions for operating the machine
2.4.1 Safety instructions for docking and undocking the component trolley
2

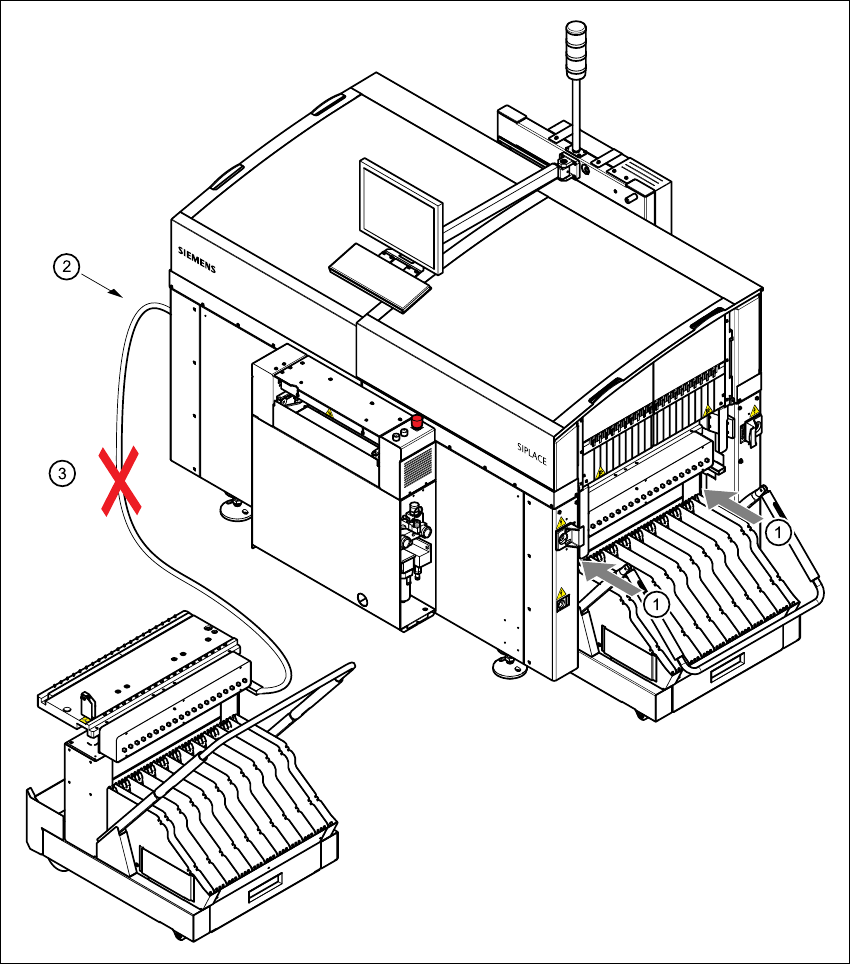

Fig. 2.4 - 1 Safety instructions on the component trolley
2 Operational safety User Manual SIPLACE CF
2.4 Safety instructions for operating the machine Software Version SR.408.xx 03/2006 US Edition
40
WARNING 2
Æ Never reach into the gap between the component trolley and the placement system frame
(item 1 in Fig. 2.4 - 1
).
Æ Always check that the component trolley is docked on the placement system before connecting
or disconnecting the power cable for the component trolley at the socket on the placement sys-
tem (item 2 in Fig. 2.4 - 1
).
Æ NEVER connect the connecting cable for the component trolley to the socket on the placement
system and then operate the component trolley outside the machine via the compressed air
control unit (item 3 in Fig. 2.4 - 1).
2.4.2 Safety instructions for lowering the component table bed
WARNING DANGER OF CRUSHING 2
When lowering the component table bed, never reach into the gap between the feeders and the
used tape channel. 2
2.4.3 Safety instructions for changing the table height of component trolleys
WARNING DANGER OF CRUSHING 2
Remove all the feeders from the component table bed, before you adjust the table height of the
component trolley.
Act with considerable care during the conversion process because the table bed is very heavy.
Conversion of the component trolley to other PCB transport heights is described in Section 4.3
on
page 111. 2
