User Manual SIPLAC E CF 3 Technical data Software Version SR.408.xx 03/2006 US Edition 3.3 Technical data – ratings 71 3.3 T echn ical dat a – rating s 3.3.1 T echnical dat a – el ectrical rat ings 3 3.3.2 T echnical dat…
3 Technical data User Manual SIPLACE CF
3.2 Electrical and pneumatic connection points Software Version SR.408.xx 03/2006 US Edition
70
WARNING
NEVER detach compressed air lines while they are still pressurized. Risk of injury! 3

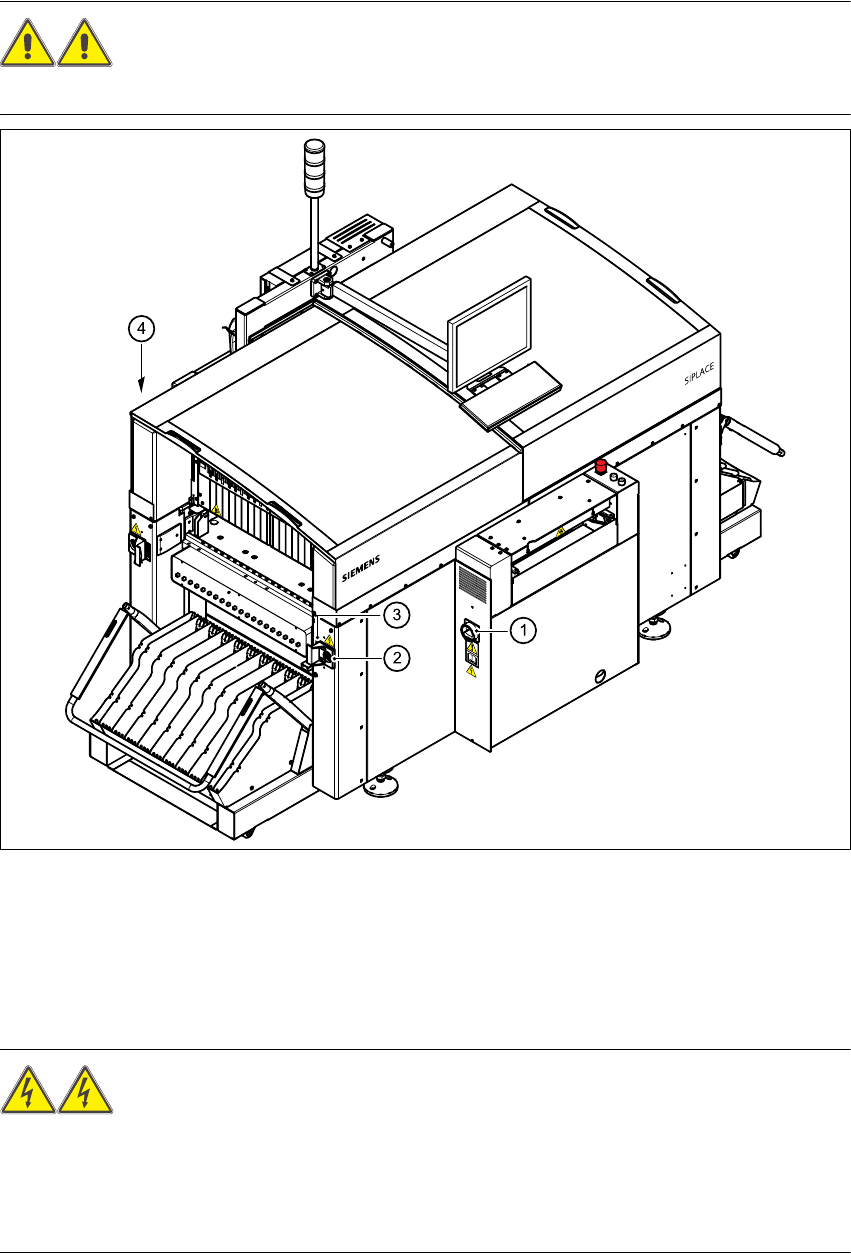

Fig. 3.2 - 2 Electrical and pneumatic connection points on the placement system - part 2
(1) Main power switch
(2) Power supply connection for component trolley
(3) Communications connection for component trolley
(4) LAN connection (RJ45) in the control unit
WARNING
The placement system is supplied with 3 x 400 V~ or 3 x 208 V~ US version) ± 5%, 50/60 Hz
main power voltage. This means that some parts of the system carry potentially lethal voltages
- even when switched off at the main power switch. Death, serious injury or considerable damage
may result if this automatic placement system is handled incorrectly. 3
User Manual SIPLACE CF 3 Technical data
Software Version SR.408.xx 03/2006 US Edition 3.3 Technical data – ratings
71
3.3 Technical data – ratings
3.3.1 Technical data – electrical ratings
3
3.3.2 Technical data – compressed air supply
3
3.3.3 Technical data – compressed air specification
Maximum particle size by density, based on ISO/DIS 8573-1 (class 1)
3.3.4 Technical data – noise emissions
3
3.3.5 Technical data – permissible ambient factors
3
Supply voltage 3 x 400 VAC ± 5 %; 50/60 Hz (Europe)
3 x 208 VAC ± 5 %; 50/60 Hz (U.S.A.)
3 x 200 VAC ± 5 %; 50/60 Hz (Japan)
Fuses 3 x 16 A (3 x 400 VAC, 3 x 208 VAC, 3 x 200 VAC)
Nominal apparent power 1,3 kVA
Rated current consumption 3.4 A / 3 x 400 VAC
Power failure Max. 20 msec
Compressed air pressure Min. 0.55 MPa (5.5 bar) to 1.0 MPa (10 bar), ½"-connection
Compressed air consumption 400 Nl/min.
Operating pressure Set to 0.52 MPa (5.2 bar)
Particle size 0.1 µm
Particle density 0.1 mg/m³
Maximum oil content (class 1) Particle density 0.01 mg/m³
Pressure dewpoint (class 4) Dewpoint +3°
Max. noise emissions 74dB(A)
Room temperature Between 15°C and 35°C
Atmospheric humidity 30 to 80%
(but no higher than 45% on average in order to prevent any
possibility of condensation on the machine).
3 Technical data User Manual SIPLACE CF
3.4 Dimensions and weight of the placement system Software Version SR.408.xx 03/2006 US Edition
72
3.4 Dimensions and weight of the placement system
3.4.1 Dimensions of the placement system
3
Fig. 3.4 - 1 Dimensions of the placement system in millimeters
