3 Technical data User Manual SIP LACE CF 3.4 Dimensions and weight of the placement sys tem Software Version SR. 408.xx 03/2006 US Edition 76 3.4.6 Dimensions of the placement ma chine with WPC and component trolley 3 Fi…
User Manual SIPLACE CF 3 Technical data
Software Version SR.408.xx 03/2006 US Edition 3.4 Dimensions and weight of the placement system
75
3.4.5 Maneuvring radius of the component trolley
3

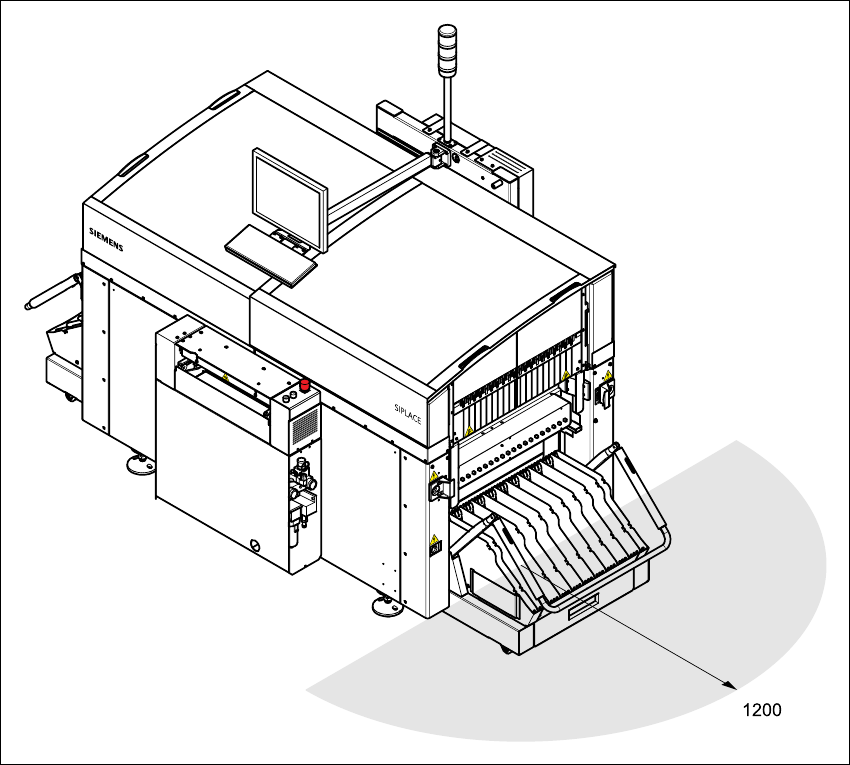

Fig. 3.4 - 4 Maneuvring radius of the component trolley in millimeters
3 Technical data User Manual SIPLACE CF
3.4 Dimensions and weight of the placement system Software Version SR.408.xx 03/2006 US Edition
76
3.4.6 Dimensions of the placement machine with WPC and component trolley
3

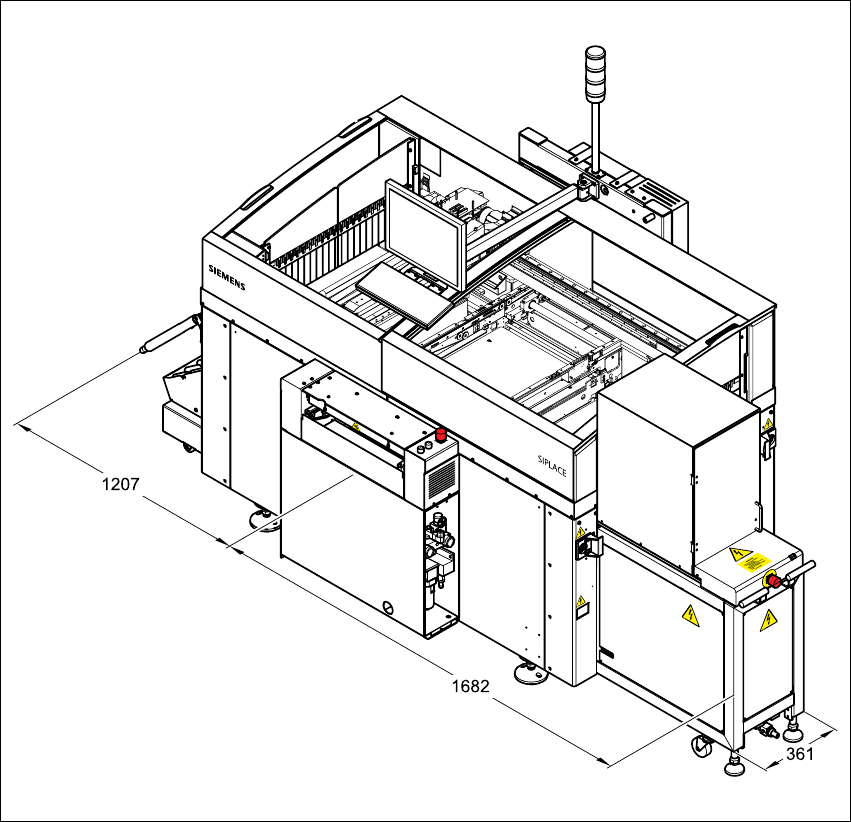

Fig. 3.4 - 5 Dimensions of the placement machine with WPC and component trolley in millimeters
User Manual SIPLACE CF 3 Technical data
Software Version SR.408.xx 03/2006 US Edition 3.5 Controls
77
3.5 Controls
3.5.1 Position of the controls
3

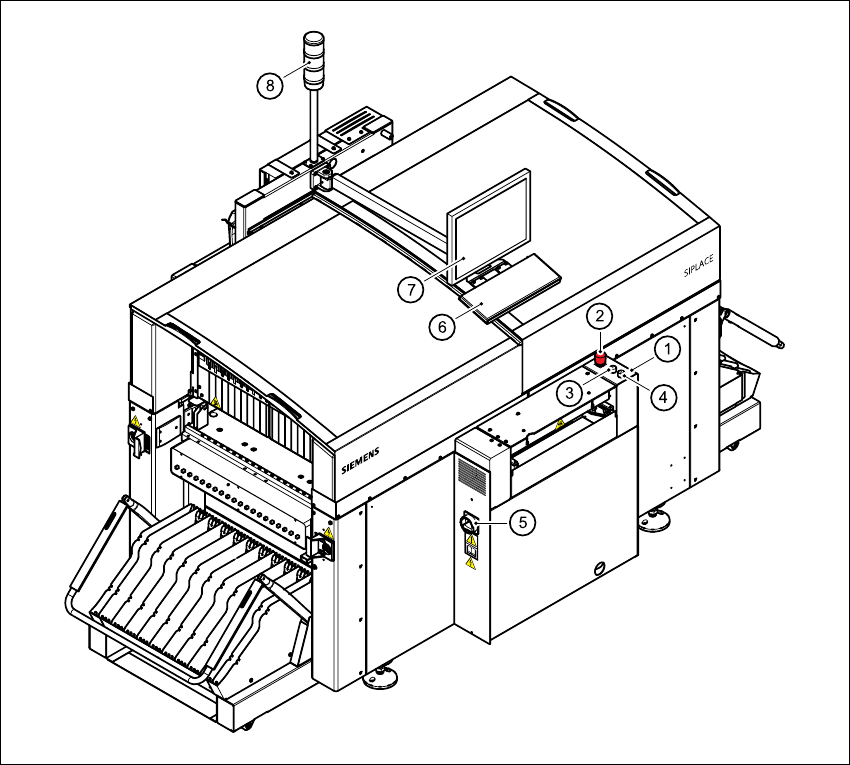

Fig. 3.5 - 1 Overview of the modules - controls - part 1
(1) Operator panel, input conveyor
(2) EMERGENCY STOP button
(3) Start button (white)
(4) Stop button (black)
(5) Main power switch
(6) Keyboard with trackball
(7) Monitor
(8) Indicator lamp
