3 Technical data User Manual SIPLACE CF
3.7 Gantry Software Version SR.408.xx 03/2006 US Edition
84
3.7 Gantry
3.7.1 Position of the gantry
3

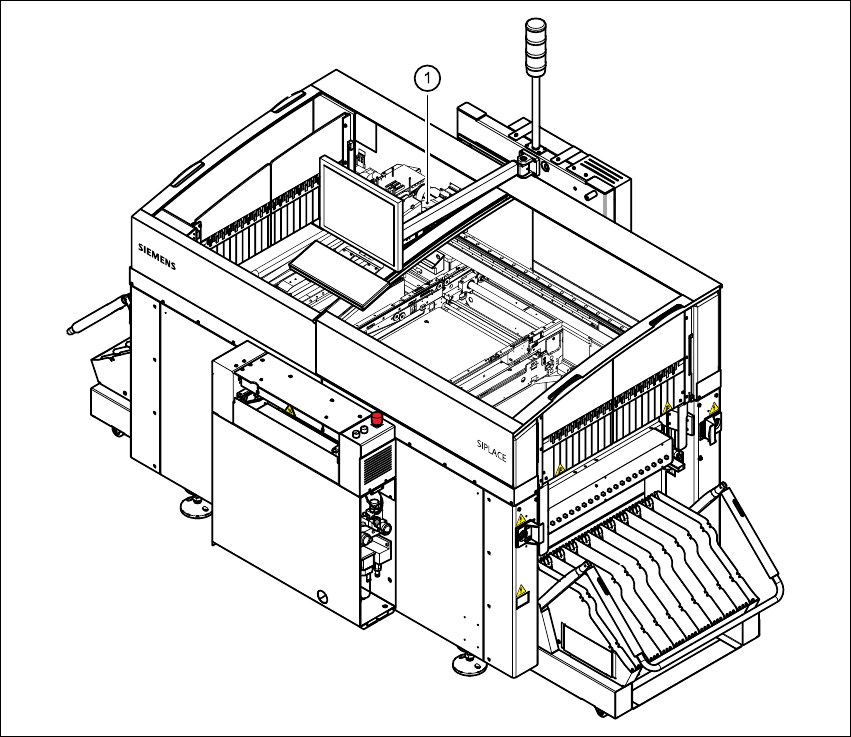

Fig. 3.7 - 1 Position of the gantry
3
(1) Gantry 1
The gantry system consists of two functional groups
–X-axis and
–Y-axis
User Manual SIPLACE CF 3 Technical data
Software Version SR.408.xx 03/2006 US Edition 3.7 Gantry
85
3.7.2 Structure of the X axis
3

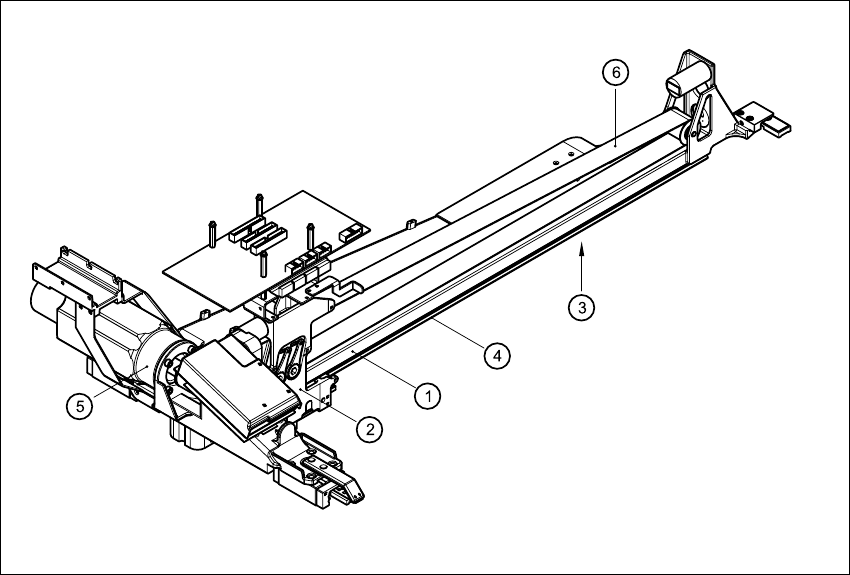

Fig. 3.7 - 2 Structure of the X-axis
3
The X-axis essentially consists of the following main modules:
– Gantry arm (1)
– Head mount (2)
– X-axis measuring system (3)
– X-axis guide system (4)
– X-axis three-phase AC servomotor (5)
– Toothed belt (6)
The head mount holds the following components
– sub-gantry camera (camera for the PCB vision module)
– head board
– measuring head for the X-axis measuring system
– Collect&Place head / Pick&Place head
3 Technical data User Manual SIPLACE CF
3.7 Gantry Software Version SR.408.xx 03/2006 US Edition
86
3.7.3 Technical data for the X axis
3
3.7.4 Structure of the Y axis
The Y-axis essentially consists of the following main modules:
– Y-axis three-phase AC servomotor
– Y-axis toothed belt
– Y-axis guide system
– Y-axis measuring system
The Y axis is driven by a three-phase AC servomotor. An anti-crash circuit limits the gantry tra-
versing path.
3.7.5 Technical data for the Y-axis
3
Drive Three-phase AC servomotor/toothed belt
Maximum speed 2.5 m/sec.
Traversing path 620 mm
Distance measuring system Metal linear scale
Scale length 646 mm
Resolution 1.0 µm
Drive Three-phase AC servomotor/toothed belt
Maximum speed 2.5 m/sec.
Traversing path 910 mm
Distance measuring system Metal linear scale
Scale length 970 mm
Resolution 1.0 µm
