1 KXFP02ZAA00 MAGNET-CONTACTOR SC-03 coil AC100V 1a 2 2 KXFP031AA00 MAGNET-SW SW-03 main circuit AC200V 0.4kW coil AC100V 1a 2 3 331JC090030 CP CP31FS-10D 1 4 331JC090040 CP CP31FS-10D 1 5 KXFP5XSAA00 CP CP31FM-5 2 6 KXF…

1 KXFP02ZAA00 MAGNET-CONTACTOR SC-03 coil AC100V 1a 2

2 KXFP031AA00 MAGNET-SW SW-03 main circuit AC200V 0.4kW coil AC100V 1a 2

3 331JC090030 CP CP31FS-10D 1

4 331JC090040 CP CP31FS-10D 1

5 KXFP5XSAA00 CP CP31FM-5 2

6 KXFP57QAA00 SK R･A･V-781BXZ-2A 1

7 KXFP5Z4AA00 POWER R150U-12-XKMD 1

8 KXFP5C9AA00 METER TH632 1

9 KXFP4F1AA00 TERMINAL-BLOCK BTBH30CU8 1

13 KXFP5Y6AA00 TERMINAL-BLOCK BTBH30CU21 1

14 KXFP2NBAA00 NF SZ-ZM2 2

15 KXFP5TDAA00 SK XEB1201 5

16 KXFP5TRAA00 MAGNET-COVER SZ-T1 4

17 KXFP5TSAA00 MAGNET-COVER TZ-T12 2

18 RL13CAM0000 PCB 2

19 NF1ACAM0000 PCB 2

番号

ＭＯ機番

ユニット名称

ﾊﾟﾜｰﾕﾆｯﾄ:CM202-D

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

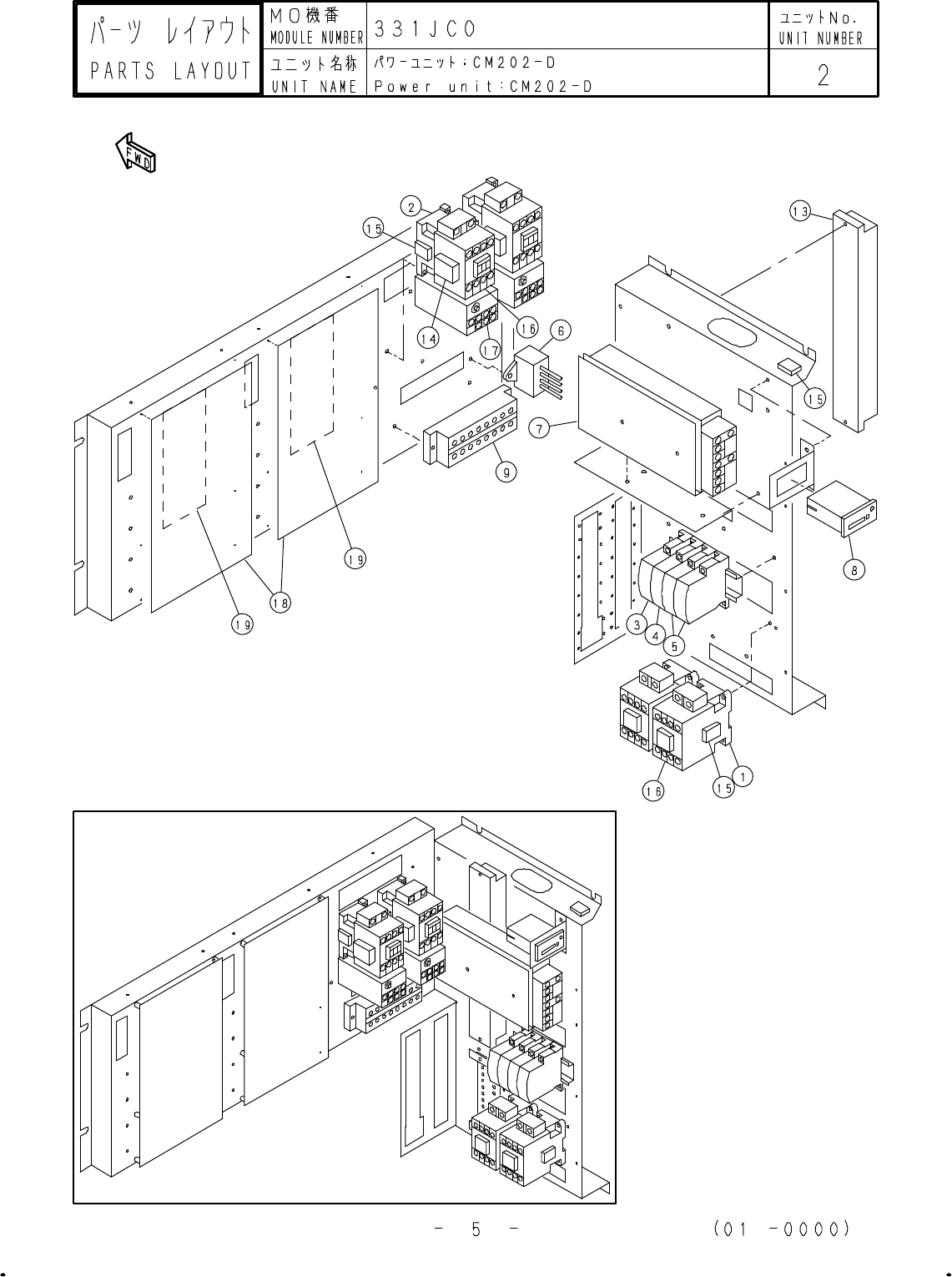

Power unit:CM202-D

PART LIST

MODULE NUMBER

パーツリスト

331JC0M0000

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −6 02 0001−（）
