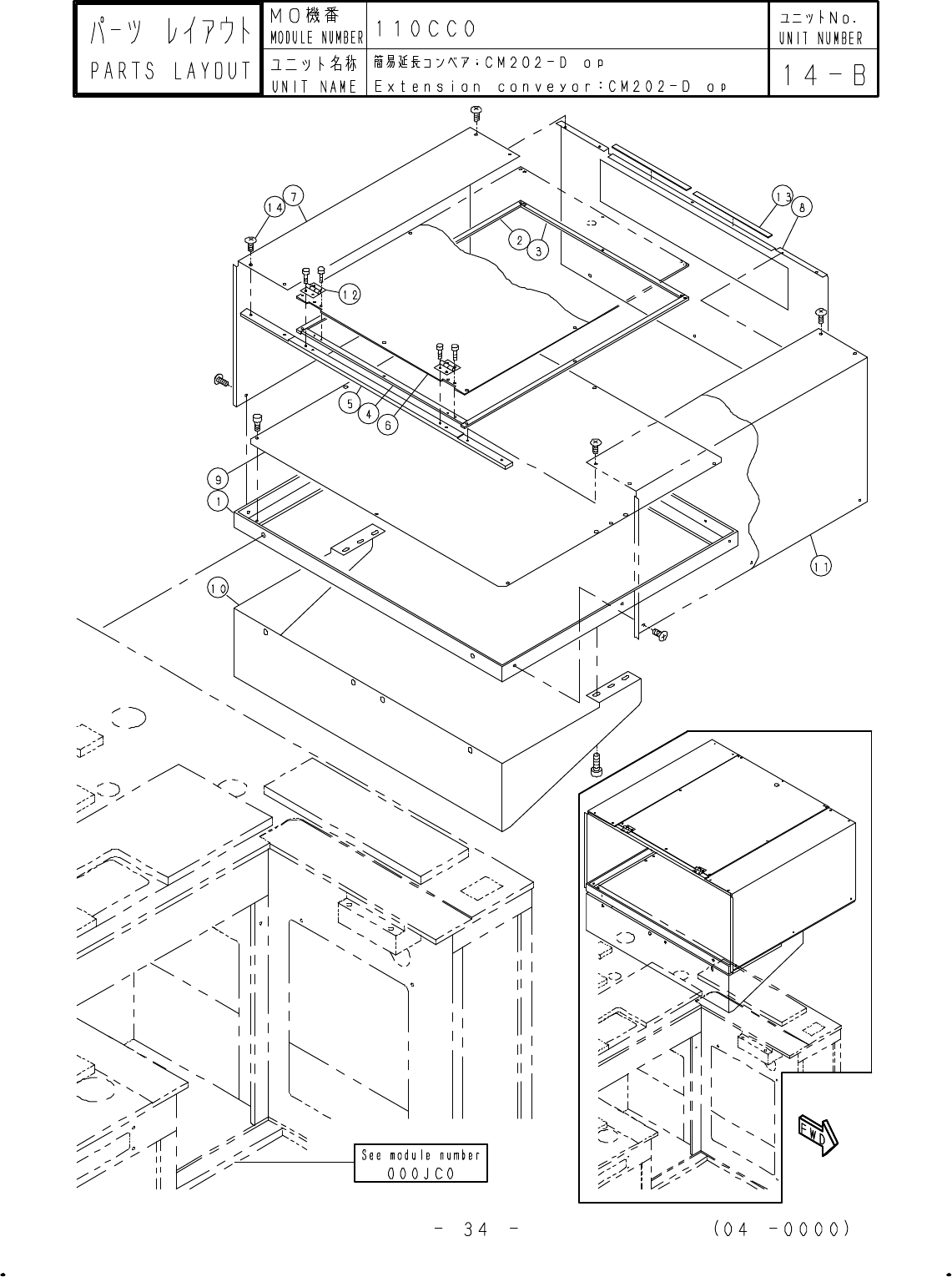

1 110CC011150 FRAME 1 2 110CC011160 BRACKET 2 3 110CC011170 BRACKET 1 4 110CC011180 BRACKET 1 5 110CC011190 BRACKET 1 6 110CC011200 COVER 1 7 110CC061140 COVER 1 8 110CC061150 COVER 1 9 110CC061160 COVER 1 10 110CC061170…

1 110CC011150 FRAME 1

2 110CC011160 BRACKET 2

3 110CC011170 BRACKET 1

4 110CC011180 BRACKET 1

5 110CC011190 BRACKET 1

6 110CC011200 COVER 1

7 110CC061140 COVER 1

8 110CC061150 COVER 1

9 110CC061160 COVER 1

10 110CC061170 BRACKET 1

11 110CC061180 COVER 1

12 KXF065SAA00 HINGE B-1027-1 2

13 KXF01CNAA00 MAGNET C-200-4 2

14 KXF04ETAA00 BOLT Cross recessed truss head screw M4×8L 35

番号

ＭＯ機番

ユニット名称

延長ｺﾝﾍﾞｱ:CM202-D op

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Extensional conveyor:CM202-D op

PART LIST

MODULE NUMBER

パーツリスト

110CC0M0000

14-B

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −35 05 0000−（）
