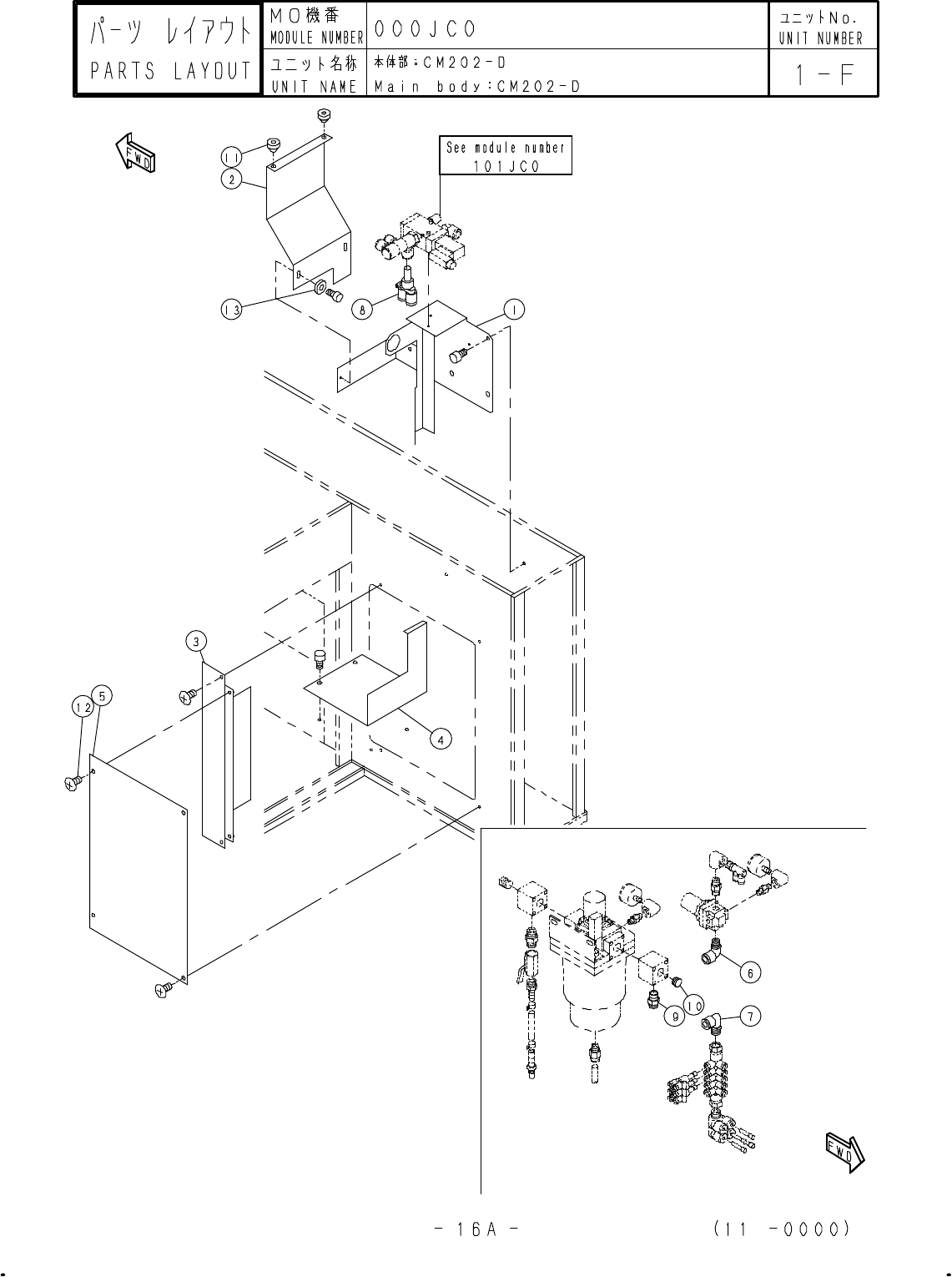

CM202 Mechanical - 第29页

1 000JC061510 BRACKET 1 2 000JC061520 PLATE 1 3 000JC061530 COVER 1 4 000JC061540 COVER 1 5 000JC061550 COVER 1 6 KXF02CKAA00 JOINT KQL12-02S 1 7 KXF02CMAA00 JOINT KQL12-03S 1 8 KXF09ERAA00 JOINT KQU12-99 1 9 KXF02BHAA00…

1 000JC061510 BRACKET 1

2 000JC061520 PLATE 1

3 000JC061530 COVER 1

4 000JC061540 COVER 1

5 000JC061550 COVER 1

6 KXF02CKAA00 JOINT KQL12-02S 1

7 KXF02CMAA00 JOINT KQL12-03S 1

8 KXF09ERAA00 JOINT KQU12-99 1

9 KXF02BHAA00 JOINT KQH12-03S 1

10 KXF0A3UAA00 PLUG MSWT3 1

11 KXF01E1AA00 RUBBER-CUSHION C-30-CS-3 2

12 KXF082YAA00 BOLT Cross recessed truss head screw M6×12L 6

13 KXF04BGAA00 WASHER Thick washer for M5 2

番号

ＭＯ機番

ユニット名称

本体部:CM202-D

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Main body:CM202-D

PART LIST

MODULE NUMBER

パーツリスト

000JC0M0000

1-F

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −16B 12 0000−（）
