1 000KC061100 BRACKET 16

2 KXF04BGAA00 WASHER Thick washer for M5 64

3 000KC012010 SPACER 6

4 000KC062010 COVER 1

5 000KC062020 COVER 1

6 000KC062030 COVER 2

7 000KC062040 COVER 2

8 000KC062050 COVER 1

9 000KC062060 COVER 1

10 000KC082010 HINGE BA-51-1(DA) 8

11 000KC082020 HINGE BA-51-1(DA) 4

12 KXF01BLAA00 MAGNET C-100-A-2 8

13 KXF04F2AA00 SCREW Cross recessed truss head screw M6×10L 16

14 KXF04ETAA00 SCREW Cross recessed truss head screw M4×8L 6

番号

ＭＯ機番

ユニット名称

全体ｶﾊﾞｰ:CM202-D

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

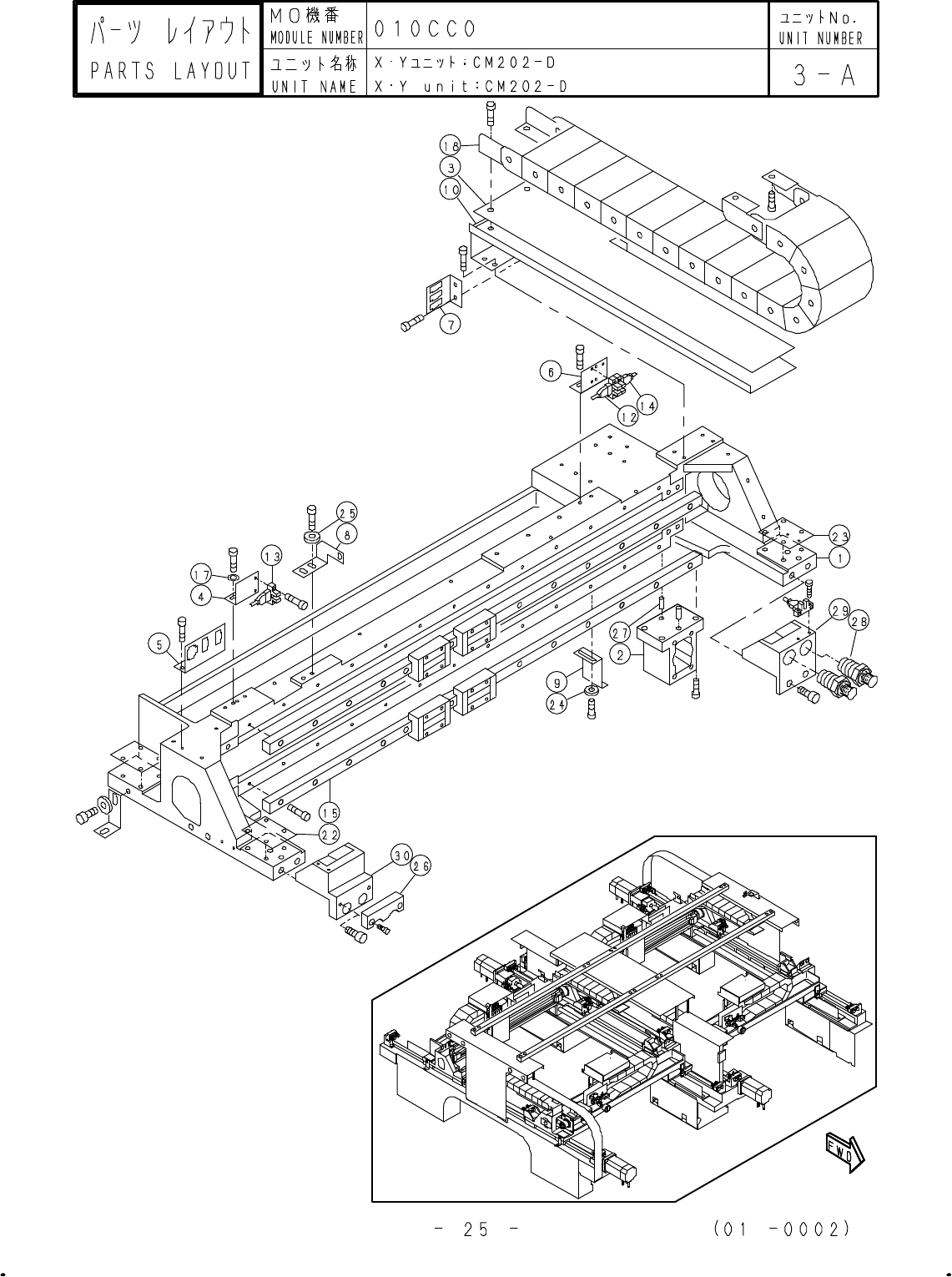

Overall cover:CM202-D

PART LIST

MODULE NUMBER

パーツリスト

000KC0M0000

2-D

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −24 08 0001−（）

1 010CC012031 FRAME 4

2 010CC013020 HOLDER 4

3 010CC013120 SHEET 4

4 010CC062040 BRACKET 4

5 010CC062050 BRACKET 4

6 010CC062060 BRACKET 4

7 010CC062090 BRACKET 4

8 010CC062120 BRACKET 4

9 010CC063010 DOG 4

10 010CC063030 BRACKET 4

12 010CC082050 PH-SENSOR PM-L53-C1(DA) 4

13 010CC082060 PH-SENSOR PM-L53B-C1(DA) 4

14 010CC082070 PH-SENSOR PM-L53B-C1(DA) 4

15 010CC082111 LM-GUIDE SSR15W2UUC1+760LYH-II(DA) 8

17 KXF04BEAA00 WASHER Thick washer for M4 16

18 010CC083113 CABLE-BEAR 25.4-055BB-15-24B(DA) 4

22 010CC062200 PLATE 12

23 010CC062210 PLATE 4

24 KXF04BEAA00 WASHER Thick washer for M4 8

25 KXF04BGAA00 WASHER Thick washer for M5 20

26 010CC013260 STOPPER 4

27 KXF02YRAA00 D-PIN MS6-15 12

28 010CC083250 SHOCK-ABSORBER FED-2010M-C-MA1 24

29 010CC013240 BLOCK 4

30 010CC013250 BLOCK 4
