1 010CC012031 FRAME 4

2 010CC013020 HOLDER 4

3 010CC013120 SHEET 4

4 010CC062040 BRACKET 4

5 010CC062050 BRACKET 4

6 010CC062060 BRACKET 4

7 010CC062090 BRACKET 4

8 010CC062120 BRACKET 4

9 010CC063010 DOG 4

10 010CC063030 BRACKET 4

12 010CC082050 PH-SENSOR PM-L53-C1(DA) 4

13 010CC082060 PH-SENSOR PM-L53B-C1(DA) 4

14 010CC082070 PH-SENSOR PM-L53B-C1(DA) 4

15 010CC082111 LM-GUIDE SSR15W2UUC1+760LYH-II(DA) 8

17 KXF04BEAA00 WASHER Thick washer for M4 16

18 010CC083113 CABLE-BEAR 25.4-055BB-15-24B(DA) 4

22 010CC062200 PLATE 12

23 010CC062210 PLATE 4

24 KXF04BEAA00 WASHER Thick washer for M4 8

25 KXF04BGAA00 WASHER Thick washer for M5 20

26 010CC013260 STOPPER 4

27 KXF02YRAA00 D-PIN MS6-15 12

28 010CC083250 SHOCK-ABSORBER FED-2010M-C-MA1 24

29 010CC013240 BLOCK 4

30 010CC013250 BLOCK 4

番号

ＭＯ機番

ユニット名称

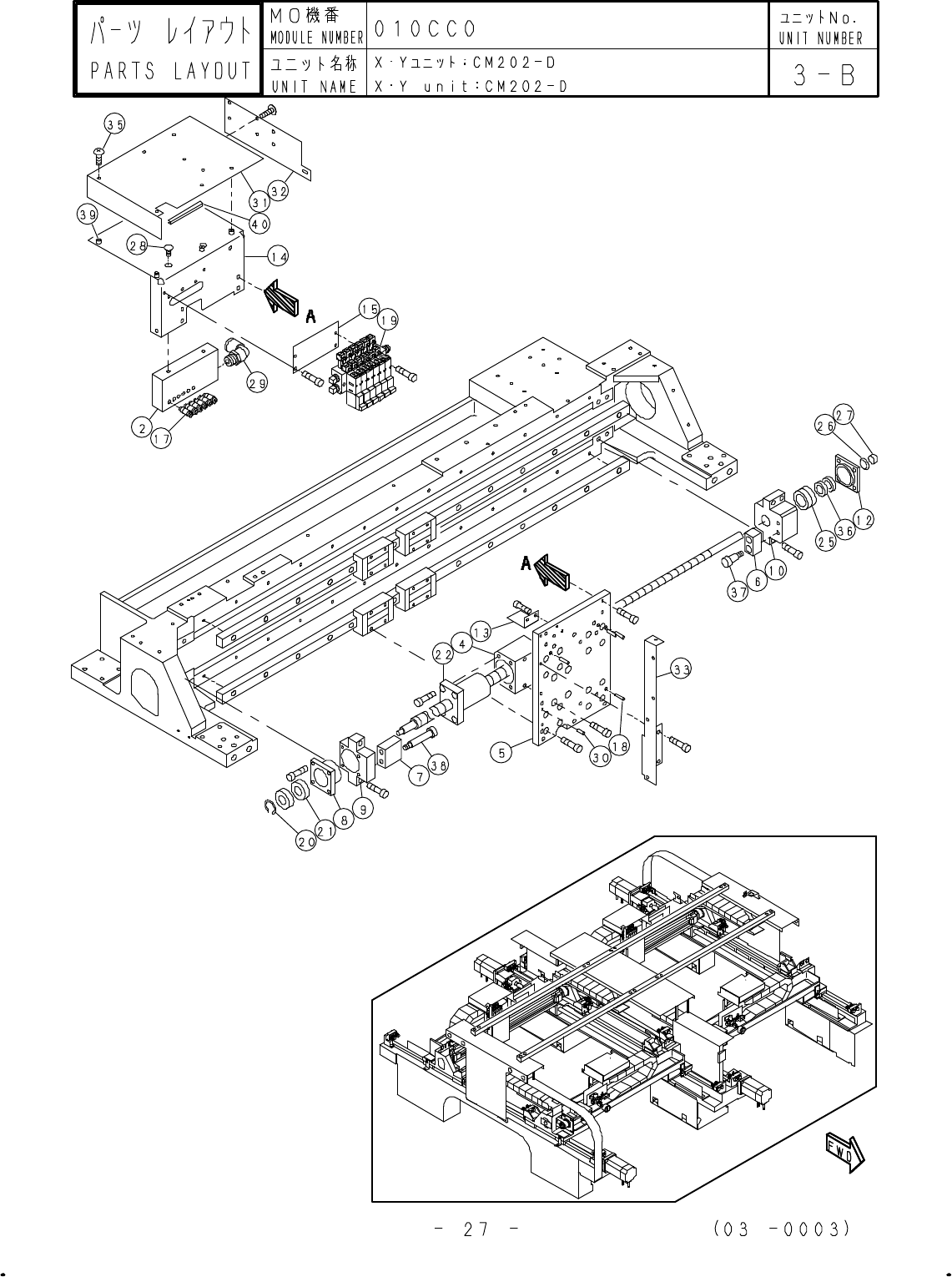

X･Yﾕﾆｯﾄ:CM202-D

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

X･Y unit:CM202-D

PART LIST

MODULE NUMBER

パーツリスト

010CC0M0000

3-A

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −26 02 0002−（）

2 010CC012020 MANIFOLD 4

4 010CC012050 HOUSING 4

5 010CC012061 PLATE 4

6 010CC012081 STOPPER 4

7 010CC012091 STOPPER 4

8 010CC012100 FLANGE 4

9 010CC012110 PLATE 4

10 010CC012130 HOLDER 4

12 010CC012150 HOLDER 4

13 010CC062010 DOG 4

14 010CC062020 BRACKET 4

15 010CC062030 PLATE 4

17 KXF029NAA00 JOINT KJS04-M5 24

18 KXF02Y7AA00 D-PIN MS4-15 8

19 KXFW1DVAA00 VALVE 4

20 KXF04CRAA00 C-RING C-type fixing ring for wheel nominal 10 4

21 KXF00JZAA00 BEARING 6000ZZ 8

22 010CC082101 BALL-SCREW BSF1520AC3T-901E01(DA) 4

25 010CC082200 BEARING 7201CDF/GNP5 4

26 KXF010VAA00 BEARING-WASHER AW01 4

27 KXF00W3AA00 BEARING-NUT AN01 4

28 KXF04LNAA00 BOLT Hexagon socket countersunk head bolt M4×8L 8

29 KXF02CGAA00 JOINT KQL10-02S 4

30 KXF02Y6AA00 D-PIN MS4-10 16
