1 2 010DC011131 HOLDER 6 3 010DC011140 JOINT 6 4 010DC011150 NUT 6 5 010DC011160 COLLAR 6 6 010DC011170 COLLAR 12 7 010DC011200 SPUR-GEAR 6 8 010DC011240 HOLDER 6 9 010DC011250 NOZZLE HOLDER 6 10 010DC011260 HOLDER 6 11 …
1
2 010DC011131 HOLDER 6
3 010DC011140 JOINT 6
4 010DC011150 NUT 6
5 010DC011160 COLLAR 6
6 010DC011170 COLLAR 12
7 010DC011200 SPUR-GEAR 6
8 010DC011240 HOLDER 6
9 010DC011250 NOZZLE HOLDER 6
10 010DC011260 HOLDER 6
11 010DC011270 CLAMP-ARM 13
12 KXF0387AA00 BEARING R-1240ZZ 6
13 KXF04V8AA00 NUT Hexagon nut M4 1-type 6
14 KXF03B9AA00 C-RING RTW-12 6
15 KXF00RWAA00 BEARING A-2015 12
16 KXF05YHAA00 Y-PACKING MYA-6 12
17 KXF09VFAA00 Y-PACKING MYA-15 12
18 KXF0600AA00 O-RING S10 12
19 010DC081280 LM-SHAFT SF6×125(DA) 6 A
20 KXF02J4AA00 LM-BEARING LM61219NUU 12
21 KXF02FHAA00 BEARING L-630ZZ 6
22 010DC081330 D-PIN φ3×8L(Dowel pin for press-type,allowance Atype) 6
23 010DC081341 SPRING Compression spring(DA) 7
24 010DC081370 SPRING Extension spring(DA) 7
25 010DC081380 NEEDLE-ROLLER φ1.5×7.8L C3 6
26 KXF066EAA00 WASHER Small round plain washer for M4 6
27
28 KXF04KAAA00 SCREW Hexagon socket set screw M3×3L 12
29 KXF04KCAA00 SCREW Hexagon socket set screw M3×4L 6
30 010DC081501 FILTER EZH310AS-050(DA) 25 A
NO
番号
ＭＯ機番
ユニット名称

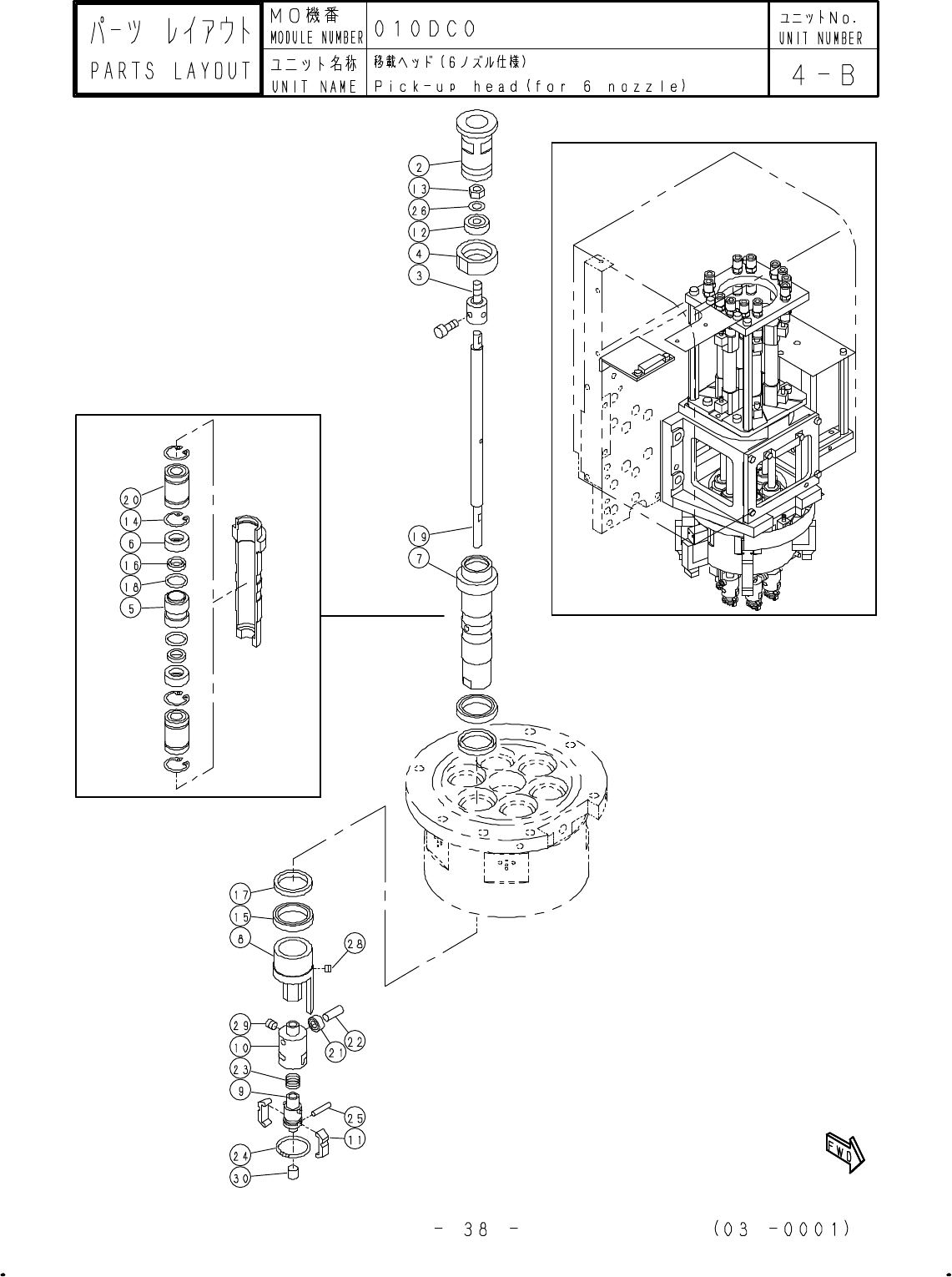

移載ﾍｯﾄﾞ(6 ﾉｽﾞﾙ仕様)
UNIT NAME
PART NUMBER
品番 部品名 型式 数量 ﾗﾝｸ 備考
Pick-up head(6-nozzle type)
PART LIST
MODULE NUMBER
パーツリスト
010DC0M0000
4-B
UNIT NUMBER
ユニットＮｏ.
PART NAME TYPE Q'TY RANK REMARKS
− −39 04 0003−（ ）
