2 010DC011131 HOLDER 6

3 010DC011140 JOINT 6

4 010DC011150 NUT 6

5 010DC011160 COLLAR 6

6 010DC011170 COLLAR 12

7 010DC011200 SPUR-GEAR 6

8 010DC011240 HOLDER 6

9 010DC011250 NOZZLE HOLDER 6

10 010DC011260 HOLDER 6

11 010DC011270 CLAMP-ARM 13

12 KXF0387AA00 BEARING R-1240ZZ 6

13 KXF04V8AA00 NUT Hexagon nut M4 1-type 6

14 KXF03B9AA00 C-RING RTW-12 6

15 KXF00RWAA00 BEARING A-2015 12

16 KXF05YHAA00 Y-PACKING MYA-6 12

17 KXF09VFAA00 Y-PACKING MYA-15 12

18 KXF0600AA00 O-RING S10 12

19 010DC081280 LM-SHAFT SF6×125(DA) 6 A

20 KXF02J4AA00 LM-BEARING LM61219NUU 12

21 KXF02FHAA00 BEARING L-630ZZ 6

22 010DC081330 D-PIN φ3×8L(Dowel pin for press-type,allowance Atype) 6

23 010DC081341 SPRING Compression spring(DA) 7

24 010DC081370 SPRING Extension spring(DA) 7

25 010DC081380 NEEDLE-ROLLER φ1.5×7.8L C3 6

26 KXF066EAA00 WASHER Small round plain washer for M4 6

28 KXF04KAAA00 SCREW Hexagon socket set screw M3×3L 12

29 KXF04KCAA00 SCREW Hexagon socket set screw M3×4L 6

30 010DC081501 FILTER EZH310AS-050(DA) 25 A

番号

ＭＯ機番

ユニット名称

移載ﾍｯﾄﾞ(6 ﾉｽﾞﾙ仕様)

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

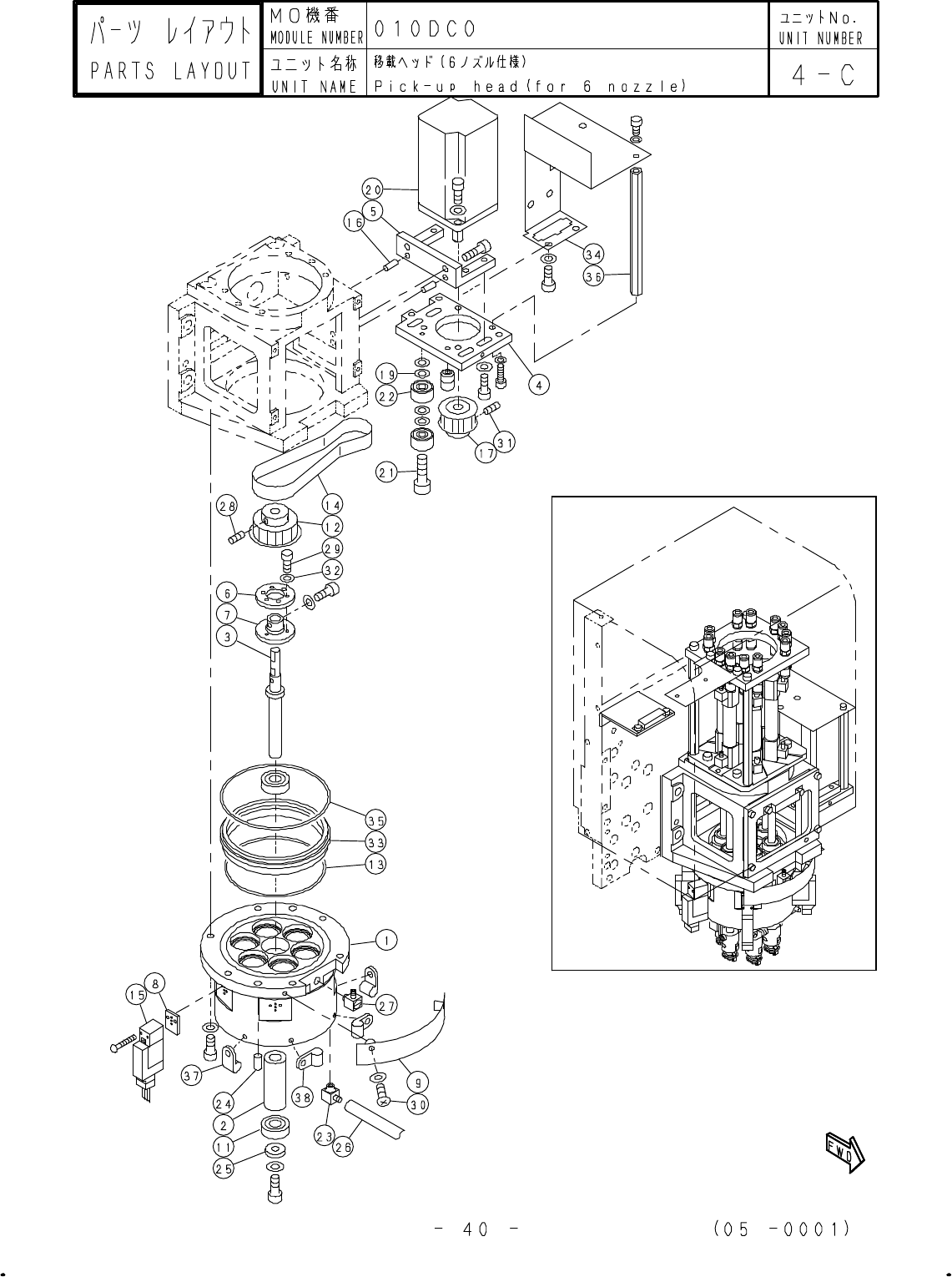

Pick-up head(6-nozzle type)

PART LIST

MODULE NUMBER

パーツリスト

010DC0M0000

4-B

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −39 04 0003−（）

1 010DC011020 HOUSING 1

2 010DC011040 COLLAR 1

3 010DC011050 SHAFT 1

4 010DC011180 PLATE 1

5 010DC011190 BRACKET 1

6 010DC011220 GEAR 1

7 010DC011230 GEAR 1

8 010DC011300 SPACER 6

9 010DC061010 COVER 1

11 KXF078LAA00 BEARING R-1980HH 2

12 010DC081070 PULLEY P32S3M0100B(DA) 1

13 KXF09VEAA00 O-RING S65 1

14 010DC081160 T-BELT B100S3M237 1 A

15 010DC081171 VALVE 10-VQ110U-5MO-X153(DA) 6 A

16 KXF02Y6AA00 D-PIN MS4-10 6

17 KXF033FAA00 PULLEY P24S3M0100B(DA) 1

19 KXF04J8AA00 WASHER Small round plain washer for M3 8

20 010DC081250 MOTOR TS4502N2223E500 1 A

21 KXF04QDAA00 BOLT Hexagon socket head cap screw M3×18L 2

22 KXF09VJAA00 BEARING R-930ZZ 4

23 KXF02SZAA00 ELBOW M-5ALU-4 18

24 KXF02YFAA00 D-PIN MS5-10 2

25 KXF04BGAA00 WASHER Thick washer for M5 1

26 010DC081400 TUBE TFU0425B-6-1-X4(6 core.1m) 1

27 KXF02SZAA00 ELBOW M-5ALU-4 1

28 KXF04KKAA00 SCREW Hexagon socket set screw M4×6L 2

29 KXF04Q2AA00 BOLT Hexagon socket head cap screw M2×6L 3

30 KXF09VHAA00 BOLT Cross recessed round head machine screw M3×12L 3
