1 0305C011350 PLATE 4
2 0305C011360 BRACKET 4
3
4 0305C011470 CYL-NUT 2
5 0305C011480 CYL-NUT 2
6
7 0305C081461 LM-SHAFT SN20×156(DA) 4
8 KXF09VNAA00 SLIDE-BUSH SMT20GWUU 4
9 0305C081480 CYLINDER CM2F40-30A 2
10 KXF02BZAA00 JOINT KQL06-02S 4
11 KXF094AAA00 SCREW-STOPPER ANB6-20 8
12 KXF03M3AA00 STOP-PIN STEH10 8
13 0305C061190 PLATE 2
14 KXF04BJAA00 WASHER Thick washer for M6 4
15 0305C081630 PH-SENSOR PM-K53-C1(DA) 2
16 KXF04BGAA00 WASHER Thick washer for M5 4
17
18
19
20
21
22
23
24
25
26
27
28
29
30
NO
番号
ＭＯ機番
ユニット名称
基板ｺﾝﾍﾞｱR:CM202-D
UNIT NAME
PART NUMBER
品番 部品名 型式 数量 ﾗﾝｸ 備考
Conveyor R:CM202-D
PART LIST
MODULE NUMBER
パーツリスト
0305C0M0000
5-F
UNIT NUMBER
ユニットＮｏ.
PART NAME TYPE Q'TY RANK REMARKS
− −57 13 0001−（ ）
1 0306C011040 COLLAR 2
2 0306C011070 FRAME 1
3 0306C011610 GUIDE 2
4 0306C011620 GUIDE 2
5 0306C061010 BRACKET 1
6 0306C061040 NUT-PLATE 48
7 0306C081010 T-PULLEY 18XL037BF(DA) 2
8 KXF00JZAA00 BEARING 6000ZZ 2
9 KXF03LJAA00 WASHER SSWA17-2.0 1
10 KXF02T3AA00 JOINT M-5AU-4 4
11 KXF02SZAA00 ELBOW M-5ALU-4 24
12 KXF02TLAA00 TEES M-5UT 4
13 KXF07R6AA00 MOTOR KH56KM2-651 1
14 KXF02TMAA00 COUPLING 3085M 6.35-6.35 1
15 0306C081100 BELT 490XL037U 1
16 KXF04BBAA00 WASHER Thick washer for M10 1
17 KXF04BGAA00 WASHER Thick washer for M5 16
18 KXF04KRAA00 SCREW Hexagon socket set screw M5×6L 4
19 0306C081210 BOLT Hexagon head bolt M8×110L all screws(no mark) 2
20 KXF02T4AA00 JOINT M-5AU-6 4
21 KXF02TJAA00 ELBOW M-5UL 4
22 KXF05BGAA00 SPEED-CONTROLLER AS1301F-M5-06 4
23 KXF0A0VAA00 NUT NSML4 12
24 KXF0947AA00 PULLEY CF4-28WVBE02 12
25 KXF0A48AA00 PULLEY CF5-28WVBE02 4
26 0306C081810 BELT 006-F10-1170Z-JVYT(DA) 2 A
27 KXF052RAA00 S-PIN Spring pin φ4×15L 6
28 KXF04VTAA00 NUT Hexagon nut M8 1-type 2
29 KXF04UFAA00 NUT Hexagon nut M10 1-type 1
30 KXF02TCAA00 JOINT M-5J 12
NO
番号
ＭＯ機番
ユニット名称

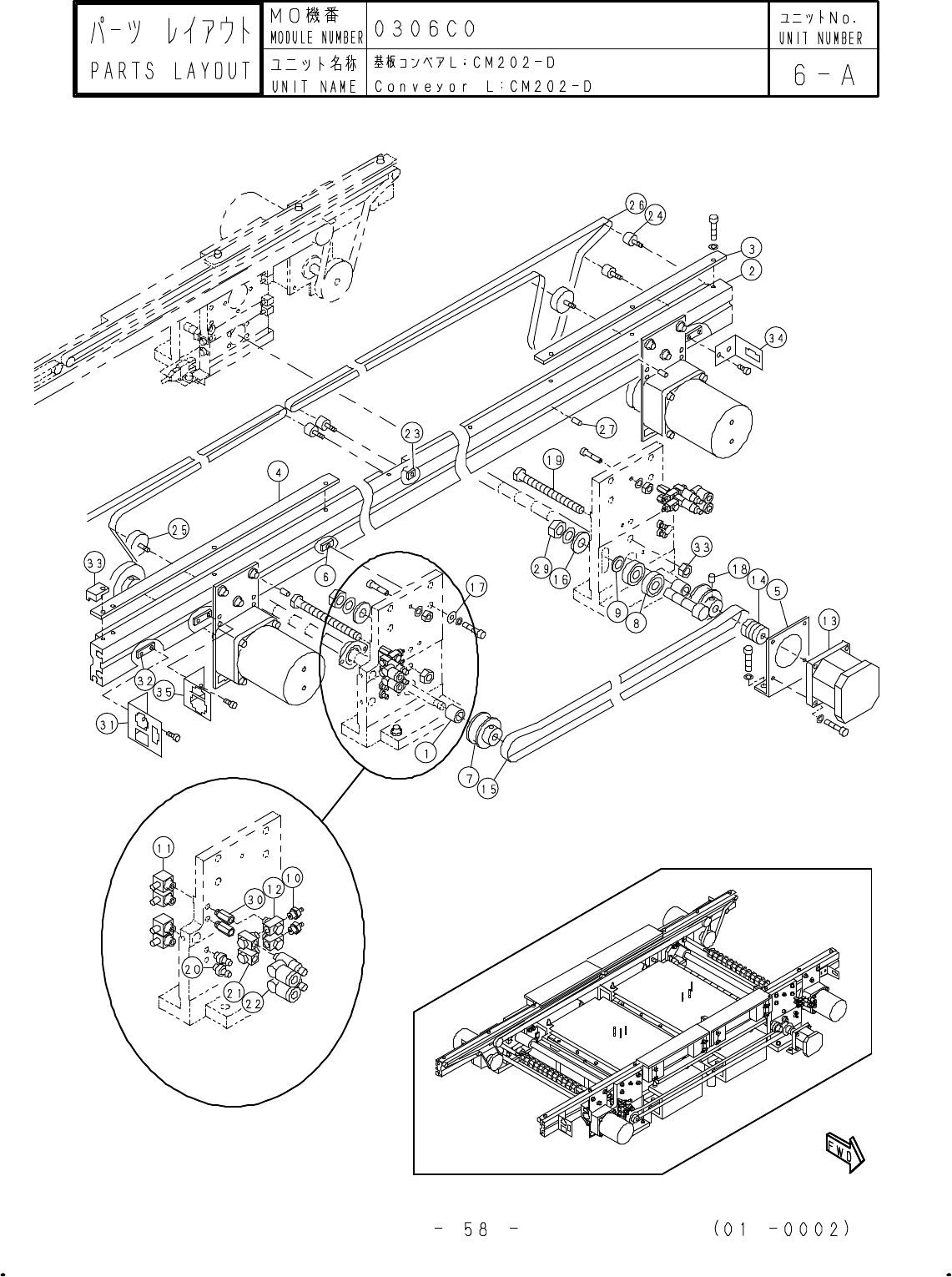

基板ｺﾝﾍﾞｱL:CM202-D
UNIT NAME
PART NUMBER
品番 部品名 型式 数量 ﾗﾝｸ 備考
Conveyor L:CM202-D
PART LIST
MODULE NUMBER
パーツリスト
0306C0M0000
6-A
UNIT NUMBER
ユニットＮｏ.
PART NAME TYPE Q'TY RANK REMARKS
− −59 02 0001−（ ）
