Cable trailing unit_20211123_064706 - 第11页
Cable trailing unit Page 11 / 15 23.11.2021
Cable trailing unit
Page 10 / 15 23.11.2021
Cable trailing unit
Page 11 / 15 23.11.2021
Cable trailing unit
Page 12 / 15 23.11.2021

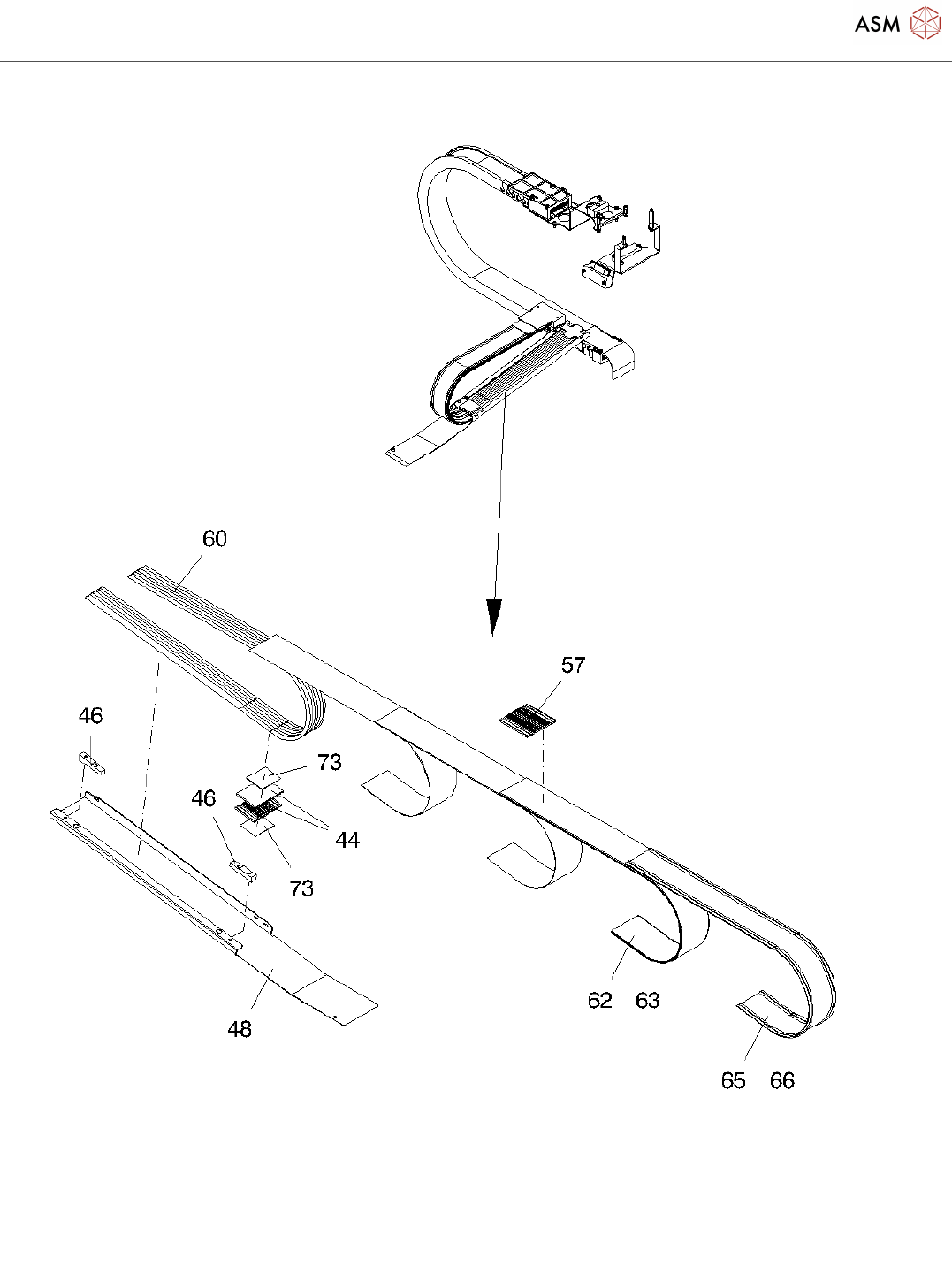

Pos. Item no. Description Part marking
03040427-01 TRAILING-CABLE UNIT /HS-D
2 03018025-01 HS60-D TRAILING CABLE GANTRY 1
A. 3
SPARE PART
3 03038764-01 PC-BOARD MOUNT LEFT SIDE
4 03017774-01 CABLE SUPPORT SPARE PART
5 03020516-01 CLAMPING HYBRID CABLE B = 30
6 03039117-01 TERMINAL 1
7 03039111-01 CLAMPING PIECE 1
8 03039145-01 TERMINAL 2
9 03039055-01 CABLE SHEET
10 03040736-01 HOLDER
11 00330200-01 Y-CABLE CLAMPING
12 03039248-01 HOSE STRAP GUIDE
13 03039237-01 X-CABLE CLAMP
14 03040745-01 CABLE SET OPTIVCAL STOPPER
PLACEMENT AREA 1
15 03039231-01 DISTANCE 1
16 03039238-01 HOSE STRAP GUIDE
17 03039235-01 HOLDER
18 03020182-01 CLAMPING HYBRID CABLE
19 00333666-01 HOSE STRAP GUIDE - Y
20 00337343-01 COVER TAPE SPARE PART
21 00318551S03 SEVENFOLD TUBE PK-3, BLACK 4
METER
SPARE PART
22 00318551S03 SEVENFOLD TUBE PK-3, BLACK 4
METER
SPARE PART
23 00375274-01 CABLE PROTECT.FOIL 450MM FOR
HS GANTRY
SPARE PART
24 03010187S01 PE-UHMW FOIL 42,5 X 0,5 MM X
40M/ROL
25 00095471-01 PLAIN WASHER A 3.2-140HV-ST
26 03040930-01 TRAILING CABLE GANTRY 1 AND
3/HS-D
27 00305458-01 BK-MOD421/2 CONNECTOR PLUG
34POLE
*
28 03046944-01 DISTANCE BOLT I/I M3X10
29 00342838-01 FIXING, PANDUIT TA TYPE ? STANDARD PARTS
