MODEL TCM-X200 0203-002 98 R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION Fig. H-4 ࠦࡦࡌࠕࡦࠨ Conveyor Width Limit Sensor 305 306 304 31 1 312 310 31 1 313 310 305 306 304 302 See Fig.H-1 Key No.1 31 1 313 310 302 314 316 317 319 318 303 Fig.…
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
97
H-3
201 630 106 1412 BRACKET(TB) 1 696H--110-201
202 411 113 9109 SCR TRS 5X10 4 696H--110-202
251 630 049 1210 RELAY 4 KSSR3,KSSR4,KSSR7,KSSR8
696H--110-251
252 630 083 5458 TERMINAL 16 696H--110-252
253 630 083 5489 TERMINAL 4 696H--110-253
254 630 083 5502 ACCESSORY,WIRING 1 696H--110-254
255 630 049 3672 BRACKET,WIRING 2 696H--110-255
256 630 072 8408 ACCESSORY,WIRING 1 696H--110-256
257 630 080 6854 UNIT,DRIVER 2 APMD17(RCVW),APMD26(R2CV),
#AK-BX580SAT2 696H--110-257
258 411 113 1400 SCR PAN 4X6 15 696H--110-258
259 411 008 1706 WASHER SPR 4 15 696H--110-259
260 411 119 2104 WASHER V 4X9X0.8 15 696H--110-260
264 630 083 6158 ACCESSORY,WIRING 1 696H--110-264
265 630 089 6497 RAIL,WIRING 1 696H--110-265
266 630 058 8460 ACCESSORY,WIRING 2 696H--110-266
267 630 083 5564 ACCESSORY,WIRING 1 696H--110-267
MODEL TCM-X200
0203-002
98
R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION

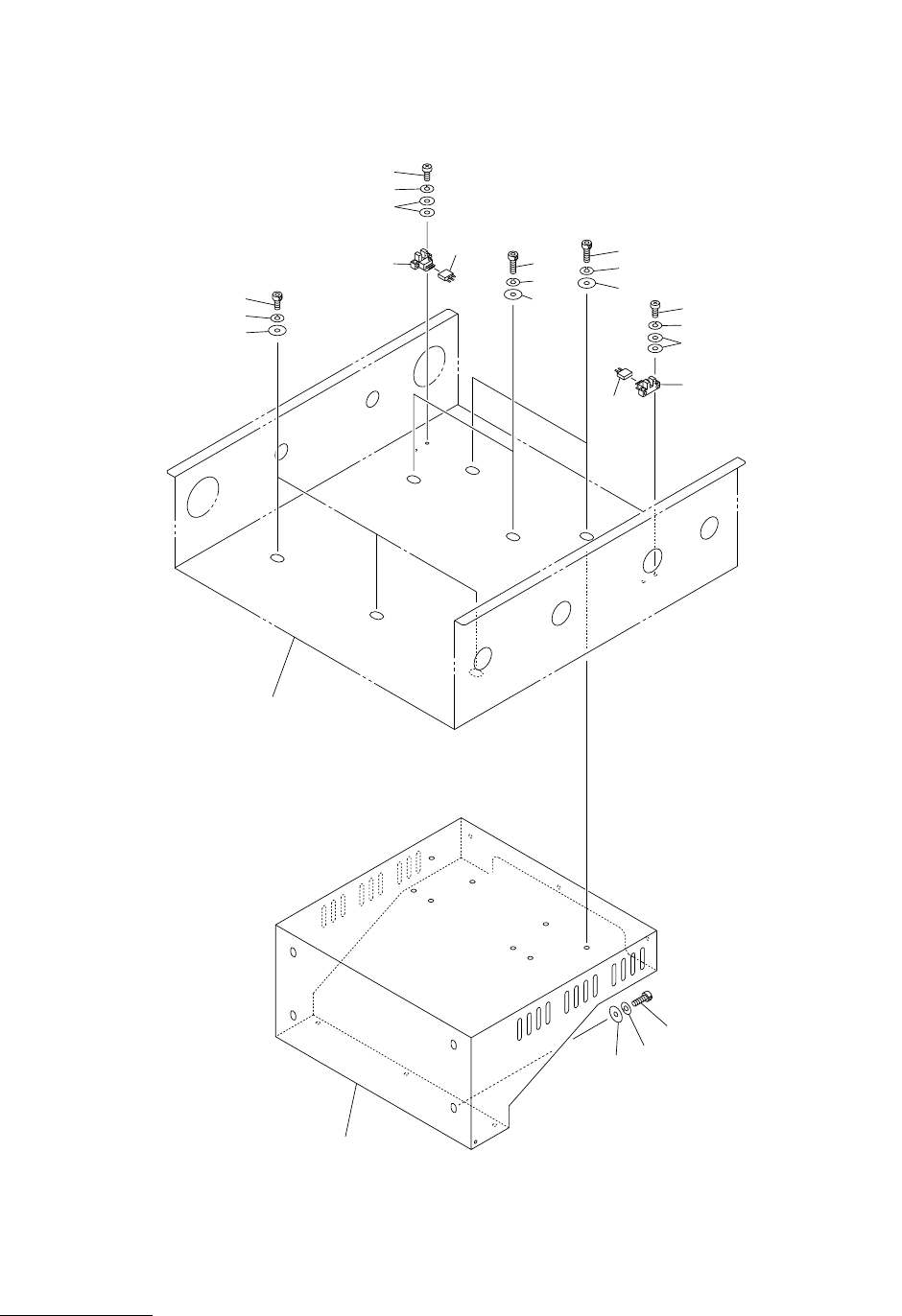

Fig. H-4 ࠦࡦࡌࠕࡦࠨ Conveyor Width Limit Sensor
305
306
304
311
312
310
311
313
310
305
306
304
302
See Fig.H-1
Key No.1
311
313
310
302
314
316
317
319
318
303
Fig.H-4
TCM-X200-002
4797A-002
MODEL TCM-X200
0103-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
99
H-4
302 630 000 0252 SENSOR,PHOTO 2 BPH79,BPH80 696H--110-302
303 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 696H--110-303
304 411 088 9005 WASHER F 3X6X0.5 8 696H--110-304
305 411 086 4408 WASHER SPR 3 4 696H--110-305
306 411 040 7803 SCR PAN 3X12 4 696H--110-306
310 630 001 0237 WASHER 7 696H--110-310
311 411 141 3001 WASHER SPR 6 7 696H--110-311
312 630 000 7886 BOLT,HEX-SCT 3 696H--110-312
313 630 000 7893 BOLT,HEX-SCT 4 696H--110-313
314 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 696H--110-314
316 630 085 6354 BRACKET(TB) 1 696H--110-316
317 630 001 0220 WASHER 4 696H--110-317
318 630 000 7770 BOLT,HEX-SCT 4 696H--110-318
319 411 141 6705 WASHER SPR 5 4 696H--110-319
