P-206-001 - 第140页
MODEL TCM-X200 021 1-003 138 XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY T ABLE PIPING, WIRING Fig. JE-1 X Y ࠪࡘ࠻ࡦࠨ XY Chute Width Limit Sensors See Fig.JD-1 Key No.33 See Fig.JD-1 Key No.1 See Fig.JC-1 Key No.4 See Fig.JD-4 Key No.306 Fig.JE-1 T…
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
137
JD-7
609 630 093 2560 HOLDER 2 696JD-110-609
611 630 076 3072 RING 2 696JD-110-611
612 630 076 3089 COLLAR 2 696JD-110-612
613 630 093 1792 PLATE 1 696JD-110-613
614 630 059 6779 GRIP 1 696JD-110-614
615 630 085 8655 BALL SCREW 1 696JD-110-615
616 630 059 6809 NUT 2 696JD-110-616
617 630 059 6755 PULLEY,TIMING 2 696JD-110-617
618 630 093 7008 BEARING,RADIAL 2 696JD-110-618
622 630 085 8679 GUIDE,LINEAR 2 696JD-110-622
623 630 071 0359 BEARING,RADIAL 2 696JD-110-623
624 630 007 1719 BEARING,RADIAL 2 696JD-110-624
625 630 000 7503 BOLT,HEX-SCT 34 696JD-110-625
626 630 000 7510 BOLT,HEX-SCT 4 696JD-110-626
630 411 141 2806 WASHER SPR 3 2 696JD-110-630
632 411 141 5906 WASHER F 4X8X0.8 1 696JD-110-632
633 411 141 3902 WASHER V 3X7X0.5 2 696JD-110-633
635 411 001 0201 RING E 5 1 696JD-110-635
636 630 093 5905 BALL SCREW 1 696JD-110-636
637 630 094 3528 SET SCREW 4 696JD-110-637
MODEL TCM-X200
0211-003
138

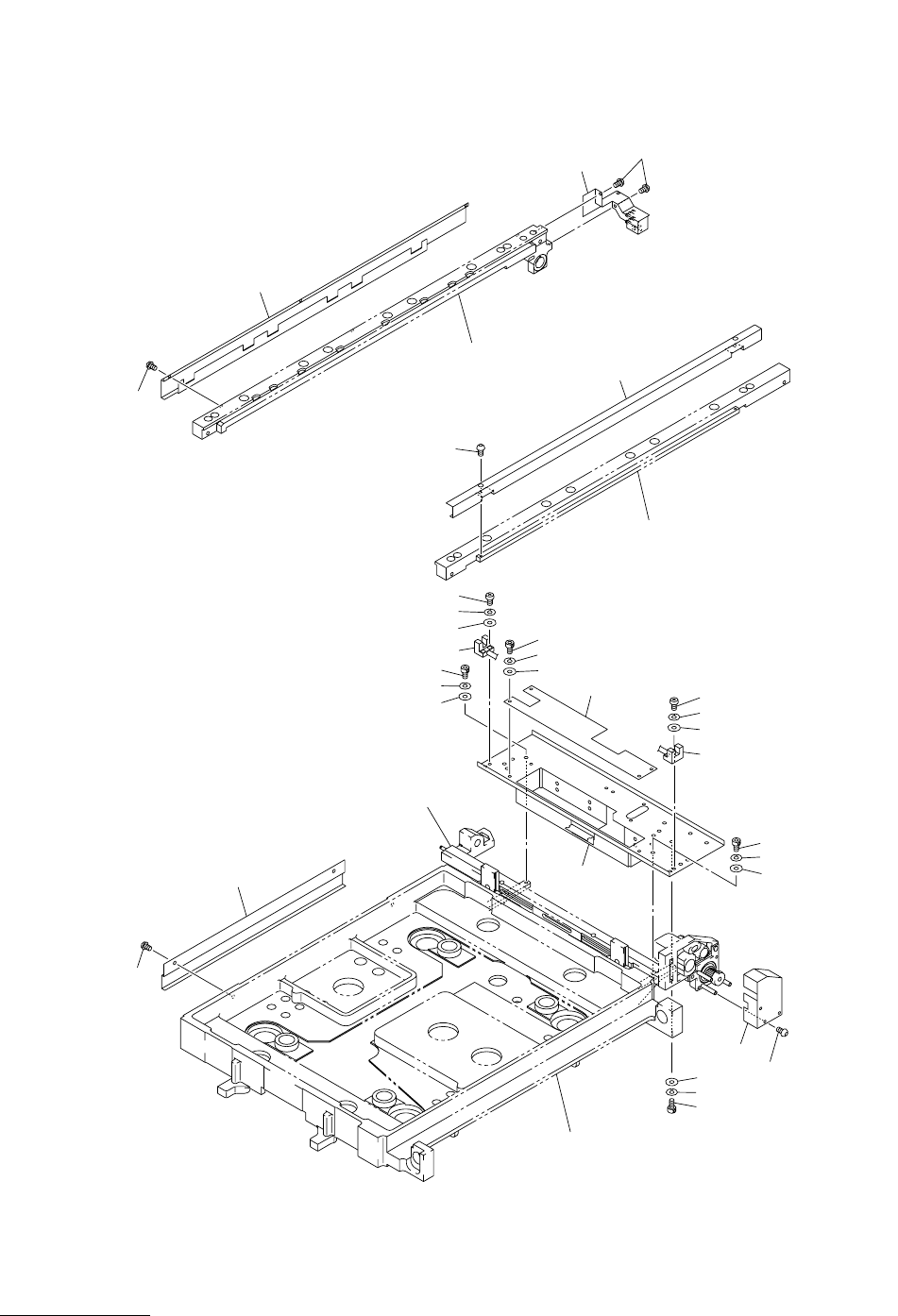

XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY TABLE PIPING, WIRING
Fig. JE-1 XY ࠪࡘ࠻ࡦࠨ XY Chute Width Limit Sensors
See Fig.JD-1
Key No.33
See Fig.JD-1
Key No.1
See Fig.JC-1
Key No.4
See Fig.JD-4
Key No.306
Fig.JE-1
TCM-X200-003
4797A-002
27
7
1
27
27
11
16
19
14
18
21
12
17
20
26
10
11
16
19
14
2
6
27
20
17
28
18
21
10
5
29
23
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
139
JE-1
1 630 095 6498 BRACKET 1 696JE-110-001
2 630 095 6283 BRACKET 1 696JE-110-002
5 630 094 2576 COVER 1 696JE-110-005
6 630 093 2621 COVER 1 696JE-110-006
7 630 093 5936 COVER 1 696JE-110-007
10 630 093 0016 ASSY,SENSOR,PHOTO 2 BPH73,BPH74 696JE-110-010
11 411 140 6300 SCR PAN 2X8 4 696JE-110-011
12 630 000 7503 BOLT,HEX-SCT 4 696JE-110-012
14 630 000 7619 BOLT,HEX-SCT 3 696JE-110-014
16 411 141 2509 WASHER SPR 2 4 696JE-110-016
17 411 141 2806 WASHER SPR 3 5 696JE-110-017
18 411 141 2905 WASHER SPR 4 4 696JE-110-018
19 411 141 3605 WASHER V 2X5X0.3 4 696JE-110-019
20 411 141 3902 WASHER V 3X7X0.5 5 696JE-110-020
21 411 141 4008 WASHER V 4X9X0.8 3 696JE-110-021
23 630 087 7182 COVER 1 696JE-110-023
26 630 095 6290 PLATE 1 696JE-110-026
27 630 047 4596 BOLT,HEX-SCT(BUTTON HEAD) 10 696JE-110-027
28 630 000 7527 BOLT,HEX-SCT 1 696JE-110-028
29 630 076 8824 BOLT,HEX-SCT(BUTTON HEAD) 2 696JE-110-029
