MODEL TCM-X200
0203-002
216
ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃㇱ FEEDER CARRIAGE COVER SECTION

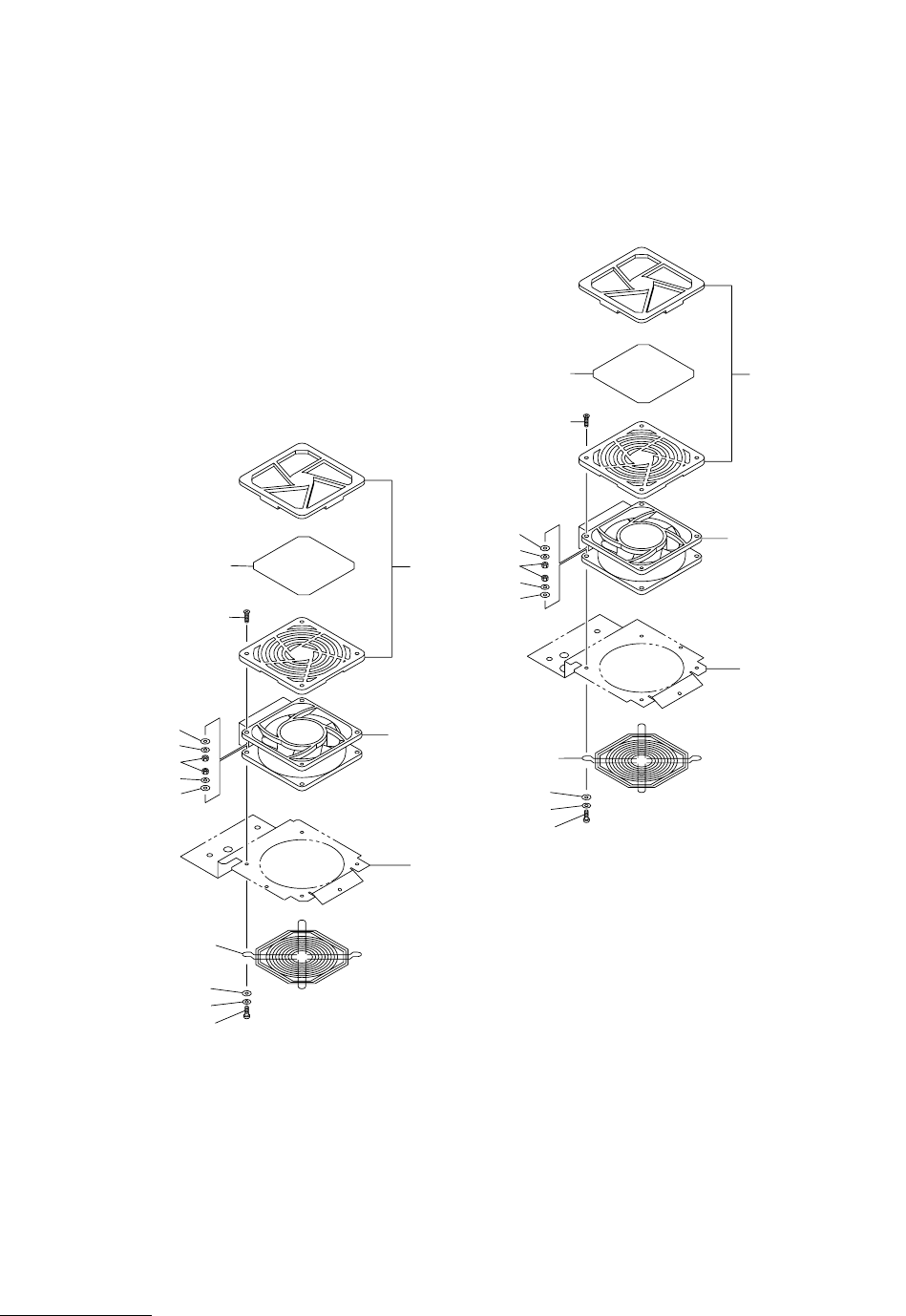

Fig. MB-2 F ゲ಄ළࡈࠔࡦ F Axis Cooling Fan
Fig.MB-2
TCM-X200-002
4797A-002
See Fig.MB-3
Key No.210
See Fig.MB-3
Key No.211
109
110
131
107
108
130
133
132
132
133
134
133
132
109
110
131
107
108
132
133
134
133
132
130
133
132
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
217
MB-2
107 630 089 0907 MOTOR,AC 2 MFAN11,MFAN12,MRS16-TUL
696MB-110-107
108 630 068 4292 ACCESSORY,MOT-M 2 696MB-110-108
109 630 074 6853 ACCESSORY,MOT-M (FILTER) 2 696MB-110-109
110 630 076 4932 ACCESSORY,MOT-M 2 696MB-110-110
130 411 140 6508 SCR PAN 5X20 8 696MB-110-130
131 411 140 7406 SCR FLT 5X20 8 696MB-110-131
132 411 088 1702 WASHER V 5X10X1 24 696MB-110-132
133 411 008 2109 WASHER SPR 5 24 696MB-110-133
134 411 056 0508 NUT HEX 5 16 696MB-110-134
MODEL TCM-X200
0203-002
218
ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃㇱ FEEDER CARRIAGE COVER SECTION
Fig. MB-3 ࡈࠖ࠳ No. ࡞ Feeder No. Rail
Fig.MB-3
TCM-X200-002
4797A-002
236
210
239
230
230
208
232
235
236
201
237
235
232
235
232
230
236
205
231
235
236
231
235
236
237
204
236
235
232
235
232
235
232
236
206
235
232
236
211
235
232
236
204
237
235
236
221
239
222
208
230
236
235
231
202
232
235
237
219
216
232
235
237
218
236
235
224
236
235
232
225
209
232
235
236
235
232
237
237
235
233
237
235
233
235
232
236
235
232
237
235
232
236
See Fig.MB-1
Key No.7
See Fig.MB-1
Key No.1
See Fig.MB-1
Key No.5
See Fig.MB-1
Key No.4
See Fig.MB-1
Key No.2
See Fig.MB-1
Key No.7
235
232
236
235
232
213
236
235
232
232
235
236
203
212
236
235
232
232
235
236
214
213
236
235
232
237
236
235
232
232
236
235
232
232
235
237
217
232
209
235
236
235
232
236
237
235
232
235
231
232
235
232
232
235
236
214
215
220
236
235
232
231
235
236
231
235
236
236
235
232
236
235
232
