P-206-001 - 第295页
MODEL TCM-X200 021 1-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 293 SB-4 35 1 630 092 4626 ASSY ,CORD (X200MOT F1) 1 - X CN105 69 6 SB-1 10-351 35 2 630 092 4633 ASSY ,CORD (X200MOT F2) 1 - X CN109 69 6 SB-1 1…
MODEL TCM-X200
0211-002
292

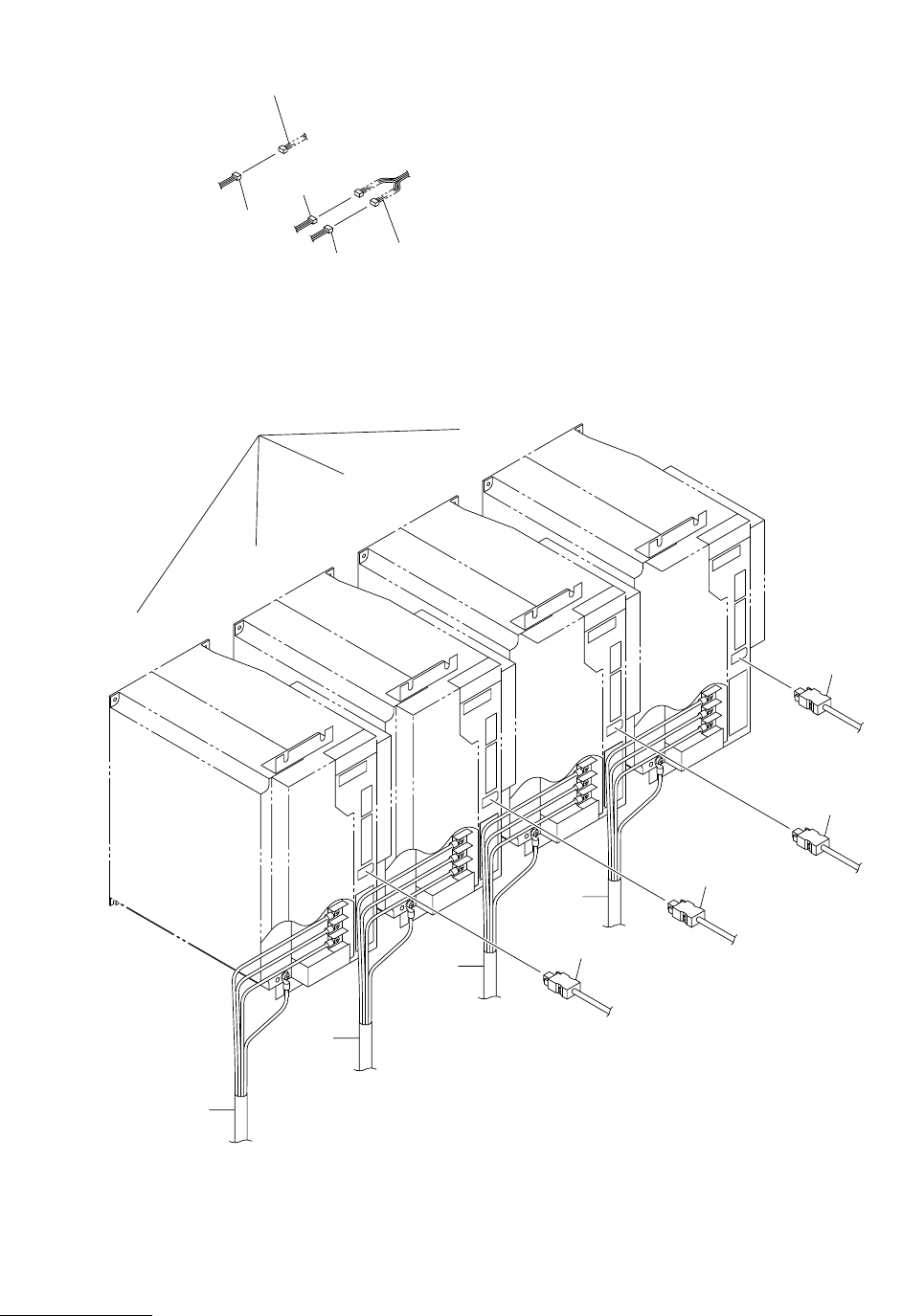

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-4 F ゲ࠼ࠗࡃ F Axis Drivers
Fig.SB-4
360
359
361
354
358
See Fig.RL-5
Key No.453
ASMD2
(F1)
ASMD3
(F2)
ASMD4
(F3)
ASMD5
(F4)
See Fig.SB-2
Key No.173
See Fig.SB-2
Key No.172
4797A-002
TCM-X200-003
TCM-X100-002
353
357
352
356
351
355
MODEL TCM-X200
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
293
SB-4
351 630 092 4626 ASSY,CORD (X200MOT F1) 1 -XCN105 696SB-110-351
352 630 092 4633 ASSY,CORD (X200MOT F2) 1 -XCN109 696SB-110-352
353 630 092 4640 ASSY,CORD (X200MOT F3) 1 -XCN113 696SB-110-353
354 630 092 4657 ASSY,CORD (X200MOT F4) 1 -XCN117 696SB-110-354
355 630 104 9595 CORD (LINEAR 3.9M) 1 XCN106-XCN107 696SB-110-355
356 630 104 9601 CORD (LINEAR 3.4M) 1 XCN110-XCN111 696SB-110-356
357 630 104 9618 CORD (LINEAR 4.1M) 1 XCN114-XCN115 696SB-110-357
358 630 104 9601 CORD (LINEAR 3.4M) 1 XCN118-XCN119 696SB-110-358
359 630 092 3872 ASSY,CORD(X200SB311-1) 1 -BPH57 696SB-110-359
360 630 092 3889 ASSY,CORD(X200SB311-2) 1 -BPH58 696SB-110-360
361 630 092 3896 ASSY,CORD(X200SB311-3) 1 -BPH59 696SB-110-361
MODEL TCM-X200
0203-001
294
ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-5 H2,H3 ၮ᧼ޔH1 ၮ᧼ H2,H3 P.C.B., H1 P.C.B.
Fig.SB-5
488
487
465
464
466
463
489
464
468
469
471
473
469
464
469
471
474
473
466
463
467
470
469
472
471
466
481
480
482
476
478
475
478
478
477
479
451
452
486
455
458
459
454
460
462
461
459
483
458
457
453
454
455
See Fig.RM-1
Key No.66
H2 PCB
H3 PCB
See Fig.RM-1
Key No.66
See Fig.RM-4
Key No.353
H1 PCB
See Fig.SB-2
Key No.172
TCM-X200-002
4797A-002
