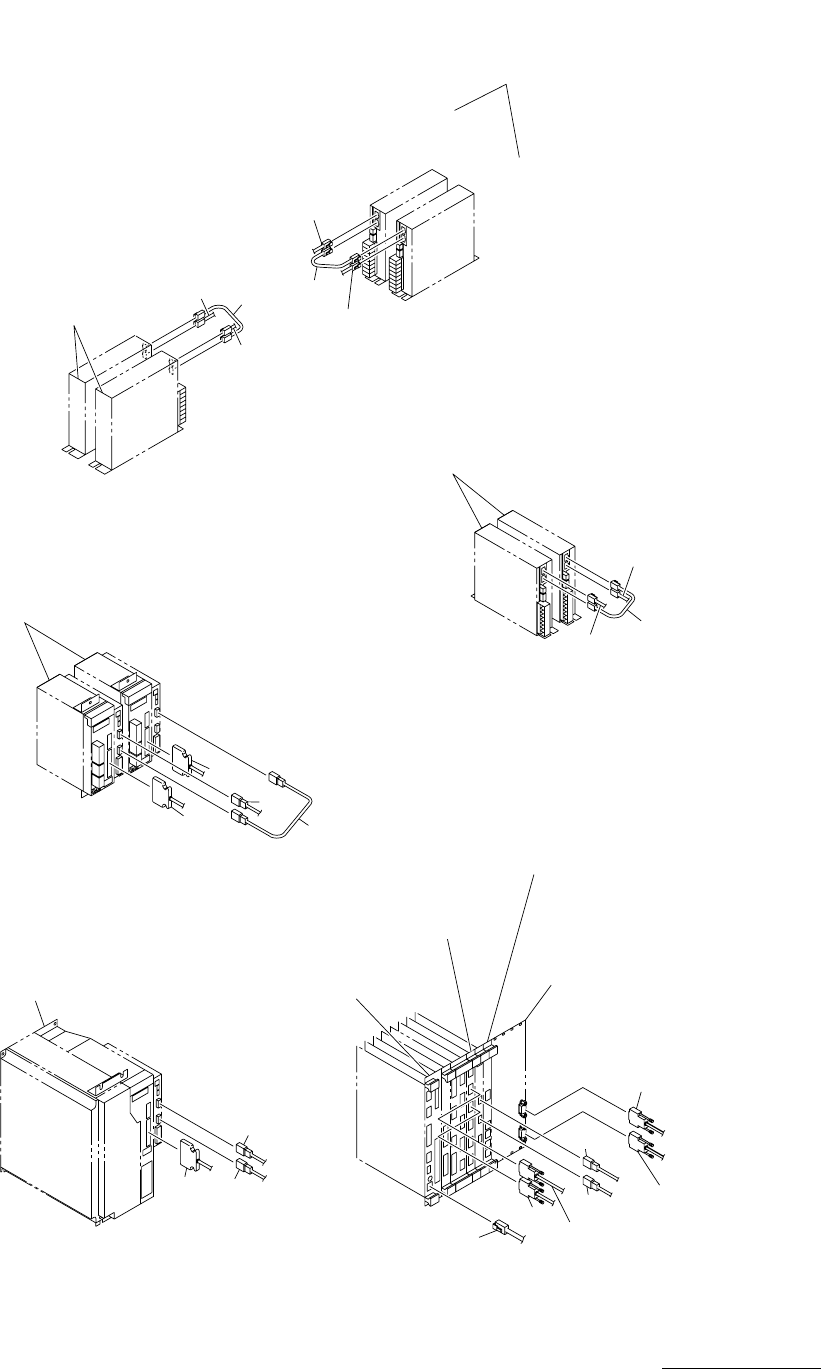

MODEL TCM-X200 0203-001 300 ࠤࡉ࡞㈩✢ CABLE WIRING Fig. SB-8 ᧄㇱ㧞 Main Body Section-2 Sheet-3 Fig.SB-8 Sheet-3 TCM-X200-002 4797A-002 763 773 765 766 766 761 762 761 767 772 765 762 764 764 763 See Fig.RL-5 Key No.455 F3,4 …
MODEL TCM-X200
0211-002
299
ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-8 ᧄㇱ㧞 Main Body Section-2
Sheet-2
Fig.SB-8
Sheet-2
TCM-X200-003
TCM-X100-002
4797A-003
774
See Fig.RH-1
Key No.53
See Fig.RH-1
Key No.55
See Fig.RH-1
Key No.61
See Fig.SB-1
Key No.66
See Fig.RM-2
Key No.157
See Fig.RM-1
Key No.54
770
See Fig.RM-2
Key No.152
See Fig.G-3
Key No.257
See Fig.H-3
Key No.257
791
792
790
755
787
789
788
790
788
786
APMD29
(CY)
APMD22
(L2CV)
APMD28
(CX)
ASMD10
(MZ)
ASMD9
(CZ)
ASMD1(H)
CPU1 PCB
SIO PCB
JAMMC-EB005 PCB
APMD16
(LCVW)
APMD17
(RCVW)
APMD26
(R2CV)
781
782
754
775
753
754
See Fig.RH-1
Key No.52
769
768
760
759
MODEL TCM-X200
0203-001
300
ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-8 ᧄㇱ㧞 Main Body Section-2
Sheet-3
Fig.SB-8
Sheet-3
TCM-X200-002
4797A-002
763
773
765
766
766
761
762
761
767
772
765
762
764
764
763
See Fig.RL-5
Key No.455
F3,4 PCB
F1,2 PCB
I/F PCB
H2 PCB
H1 PCB
T1 PCB
H3 PCB
XY PCB
See Fig.RL-5
Key No.455
See Fig.RL-4
Key No.353
See Fig.RM-1
Key No.66
See Fig.RM-1
Key No.66
See Fig.RM-4
Key No.353
See Fig.RG-1
Key No.63
See Fig.RM-4
Key No.353
MODEL TCM-X200
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
301
SB-8
751 630 092 3988 ASSY,CORD(X200SB100-1) 1 XCN60(X)-XCN61(Y) 696SB-110-751
752 630 092 3995 ASSY,CORD(X200SB100-2) 1 XCN62(Y)-XCN69(XYTR)
696SB-110-752
753 630 092 4008 ASSY,CORD(X200SB100-3) 1 XCN70(XYTR)-XCN63(H)
696SB-110-753
754 630 092 4015 ASSY,CORD(X200SB100-4) 1 XCN64(H)-XCN65(CZ)
696SB-110-754
755 630 092 4022 ASSY,CORD(X200SB100-5) 1 XCN66(CZ)-XCN67(MZ)
696SB-110-755
756 630 092 4039 ASSY,CORD(X200SB100-6) 1 XCN52(F1)-XCN53(F2)
696SB-110-756
757 630 092 4046 ASSY,CORD(X200SB100-7) 1 XCN54(F2)-XCN55(F3)
696SB-110-757
758 630 092 4053 ASSY,CORD(X200SB100-8) 1 XCN56(F3)-XCN57(F4)
696SB-110-758
759 630 092 4060 ASSY,CORD(X200SB100-9) 1 XCN59(X)-XCN22(UA57)
696SB-110-759
760 630 092 4077 ASSY,CORD(X200SB100-10) 1 XCN51(F1)-XCN23(UA57)
696SB-110-760
761 630 092 4084 ASSY,CORD(X200SB101-1) 1 XCN321(T1)-XCN300(XY)
696SB-110-761
762 630 092 4091 ASSY,CORD(X200SB101-2) 1 XCN301(XY)-XCN322(F3,4)
696SB-110-762
763 630 092 4107 ASSY,CORD(X200SB101-3) 1 XCN323(F3,4)-XCN324(F1,3)
696SB-110-763
764 630 092 4114 ASSY,CORD(X200SB101-4) 1 XCN325(F1,2)-XCN326(I/F)
696SB-110-764
765 630 092 4121 ASSY,CORD(X200SB101-5) 1 XCN307(H3)-XCN308(H2)
696SB-110-765
766 630 092 4138 ASSY,CORD(X200SB101-6) 1 XCN309(H2)-XCN310(H1)
696SB-110-766
767 630 092 4145 ASSY,CORD(X200SB102) 1 XCN20(UA51)-X320(T1)
696SB-110-767
768 630 092 4169 ASSY,CORD(X200SB104) 1 XCN12- 696SB-110-768
769 630 092 4176 ASSY,CORD(X200SB105) 1 XCN13- 696SB-110-769
770 630 092 4183 ASSY,CORD(X200SB105) 1 XCN34- 696SB-110-770
771 630 092 4206 ASSY,CORD(X200SB108) 1 ASMD7(Y)CN1- 696SB-110-771
772 630 092 4213 ASSY,CORD(X200SB109-1) 1 XCN311(H1)- 696SB-110-772
773 630 092 4220 ASSY,CORD(X200SB109-2) 1 XCN327(I/F)- 696SB-110-773
774 630 092 4237 ASSY,CORD(X200SB110) 1 XCN8-XCN184 696SB-110-774
775 630 092 4244 ASSY,CORD(X200SB120-1) 1 ASMD1(H)CN1- 696SB-110-775
776 630 092 4251 ASSY,CORD(X200SB120-2) 1 ASMD2(F1)CN1- 696SB-110-776
777 630 092 4268 ASSY,CORD(X200SB120-3) 1 ASMD3(F2)CN1- 696SB-110-777
778 630 092 4275 ASSY,CORD(X200SB120-4) 1 ASMD4(F3)CN1- 696SB-110-778
779 630 092 4282 ASSY,CORD(X200SB120-5) 1 ASMD5(F4)CN1- 696SB-110-779
780 630 092 4299 ASSY,CORD(X200SB120-6) 1 ASMD6(X)CN1- 696SB-110-780
781 630 092 4305 ASSY,CORD(X200SB120-7) 1 ASMD9(CZ)CN1- 696SB-110-781
782 630 092 4312 ASSY,CORD(X200SB120-8) 1 ASMD10(MZ)CN1- 696SB-110-782
783 630 092 4329 ASSY,CORD(X200SB120-9) 1 ASMD8(XYTR)CN1- 696SB-110-783
784 630 110 1521 ASSY,CORD (AE-LINK 0.3M) 1 XCN82-XCN81 696SB-110-784
