MODEL TCM-X200 021 1-003 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 43 E-2 10 1 630 085 5968 BASE 1 6 9 6 E--1 10-101 10 2 630 000 7916 B OL T ,HEX-SCT 4 6 96 E--1 10-102 10 3 41 1 141 3001 WAS HE R S PR 6 4 696E-…
MODEL TCM-X200
0211-003
42
ਛ㑆ࡌࠬㇱ MIDDLE BASE SECTION
Fig. E-2
ㇱຠᆫᬌㇱޔࡁ࠭࡞ᬌㇱ
Component Posture Detector,
Nozzle Detector
146
145
143
144
See Fig.L-4
Key No.309
136
107
133
132
131
Key No.1
See Fig.L-1
See Fig.E-1
Key No.5
140
141
142
B
A
119
135
135
119
116
117
118
116
118
117
B
A
135
135
131
131
134
138
139
134
138
139
137
122
107
136
122
107
136
112
107
136
110
110
108
107
110
108
107
110
107
108
108
107
110
106
107
108
136
112
107
108
107
110
102
103
104
104
103
102
137
130
129
128
127
119
126
120
125
124
121
120
119
115
114
113
111
111
109
105
123
101
Fig.E-2
4797L-002
TCM-X300-002
TCM-X200-003
4797A-003
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
43
E-2
101 630 085 5968 BASE 1 696E--110-101
102 630 000 7916 BOLT,HEX-SCT 4 696E--110-102
103 411 141 3001 WASHER SPR 6 4 696E--110-103
104 411 141 4305 WASHER V 6X12.5X1.6 4 696E--110-104
105 630 086 1198 SUPPORT 1 696E--110-105
106 630 000 7787 BOLT,HEX-SCT 2 696E--110-106
107 411 141 6705 WASHER SPR 5 20 696E--110-107
108 630 001 0220 WASHER 12 696E--110-108
109 630 115 3964 SUPPORT 1 696E--110-109
110 630 000 7770 BOLT,HEX-SCT 12 696E--110-110
111 630 087 2064 SENSOR,PELEC 1 696E--110-111
112 630 000 7763 BOLT,HEX-SCT 4 696E--110-112
113 630 086 1167 SUPPORT 1 696E--110-113
114 630 086 1181 SUPPORT 1 696E--110-114
115 630 093 3499 BRACKET 1 696E--110-115
116 630 000 7633 BOLT,HEX-SCT 4 696E--110-116
117 411 141 2905 WASHER SPR 4 4 696E--110-117
118 411 141 4008 WASHER V 4X9X0.8 4 696E--110-118
119 630 092 9355 ASSY,SWITCH,LIMIT 2 SQ2,SQ3 696E--110-119
120 630 029 4286 PIN,GUIDE 2 696E--110-120
121 630 086 1150 PLATE 1 696E--110-121
122 411 141 0505 NUT HEX 5 2 696E--110-122
123 630 095 6528 BASE 1 696E--110-123
124 630 093 6711 SUPPORT 1 696E--110-124
125 630 093 6728 SUPPORT 1 696E--110-125
126 630 093 6735 BRACKET 1 696E--110-126
127 630 086 1242 SUPPORT 1 696E--110-127
128 630 089 8125 SUPPORT 1 696E--110-128
129 630 093 4809 HOLDER 1 696E--110-129
130 630 086 1327 HOLDER 1 696E--110-130
131 630 086 4090 SENSOR,PELEC 4 BPH15,16,17,BPH18 696E--110-131
132 630 092 8693 ASSY,SENSOR,PELEC 1 BPH18 Amp 696E--110-132
133 630 092 8709 ASSY,SENSOR,PELEC 3 BPH15,16,17 Amp 696E--110-133
134 630 000 7497 BOLT,HEX-SCT 2 696E--110-134
135 630 000 8883 SET SCREW 8 696E--110-135
136 411 141 4107 WASHER V 5X10X1 8 696E--110-136
137 630 001 3030 SPRING,COMP 2 696E--110-137
138 411 141 2806 WASHER SPR 3 2 696E--110-138
139 411 141 3902 WASHER V 3X7X0.5 2 696E--110-139
140 630 000 7626 BOLT,HEX-SCT 4 696E--110-140
141 411 141 2905 WASHER SPR 4 4 696E--110-141
142 411 141 4008 WASHER V 4X9X0.8 4 696E--110-142
143 411 003 0001 SCR PAN 4X12 2 696E--110-143
144 411 008 1706 WASHER SPR 4 2 696E--110-144
145 411 119 2104 WASHER V 4X9X0.8 2 696E--110-145
146 630 102 4967 RAIL,WIRING 1 696E--110-146
MODEL TCM-X200
0203-002
44

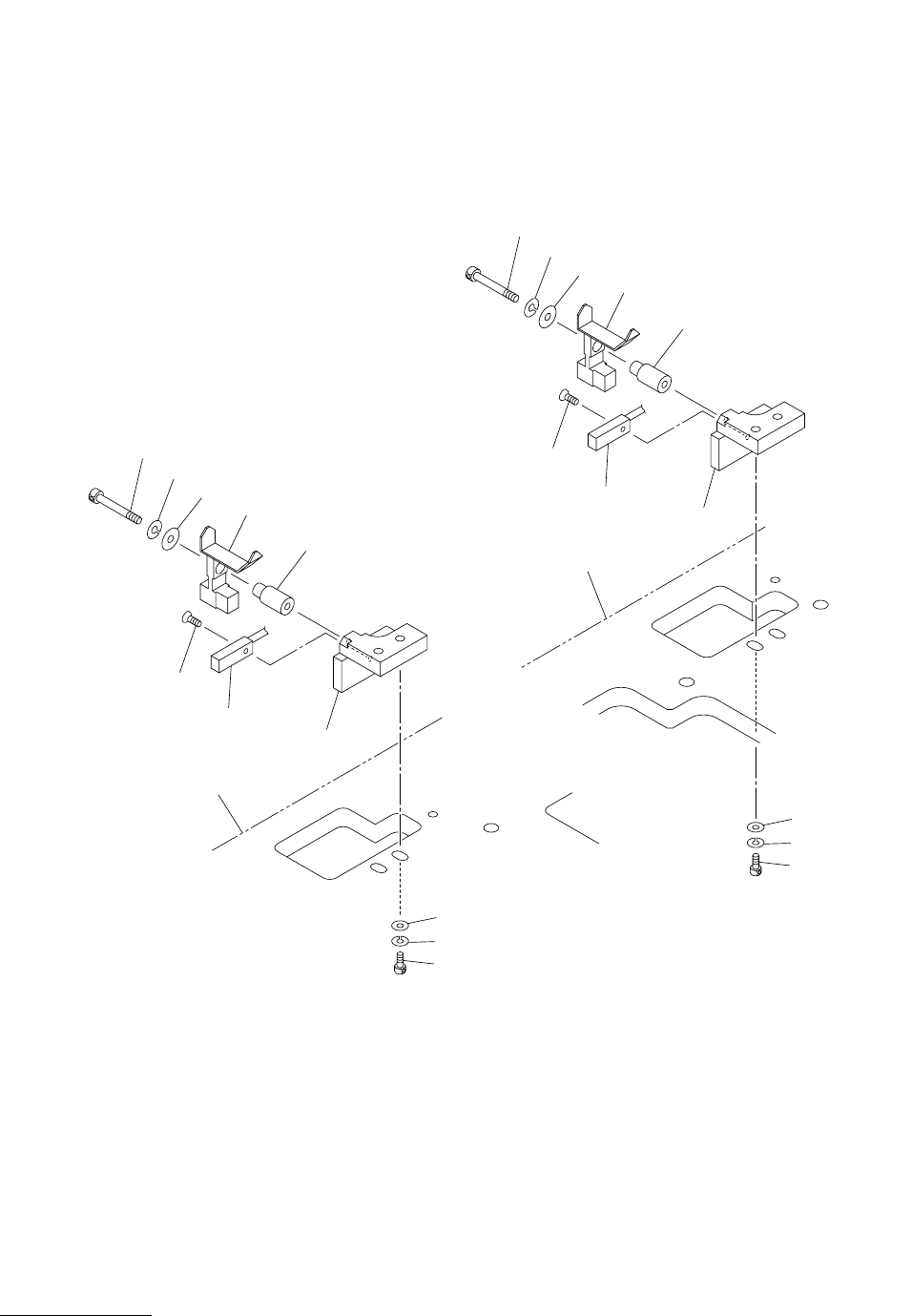

ਛ㑆ࡌࠬㇱ MIDDLE BASE SECTION
Fig. E-4
ࡈࠖ࠳ࡈ࠶ࠢᄖࠇᬌㇱ Disengaged Feeder Hook Detector
312
313
306
313
312
302
303
304
Key No.5
See Fig.E-1
See Fig.E-1
Key No.23
310
305
309
301
306
311
311
304
303
302
310
309
305
301
Fig.E-4
4797L
TCM-X300
TCM-X200-002
4797A-002
