MODEL TCM-X200 021 1-003 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 83 G-3 20 1 630 106 1399 BRACKET(TB) 1 696G--1 10-201 20 2 41 1 1 13 9109 SCR TRS 5X 10 4 696G--1 10-202 25 1 630 049 1210 R E L A Y 4 KSSR1,KSSR…
MODEL TCM-X200
0103-001
82
L ࠦࡦࡌࠕㇱ L CONVEYOR SECTION

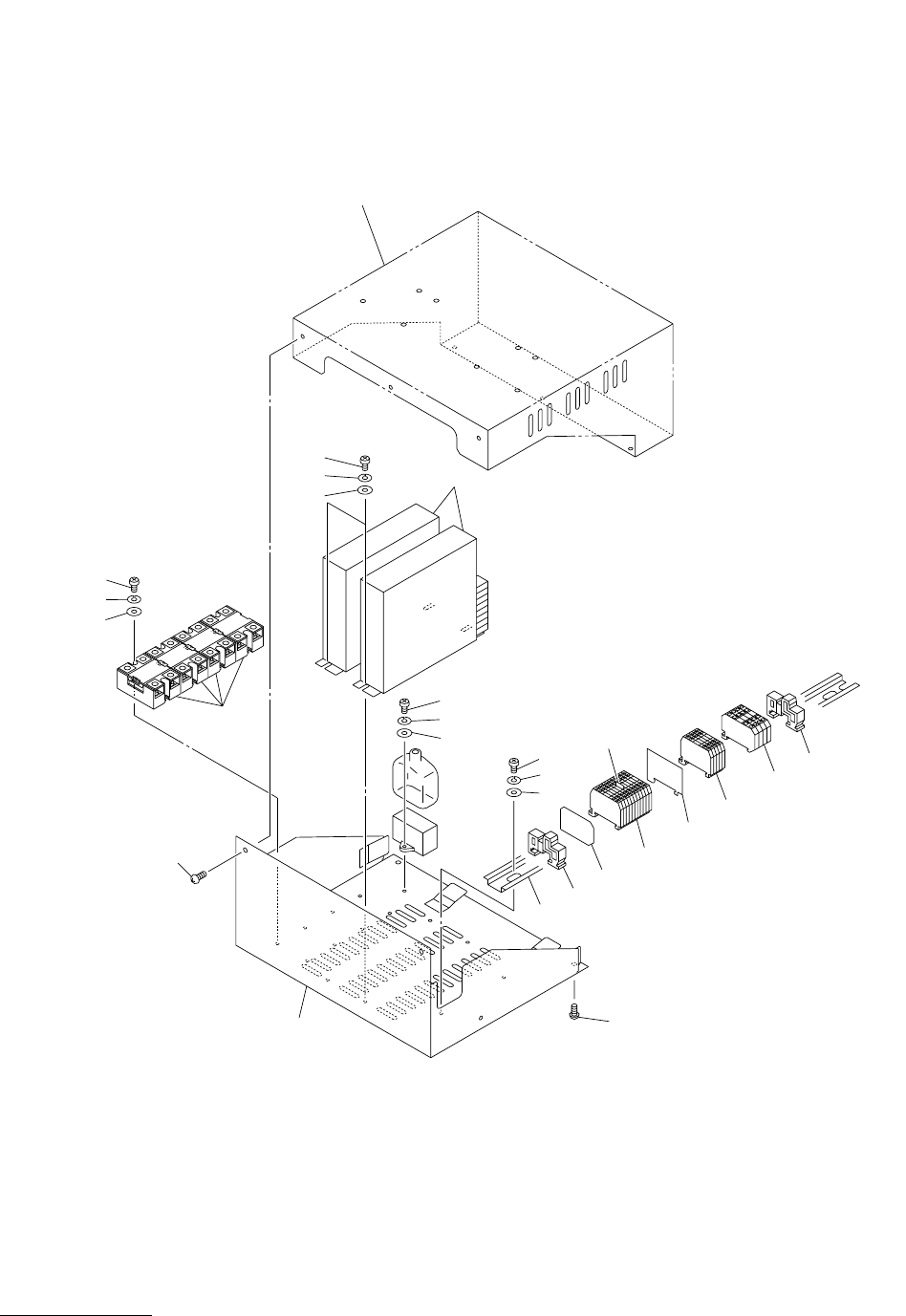

Fig. G-3 ࠦࡦࡌࠕ㚟േ࿁〝 L Conveyor Driver Circuit L
258
259
260
258
259
260
258
259
260
258
257
259
260
202
265
255
254
264
253
256
.
266
.
252
256
.
266
.
252
256
.
266
.
255
267
202
201
251
See Fig.G-4
Key No.316
Fig.G-3
TCM-X200
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
83
G-3
201 630 106 1399 BRACKET(TB) 1 696G--110-201
202 411 113 9109 SCR TRS 5X10 4 696G--110-202
251 630 049 1210 RELAY 4 KSSR1,KSSR2,KSSR5,KSSR6
696G--110-251
252 630 083 5458 TERMINAL 16 696G--110-252
253 630 083 5489 TERMINAL 4 696G--110-253
254 630 083 5502 ACCESSORY,WIRING 1 696G--110-254
255 630 049 3672 BRACKET,WIRING 2 696G--110-255
256 630 072 8408 ACCESSORY,WIRING 1 696G--110-256
257 630 080 6854 UNIT,DRIVER 2 APMD16(LCVW),APMD22(L2CV),
#AK-BX580SAT2 696G--110-257
258 411 113 1400 SCR PAN 4X6 15 696G--110-258
259 411 008 1706 WASHER SPR 4 15 696G--110-259
260 411 119 2104 WASHER V 4X9X0.8 15 696G--110-260
264 630 083 6158 ACCESSORY,WIRING 1 696G--110-264
265 630 089 6497 RAIL,WIRING 1 696G--110-265
266 630 058 8460 ACCESSORY,WIRING 2 696G--110-266
267 630 083 5564 ACCESSORY,WIRING 1 696G--110-267
MODEL TCM-X200
0203-002
84
L ࠦࡦࡌࠕㇱ L CONVEYOR SECTION

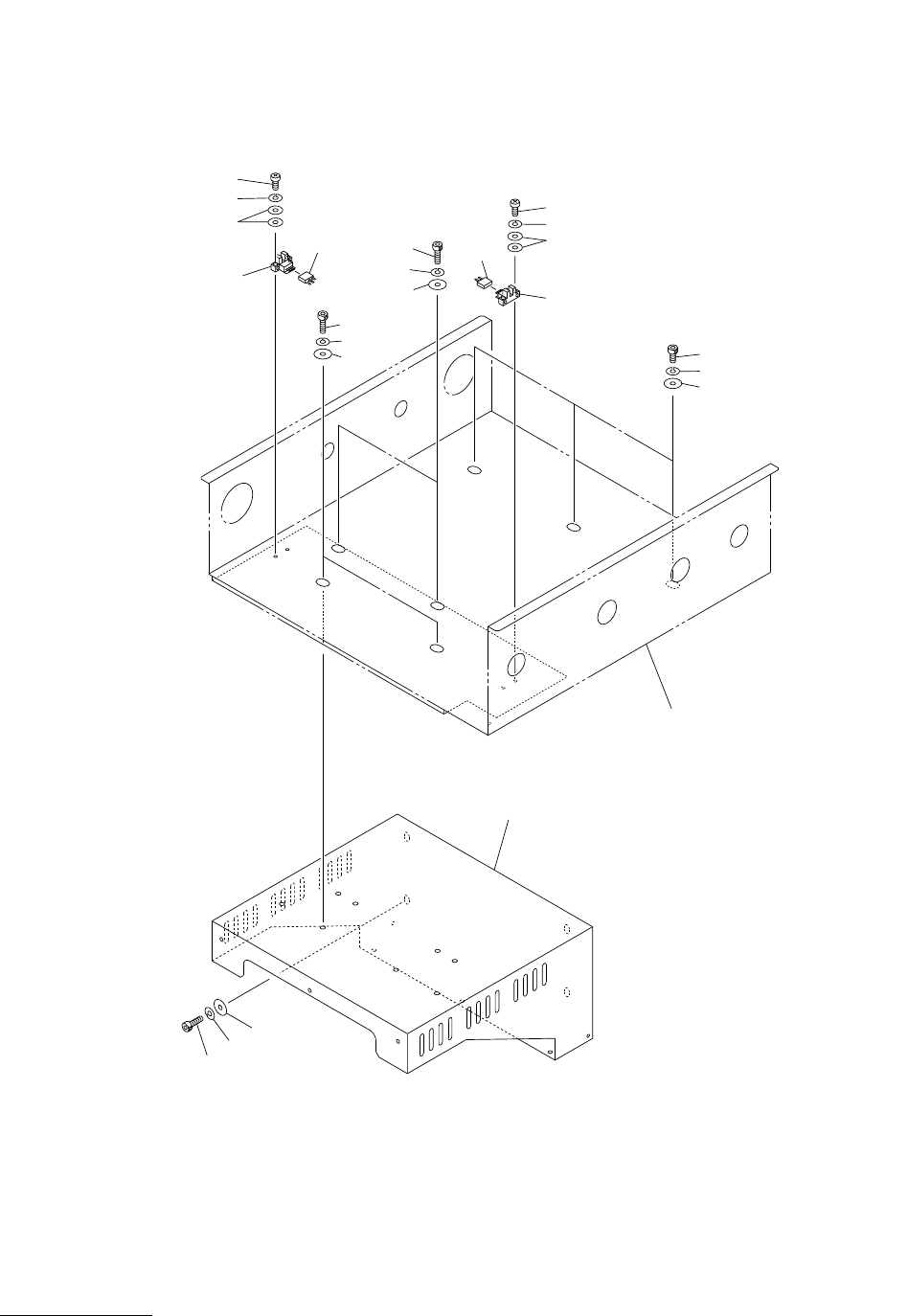

Fig. G-4 ࠦࡦࡌࠕࡦࠨ Conveyor Width Limit Sensor
306
305
304
313
311
310
313
314
311
310
302
306
305
304
312
316
317
319
318
311
310
302
303
See Fig.G-1
Key No.1
Fig.G-4
TCM-X200-002
