P-215-001e - 第136页
MEMO
MODEL TIM-X100F/R
0302-002
133
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
QC-4
301 630 110 7035 COVER 1 750QC-210-506
303 630 104 4378 PLATE(STOPPER) 1 750QC-210-043
304 630 103 1811 BRACKET 1 750QC-210-013
305 630 094 9247 NAME PLATE,INDEX 1 750QC-210-023
306 630 099 0980 BASE 1 750QC-210-001
307 630 101 1257 BLOCK 1 750QC-210-002
308 630 099 9235 PLATE 1 750QC-210-004
309 630 099 9228 BLOCK 2 750QC-210-005
310 630 099 2397 PIN,LOCATE 2 750QC-210-037
312 630 102 8699 VALVE 1 750QC-210-019
313 630 099 2366 BRACKET 2 750QC-210-035
314 630 099 2380 BLOCK 1 750QC-210-036
315 630 115 4022 GUIDE 17 750QC-210-040
316 630 115 2929 GUIDE 1 750QC-210-041
321 630 115 3049 BRACKET 1 750QC-210-008
322 630 099 2403 COVER 1 750QC-210-038
326 411 141 4305 WASHER V 6X12.5X1.6 5 750QC-210-326
327 411 141 3001 WASHER SPR 6 5 750QC-210-327
328 630 000 7893 BOLT,HEX-SCT 2 750QC-210-328
329 630 000 7909 BOLT,HEX-SCT 5 750QC-210-329
330 630 000 7930 BOLT,HEX-SCT 2 750QC-210-330
331 411 141 4107 WASHER V 5X10X1 16 750QC-210-331
332 411 141 6705 WASHER SPR 5 16 750QC-210-332
333 630 000 7749 BOLT,HEX-SCT 4 750QC-210-333
334 630 000 7756 BOLT,HEX-SCT 12 750QC-210-334
336 411 141 4008 WASHER V 4X9X0.8 9 750QC-210-336
337 411 141 2905 WASHER SPR 4 9 750QC-210-337
338 630 000 7657 BOLT,HEX-SCT 4 750QC-210-338
339 630 000 7664 BOLT,HEX-SCT 6 750QC-210-339
340 630 000 7688 BOLT,HEX-SCT 5 750QC-210-340
341 411 141 3902 WASHER V 3X7X0.5 4 750QC-210-341
342 411 141 2806 WASHER SPR 3 4 750QC-210-342
343 630 000 7503 BOLT,HEX-SCT 17 750QC-210-343
344 630 000 7534 BOLT,HEX-SCT 4 750QC-210-344
347 411 050 5004 SCR TRS 3X6 4 750QC-210-347
348 411 051 2804 SCR TRS 4X8 6 750QC-210-348
349 630 000 8883 SET SCREW 2 750QC-210-349
351 630 110 9732 P.C.B,MOUNT(HLS I/O-05) 1 UA76*005*0000 750QC-210-051
352 630 069 9616 ACCESSORY,P.C.B 5 750QC-210-052
363 630 110 5741 RELAY 1 -K51 750QC-210-063
371 630 097 9435 P.C.B,MOUNT(CN FB) 8 UA79*001*0000 750QC-210-071
395 630 001 0206 WASHER 5 750QC-210-095
396 411 041 8908 SCR PAN 3X6 7 750QC-210-096
397 411 040 6202 SCR PAN 3X10 16 750QC-210-097
398 411 086 4408 WASHER SPR 3 28 750QC-210-098
399 411 119 1909 WASHER V 3X7X0.5 28 750QC-210-099
MEMO
MODEL TIM-X100F/R
0112-001
135
Fig.R
TIM-X100

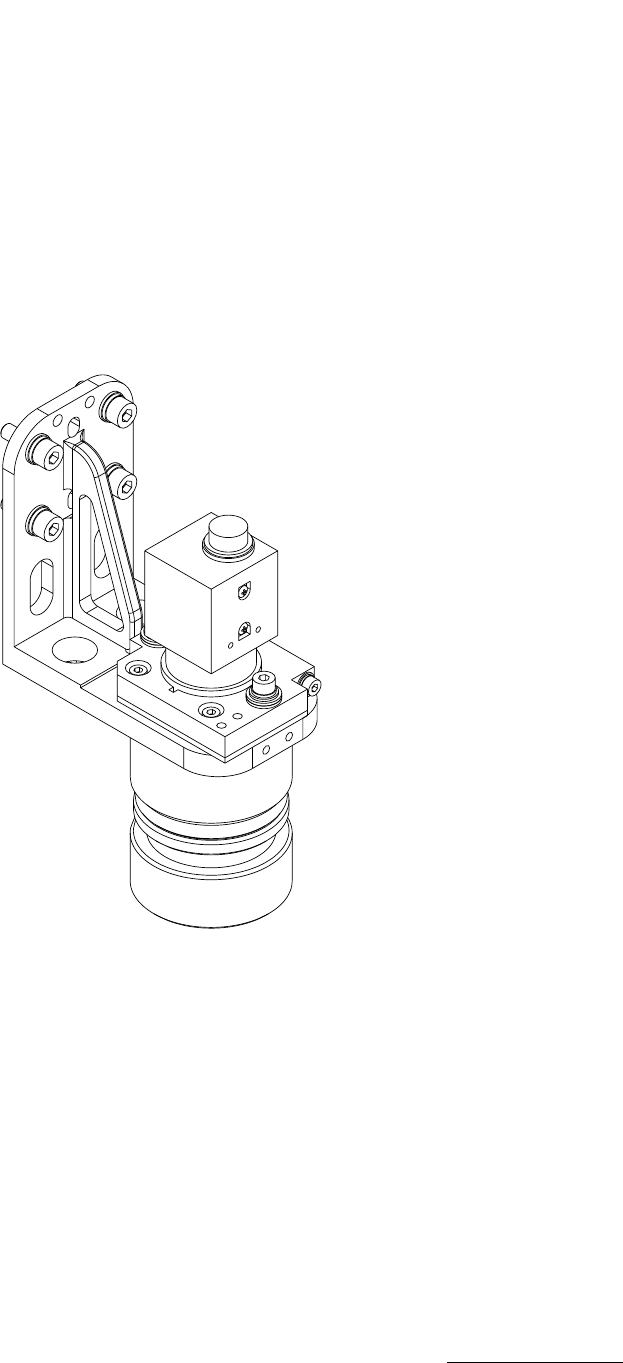

Fig. R 基板認識カメラ部 P.E.C CAMERA SECTION
