MODEL TIM-X100F/R 0302-002 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 141 V A-1 51 630 101 0533 P ANEL 1 750V A-210-051 53 408 031 0004 V ARISTOR R.A.V-781BXZ-4 1 FV01 750V A-210-053 54 630 094 1500 CIRCUIT PROTEC…
MODEL TIM-X100F/R
0302-002
140

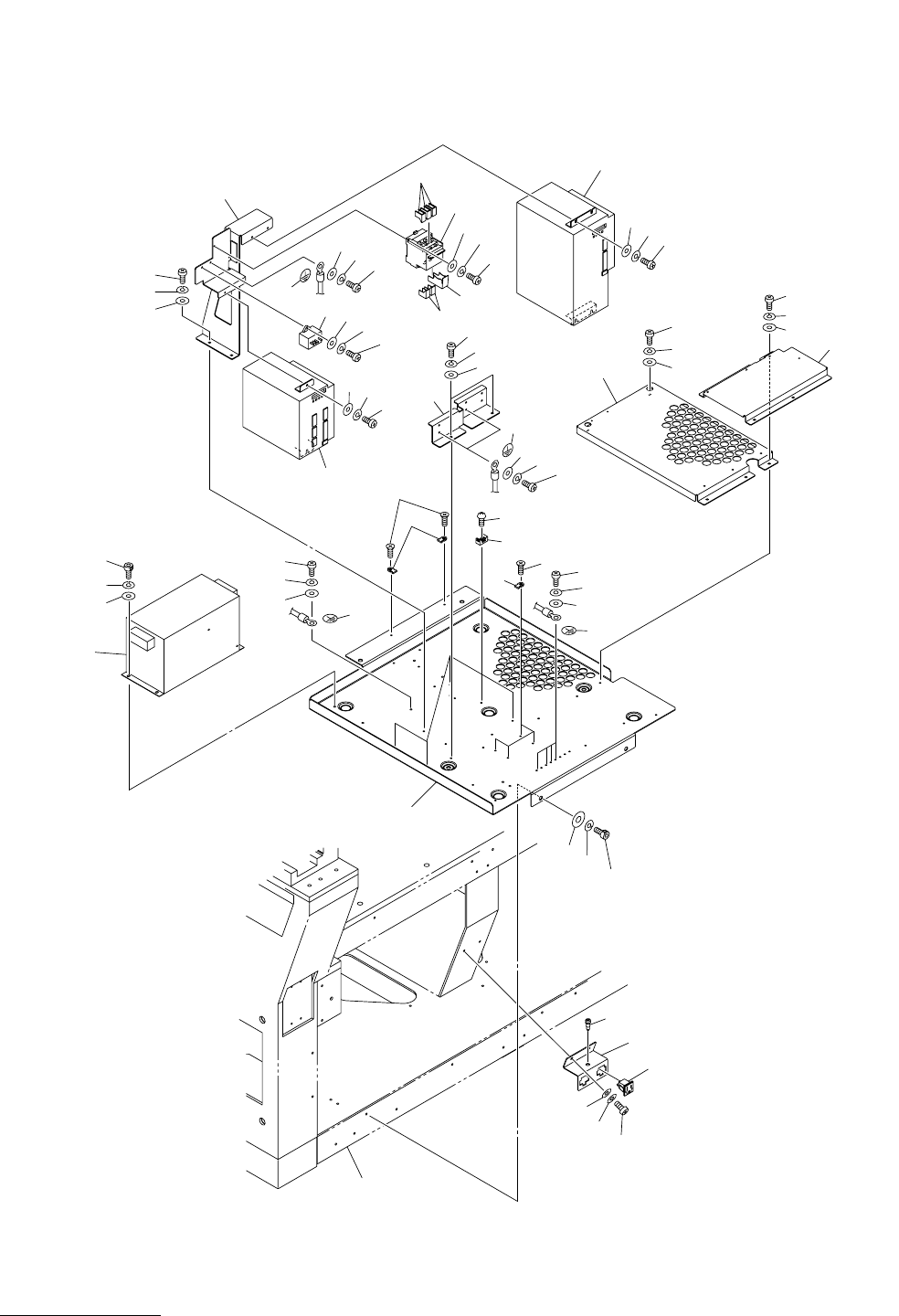

本体電装部 前側 ELECTRICAL SECTION-FRONT
Fig. VA-1 X ２軸、Y ２軸ドライバ X2 Axis, Y2 Axis Driver
91
64
90
88
Fig.VA-1
TIM-X100-002
54
55
88
90
91
58
62
86
85
84
56
55
89
88
90
91
90
91
88
92
67
58
91
90
88
65
90
91
88
90
91
53
81
98
83
60
94
58
96
97
51
99
98
95
92
58
91
90
88
67
70
68
69
97
96
94
63
88
90
91
71
91
90
88
61
66
93
See Fig.B-1
Key No.1
MODEL TIM-X100F/R
0302-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
141
VA-1
51 630 101 0533 PANEL 1 750VA-210-051
53 408 031 0004 VARISTOR R.A.V-781BXZ-4 1 FV01 750VA-210-053
54 630 094 1500 CIRCUIT PROTECTOR 1 Q201 750VA-210-054
55 630 071 3343 COVER 5 750VA-210-055
56 630 071 3350 COVER 1 750VA-210-056
58 630 050 5122 NAME PLATE,NOTICE 8 750VA-210-058
60 630 107 3163 FILTER,NOISE 1 Z01 750VA-210-060
61 630 096 0884 BRACKET 1 750VA-210-061
62 630 103 2528 BRACKET 1 750VA-210-062
63 630 095 9031 UNIT,DRIVER 1 ASMD-X2,#SGDD-08AM4B-RY2
750VA-210-063
64 630 095 9048 UNIT,DRIVER 1 ASMD-Y2,#SGDD-20AM6B-RY2
750VA-210-064
65 630 101 1493 PANEL 1 750VA-210-065
66 630 048 3833 MECH PARTS(MOUNTING BASES 5 750VA-210-066
67 630 099 6241 ACCESSORY,WIRING 6 750VA-210-067
68 630 116 1532 BRACKET 1 750VA-210-068
69 630 097 6502 SOCKET 1 750VA-210-069
70 630 089 0556 SOCKET 1 750VA-210-070
71 630 101 1516 PANEL 1 750VA-210-071
81 630 000 7749 BOLT,HEX-SCT 4 750VA-210-081
83 411 141 4107 WASHER V 5X10X1 4 750VA-210-083
84 411 040 6202 SCR PAN 3X10 2 750VA-210-084
85 411 086 4408 WASHER SPR 3 2 750VA-210-085
86 411 119 1909 WASHER V 3X7X0.5 2 750VA-210-086
88 411 043 5004 SCR PAN 4X8 24 750VA-210-088
89 411 042 3001 SCR PAN 4X10 1 750VA-210-089
90 411 008 1706 WASHER SPR 4 25 750VA-210-090
91 411 119 2104 WASHER V 4X9X0.8 25 750VA-210-091
92 411 140 7208 SCR FLT 4X6 6 750VA-210-092
93 411 051 1708 SCR TRS 4X6 5 750VA-210-093
94 411 113 2803 SCR PAN 5X8 3 750VA-210-094
95 630 000 7756 BOLT,HEX-SCT 6 750VA-210-095
96 411 008 2109 WASHER SPR 5 3 750VA-210-096
97 411 088 1702 WASHER V 5X10X1 3 750VA-210-097
98 411 141 6705 WASHER SPR 5 10 750VA-210-098
99 630 001 0220 WASHER 6 750VA-210-099
MODEL TIM-X100F/R
0302-002
142

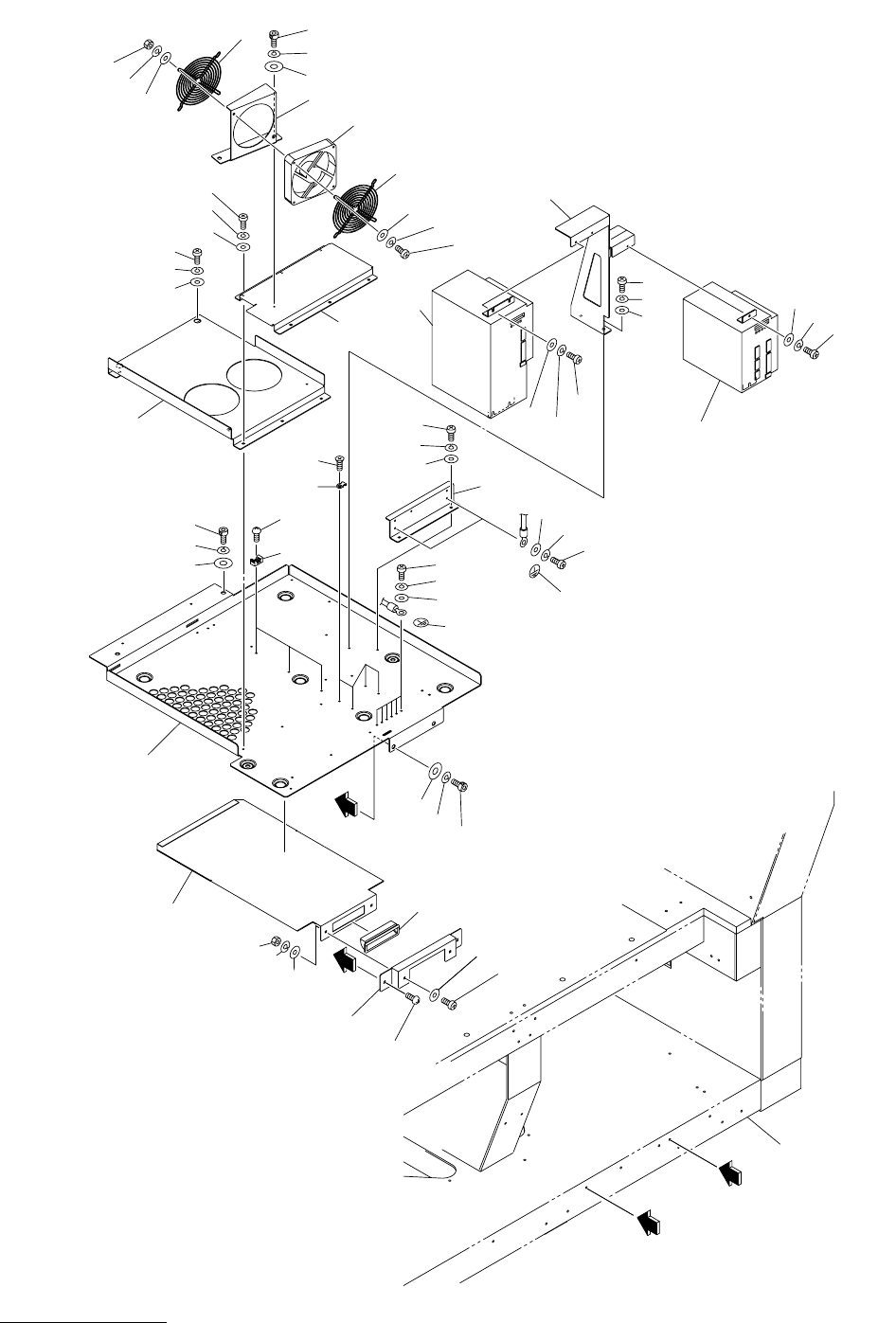

本体電装部 前側 ELECTRICAL SECTION-FRONT
Fig. VA-2 X １軸、Y １軸ドライバ X1 Axis, Y1 Axis Driver
187
154
153
194
193
192
192
193
194
155
192
193
194
152
195
159
156
151
192
193
194
156
199
161
189
163
198
197
Fig.VA-2
TIM-X100-002
191
162
B
190
188
189
A
196
158
197
198
199
157
194
193
192
160
194
193
192
A
B
See Fig.B-1
Key No.1
194
193
192
194
193
192
184
166
194
193
182
185
186
165
166
194
193
183
164
