MODEL TIM-X100F/R 0302-002 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 151 V A-6 55 1 630 1 16 3765 EM-CONT ACT OR 5 KM-X0,KM-Y0,KM-X2,KM-X1,KM-Y 750V A-210-551 55 2 630 1 16 3758 EM-CONT ACT OR 5 KM01,KM-LZ1,KM-LZ…
MODEL TIM-X100F/R
0302-002
150

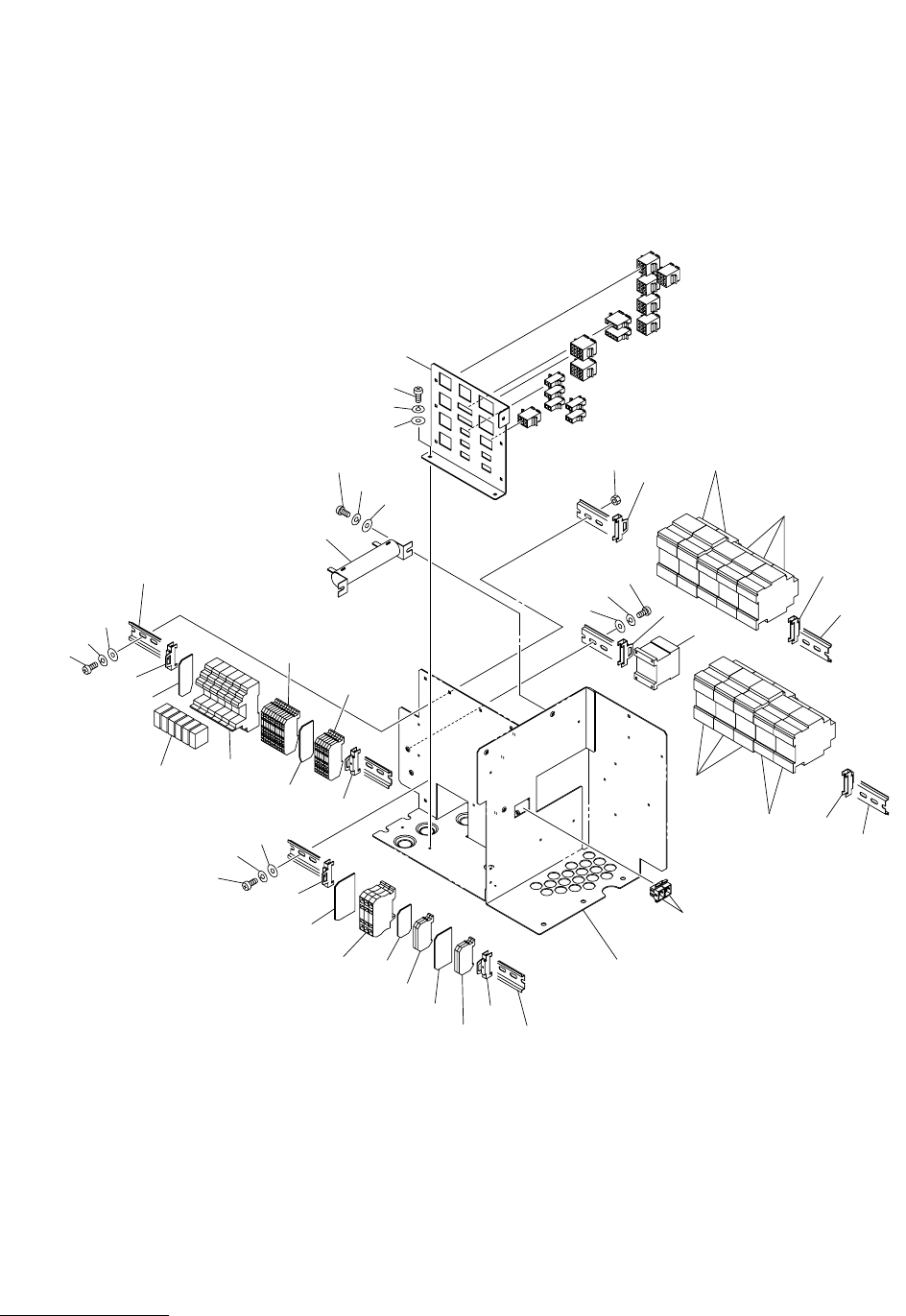

本体電装部 前側 ELECTRICAL SECTION-FRONT
Fig. VA-6
ブレーカ、電磁接触器パネル２
Breaker,Magnet Contactor Panel 2
597
598
599
567
599
598
597
554
577
568
599
572
571
575
574
576
574
568
583
551
553
568
585
599
598
567
596
568
551
552
568
597
552
568
598
597
568
561
560
555
562
560
568
570
Fig.VA-6
TIM-X100-002
563
.
566
.
564
.
565
.
573
.
599
598
597
569
See Fig.VA-5
Key No.451
MODEL TIM-X100F/R
0302-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
151
VA-6
551 630 116 3765 EM-CONTACTOR 5 KM-X0,KM-Y0,KM-X2,KM-X1,KM-Y
750VA-210-551
552 630 116 3758 EM-CONTACTOR 5 KM01,KM-LZ1,KM-LZ,KM-NC,KM-LZ2
750VA-210-552
553 630 094 1418 EM-CONTACTOR 1 KM-VAC 750VA-210-553
554 630 068 9723 RELAY 6 K64A,K64B,K-BPC,K-L1,K-L2,K68
750VA-210-554
555 630 049 2064 SOCKET 6 750VA-210-555
560 630 083 5472 TERMINAL 16 750VA-210-560
561 630 083 5519 ACCESSORY,WIRING 1 750VA-210-561
562 630 098 2749 ACCESSORY,WIRING 1 750VA-210-562
563 630 072 8408 ACCESSORY,WIRING 1 750VA-210-563
564 630 083 5540 ACCESSORY,WIRING 2 750VA-210-564
565 630 083 5564 ACCESSORY,WIRING 3 750VA-210-565
566 630 095 2735 ACCESSORY,WIRING 1 750VA-210-566
567 630 089 6510 RAIL,WIRING 2 750VA-210-567
568 630 000 1051 BRACKET,WIRING 8 750VA-210-568
569 402 079 8909 WIRE WOUND 50 JE 80W 1 R1 750VA-210-569
570 630 103 5604 PANEL 1 750VA-210-570
571 630 083 5595 TERMINAL 3 750VA-210-571
572 630 085 2158 ACCESSORY,WIRING 1 750VA-210-572
573 630 083 5601 ACCESSORY,WIRING 1 750VA-210-573
574 630 083 5458 TERMINAL 4 750VA-210-574
575 630 083 5502 ACCESSORY,WIRING 1 750VA-210-575
576 630 083 6158 ACCESSORY,WIRING 1 750VA-210-576
577 630 089 6497 RAIL,WIRING 1 750VA-210-577
585 630 089 6527 RAIL,WIRING 1 750VA-210-585
596 411 054 8506 NUT HEX 4 2 750VA-210-596
597 411 043 5004 SCR PAN 4X8 11 750VA-210-597
598 411 008 1706 WASHER SPR 4 11 750VA-210-598
599 411 119 2104 WASHER V 4X9X0.8 11 750VA-210-599
MODEL TIM-X100F/R
0112-001
152
本体電装部 前側 ELECTRICAL SECTION-FRONT
Fig. VA-7 DC 電源部 DC Power Supply Section
656
654
696
698
699
659
699
698
696
Fig.VA-7
TIM-X100
See Fig.VA-2
Key No.151
699
694
693
691
694
693
691
698
696
699
698
696
696
698
699
659
699
655
652
653
698
696
651
697
698
695
