MODEL TIM-X100F/R 0302-001 154 本体電装部 前側 ELECTRICAL SECTION-FRONT Fig. V A-8 サーボドライバ上面ファン Upper Fan for Servo Driver Fig.VA-8 TIM-X100 798 753 797 796 751 795 794 793 752 753 797 798 799 799 798 797 753 752 751 753 798 79…
MODEL TIM-X100F/R
0112-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
153
VA-7
651 630 094 6345 BRACKET 1 750VA-210-651
652 630 103 2894 UNIT,POWER 1 G01,PAA100F-24-N 750VA-210-652
653 630 086 0245 UNIT,POWER 1 G02,PAA600F-24 750VA-210-653
654 630 055 2201 UNIT,POWER 1 G03,P30E-24-N 750VA-210-654
655 630 094 1449 UNIT,POWER 1 G04,PAA100F-48-RN 750VA-210-655
656 630 103 2887 UNIT,POWER 1 G05,PAA75F-5-RN 750VA-210-656
659 630 050 5122 NAME PLATE,NOTICE 6 750VA-210-659
691 411 041 8908 SCR PAN 3X6 5 750VA-210-691
693 411 086 4408 WASHER SPR 3 5 750VA-210-693
694 411 119 1909 WASHER V 3X7X0.5 5 750VA-210-694
695 630 001 0213 WASHER 2 750VA-210-695
696 411 043 5004 SCR PAN 4X8 18 750VA-210-696
697 411 042 3001 SCR PAN 4X10 2 750VA-210-697
698 411 008 1706 WASHER SPR 4 20 750VA-210-698
699 411 119 2104 WASHER V 4X9X0.8 18 750VA-210-699
MODEL TIM-X100F/R
0302-001
154

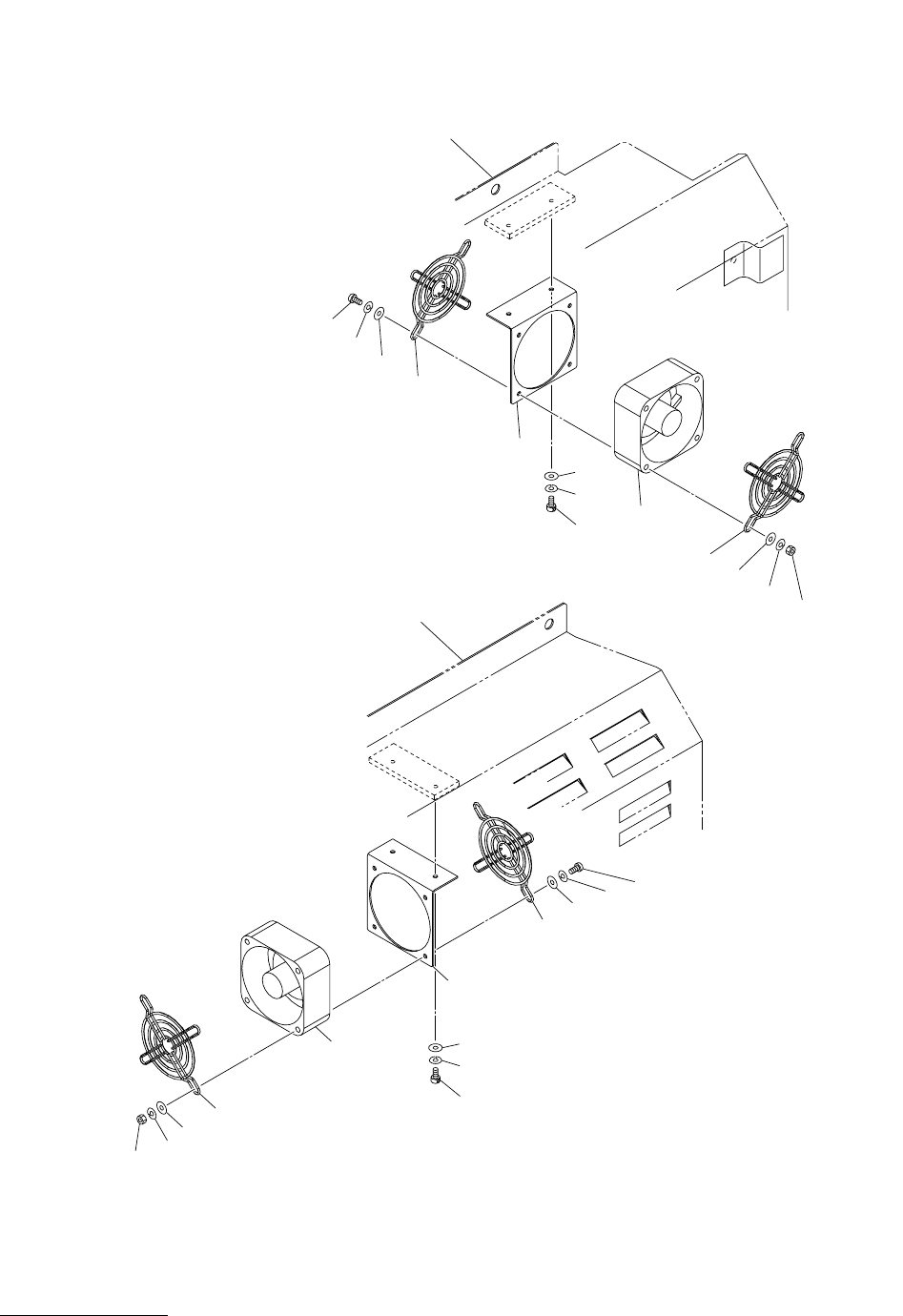

本体電装部 前側 ELECTRICAL SECTION-FRONT
Fig. VA-8
サーボドライバ上面ファン
Upper Fan for Servo Driver
Fig.VA-8
TIM-X100
798
753
797
796
751
795
794
793
752
753
797
798
799
799
798
797
753
752
751
753
798
797
796
795
794
793
See Fig.G-2
Key No.103
See Fig.G-2
Key No.102
MODEL TIM-X100F/R
0302-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
155
VA-8
751 630 117 1753 BRACKET 2 750VA-210-751
752 630 116 9231 MOTOR,DC 2 MFAN15,MFAN16, MD625B-24
750VA-210-752
753 630 116 9248 ACCESSORY,MOT-M 4 750VA-210-753
793 630 000 7503 BOLT,HEX-SCT 4 750VA-210-793
794 411 141 2806 WASHER SPR 3 4 750VA-210-794
795 411 141 3902 WASHER V 3X7X0.5 4 750VA-210-795
796 630 000 9217 MACHINE SCREW 4 750VA-210-796
797 411 086 4408 WASHER SPR 3 8 750VA-210-797
798 411 119 1909 WASHER V 3X7X0.5 8 750VA-210-798
799 411 054 6809 NUT HEX 3 4 750VA-210-799
