MODEL TIM-X100F/R 0302-002 176 本体電装部 上側 ELECTRICAL SECTION-UPPER Fig. VC-1 メインブレーカ、メカ廻り冷却ファン Main Breaker , Cooling Fan Fig.VC-1 TIM-X100-002 56 54 94 95 93 55 99 98 92 98 99 97 99 98 96 51 52 57 98 97 99 56 54 55 92 98 …
MODEL TIM-X100F/R
0302-002
175

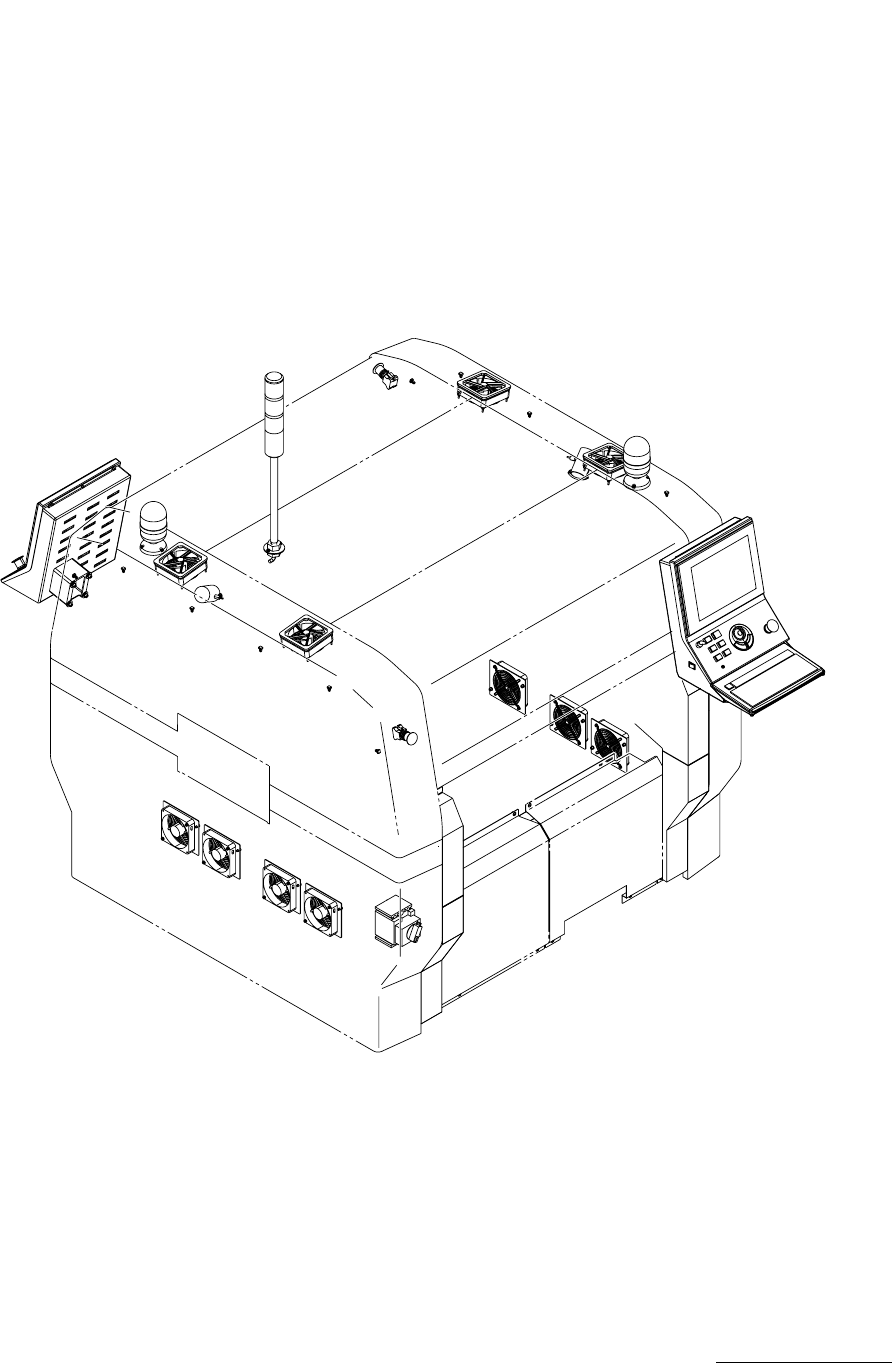

Fig. VC 本体電装部 上側 ELECTRICAL SECTION-UPPER
Fig.VC
TIM-X100-002
MODEL TIM-X100F/R
0302-002
176

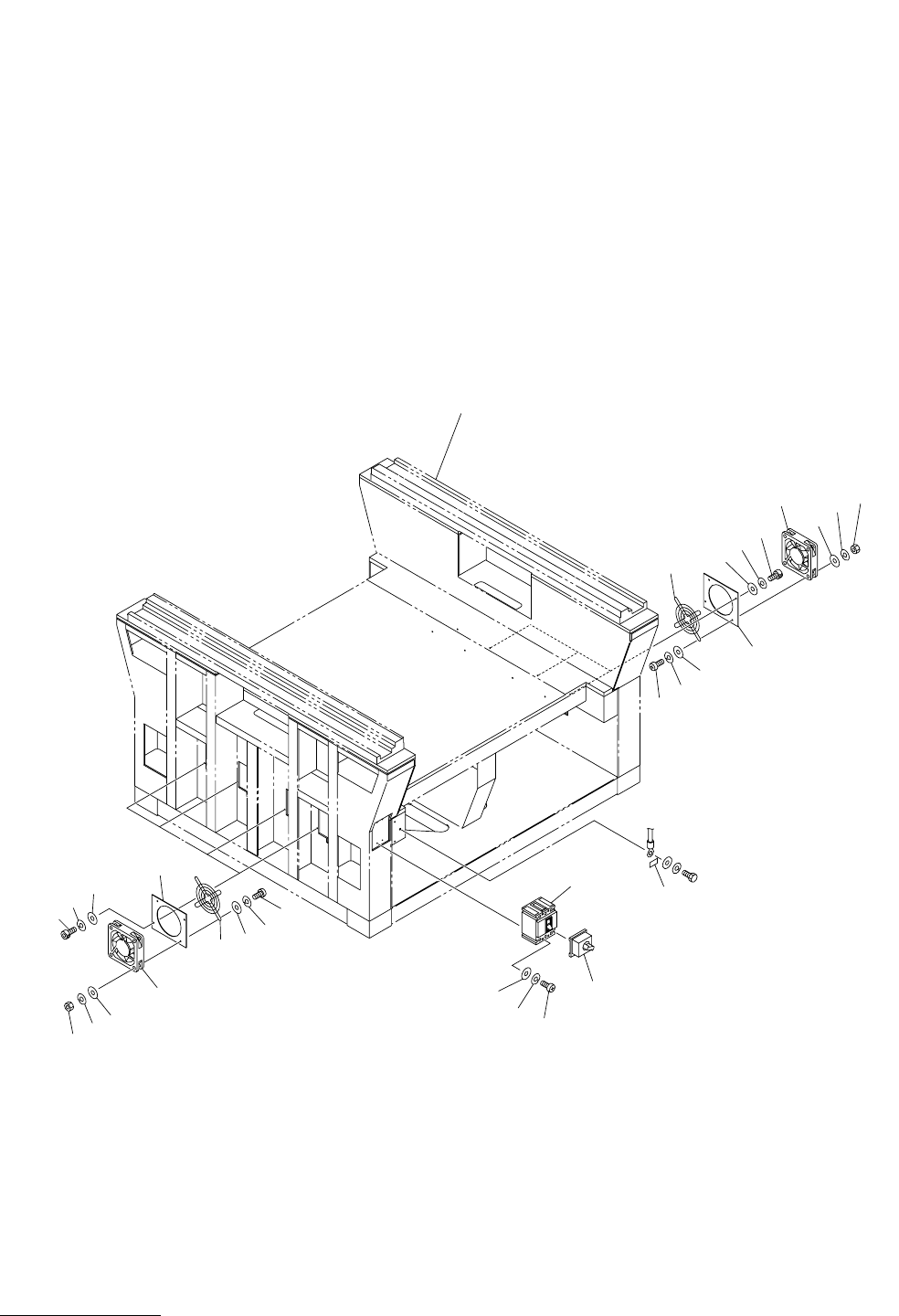

本体電装部 上側 ELECTRICAL SECTION-UPPER
Fig. VC-1
メインブレーカ、メカ廻り冷却ファン
Main Breaker, Cooling Fan
Fig.VC-1
TIM-X100-002
56
54
94
95
93
55
99
98
92
98
99
97
99
98
96
51
52
57
98
97
99
56
54
55
92
98
99
94
95
93
See Fig.B-1
Key No.1
MODEL TIM-X100F/R
0302-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
177
VC-1
51 630 086 3857 BREAKER 1 Q200 750VC-210-051
52 630 083 5441 HANDLE 1 750VC-210-052
54 630 114 9783 PLATE 7 750VC-210-054
55 630 062 8258 MOTOR,DC 7 MFAN1-3,5-8, MDS1225-24
750VC-210-055
56 630 071 6542 ACCESSORY,MOT-M 7 750VC-210-056
57 630 107 4221 NAME PLATE,PARTS 1 750VC-210-057
92 411 054 8506 NUT HEX 4 14 750VC-210-092
93 630 000 7749 BOLT,HEX-SCT 14 750VC-210-093
94 411 141 6705 WASHER SPR 5 14 750VC-210-094
95 411 141 4107 WASHER V 5X10X1 14 750VC-210-095
96 411 003 0001 SCR PAN 4X12 2 750VC-210-096
97 411 161 9007 SCR PAN 4X35 14 750VC-210-097
98 411 008 1706 WASHER SPR 4 30 750VC-210-098
99 411 119 2104 WASHER V 4X9X0.8 30 750VC-210-099
