MODEL TIM-X100F/R 01 12-001 182 本体電装部 上側 ELECTRICAL SECTION-UPPER Fig. VC-4 作業灯 Working Lamp Fig.VC-4 TIM-X100 See Fig.G-3 Key No.217 See Fig.G-3 Key No.217 397 398 399 352 397 351 351-01 354 353 354 397 398 399 352 397 …
MODEL TIM-X100F/R
0302-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
181
VC-3
251 630 064 6528 SWITCH,BUTTON 2 SPB32,SPB34 750VC-210-251
252 630 118 4661 PILOT LAMP 1 750VC-210-252
253 630 035 2658 BRACKET 1 750VC-210-253
254 630 099 2427 PILOT LAMP 2 750VC-210-254
254 -01 630 099 2250 LAMP 1 HPL05,HPL06
255 630 114 6591 ACCESSORY,WIRING 12 750VC-210-255
294 411 003 0001 SCR PAN 4X12 6 750VC-210-294
295 411 008 1706 WASHER SPR 4 6 750VC-210-295
296 411 119 2104 WASHER V 4X9X0.8 6 750VC-210-296
297 411 043 6803 SCR PAN 5X12 2 750VC-210-297
298 411 008 2109 WASHER SPR 5 2 750VC-210-298
299 411 088 1702 WASHER V 5X10X1 2 750VC-210-299
MODEL TIM-X100F/R
0112-001
182
本体電装部 上側 ELECTRICAL SECTION-UPPER

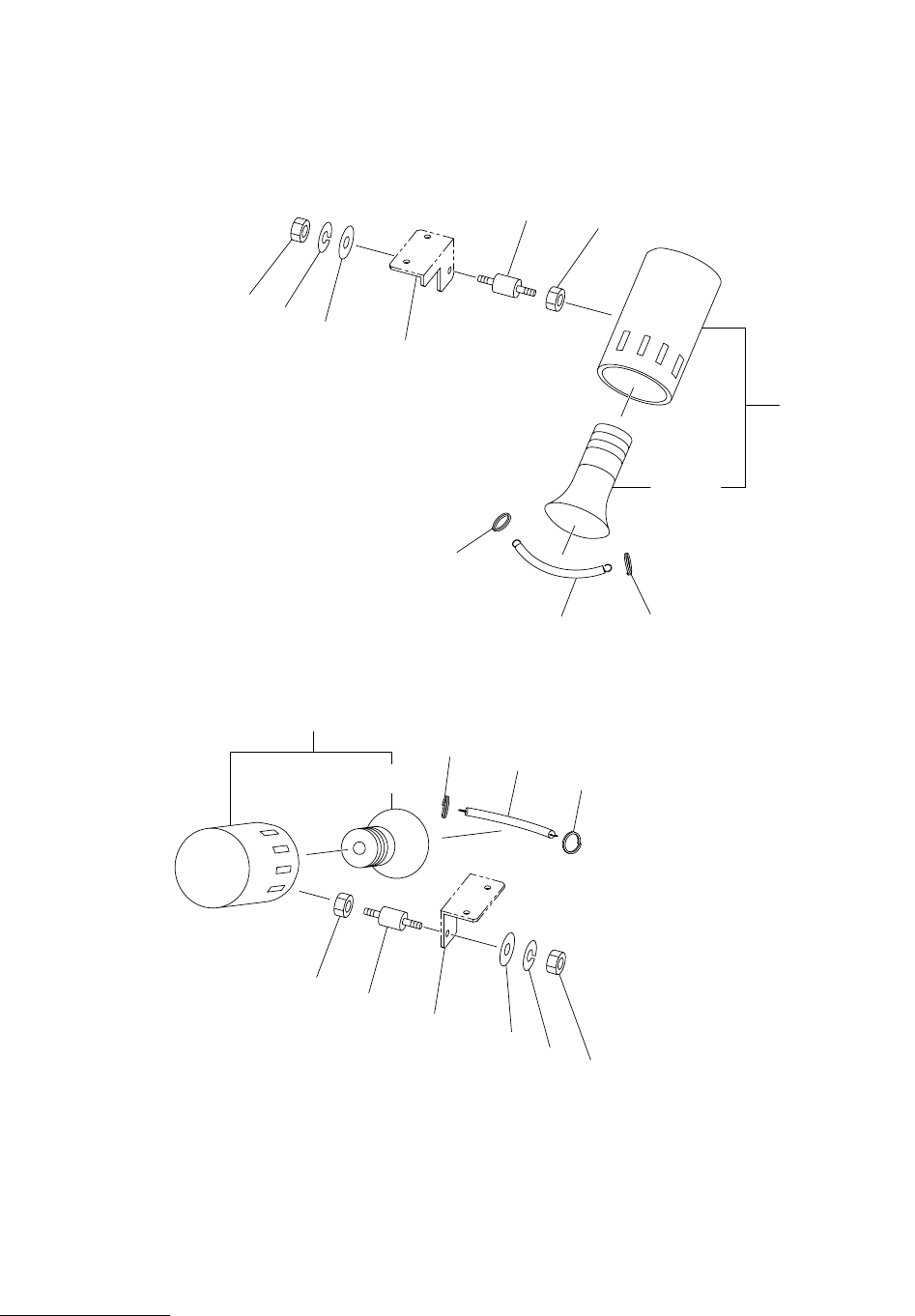

Fig. VC-4 作業灯 Working Lamp
Fig.VC-4
TIM-X100
See Fig.G-3
Key No.217
See Fig.G-3
Key No.217
397
398
399
352
397
351
351-01
354
353
354
397
398
399
352
397
351
351-01
353
354
354
MODEL TIM-X100F/R
0112-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
183
VC-4
351 630 000 5271 LIGHTING UNIT 2 750VC-210-351
351 -01 630 005 4286 LAMP 1 E10,E11
352 630 003 6916 MECH PARTS(RUBBER DAMPER) 2 750VC-210-352
353 630 001 8080 SPRING,TENSION 2 750VC-210-353
354 630 077 1688 RING 4 750VC-210-354
397 411 054 8506 NUT HEX 4 4 750VC-210-397
398 411 008 1706 WASHER SPR 4 2 750VC-210-398
399 411 119 2104 WASHER V 4X9X0.8 2 750VC-210-399
