本体電装部 上側 ELECTRICAL SECTION-UPPER

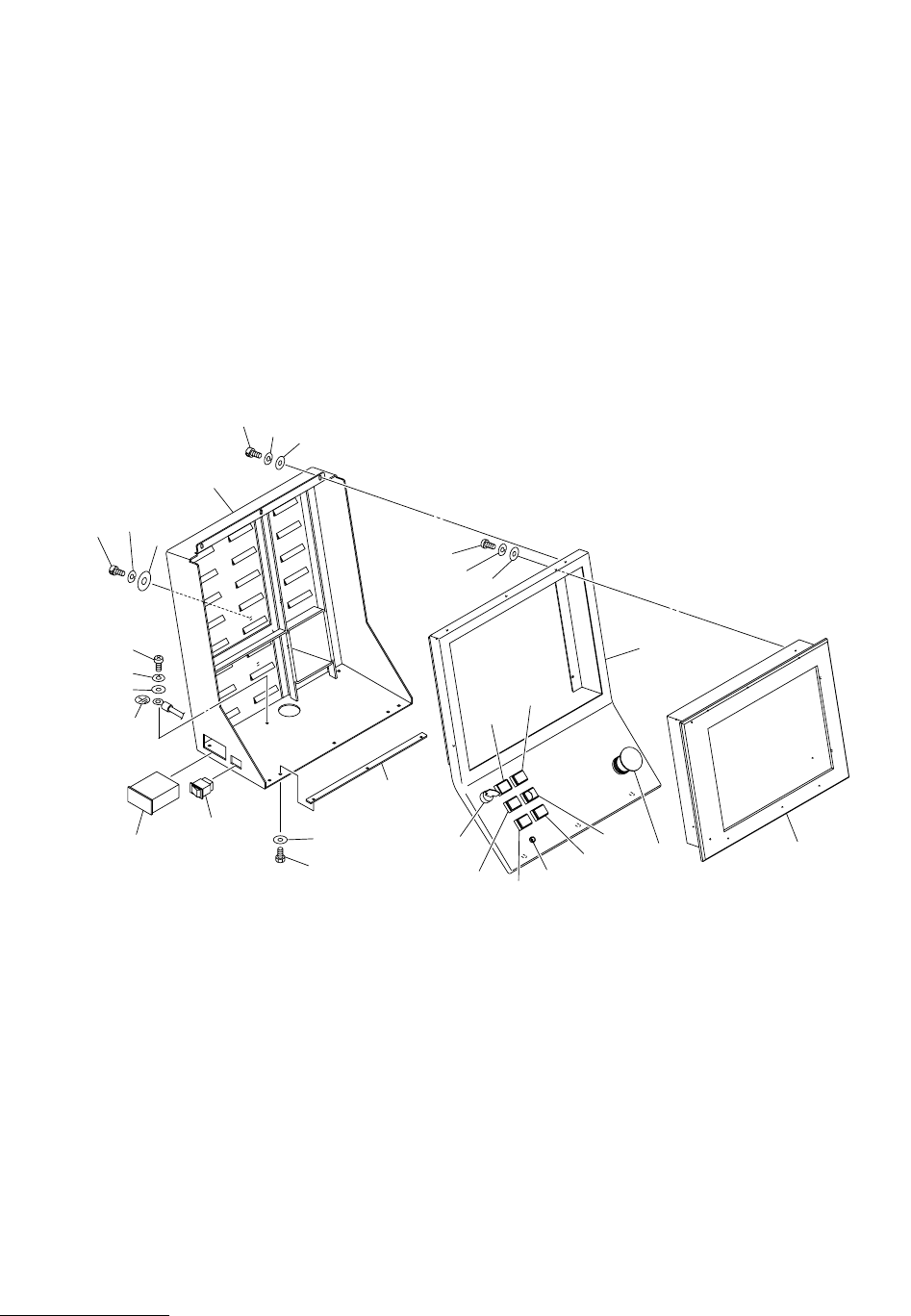

Fig. VC-6 後面操作パネル Rear Operation Panel
Fig.VC-6
TIM-X100
579
578
591
551
599
580
595
598
570
569
565
598
593
581
555
560
559
560
561
564
554
563
552
594
597
592
596
590
557
556
.
558
.
562
560
.
MODEL TIM-X100F/R
0302-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
187
VC-6
551 630 105 7101 BOX 1 750VC-210-551
552 630 106 7278 PANEL 1 750VC-210-552
554 630 098 5443 UNIT,DISPLAY 1 #TM12101-SB 750VC-210-554
555 630 000 3130 SWITCH,SELECTOR 1 -S01 750VC-210-555
556 630 033 4609 SWITCH,BUTTON 1 -SPB10 750VC-210-556
557 630 033 4593 ACCESSORY,SW 1 750VC-210-557
558 630 033 4586 DISPLAY ELEMENT 1 -HD10 750VC-210-558
559 630 000 2744 SWITCH,BUTTON 1 -SPB11(-HD11) 750VC-210-559
560 630 000 2713 SWITCH,BUTTON 3 -SPB12(-HD12),-SPB14(-HD14),
-SPB15(-HD15) 750VC-210-560
561 630 000 2515 SWITCH,BUTTON 1 -SPB13 750VC-210-561
562 630 000 0382 ACCESSORY,SW 1 750VC-210-562
563 407 035 4704 LED SLP-721F 1 -HD16 750VC-210-563
564 630 064 6528 SWITCH,BUTTON 1 SPB31 750VC-210-564
565 630 076 0644 SWITCH,SEESAW 1 S22 750VC-210-565
569 630 120 3911 COUNTER 1 PCNT01 750VC-210-569
570 630 050 5122 NAME PLATE,NOTICE 1 750VC-210-570
578 411 141 2905 WASHER SPR 4 3 750VC-210-578
579 411 141 4008 WASHER V 4X9X0.8 3 750VC-210-579
580 411 043 5004 SCR PAN 4X8 1 750VC-210-580
581 630 105 7200 PLATE 1 750VC-210-581
590 630 000 7886 BOLT,HEX-SCT 4 750VC-210-590
591 630 000 7619 BOLT,HEX-SCT 3 750VC-210-591
592 411 042 0703 SCR PAN 3X8 4 750VC-210-592
593 411 140 4702 BOLT HEX 4X10 3 750VC-210-593
594 411 086 4408 WASHER SPR 3 4 750VC-210-594
595 411 008 1706 WASHER SPR 4 1 750VC-210-595
596 411 008 2505 WASHER SPR 6 4 750VC-210-596
597 411 119 1909 WASHER V 3X7X0.5 4 750VC-210-597
598 411 119 2104 WASHER V 4X9X0.8 4 750VC-210-598
599 630 001 0237 WASHER 4 750VC-210-599
MODEL TIM-X100F/R
0302-002
188
本体電装部 上側 ELECTRICAL SECTION-UPPER
Fig. VC-7 FDD、CD-ROM ドライブ FDD, CD-ROM Drive
Fig.VC-7
TIM-X100-002
688
685
686
See Fig.VC-5
Key No.451
692
654
693
695
698
651
652
655
657
657
657
656
693
695
698
697
694
