MODEL TIM-X100F/R 0302-002 188 本体電装部 上側 ELECTRICAL SECTION-UPPER Fig. VC-7 F D D 、 CD-ROM ドライブ FDD, CD-ROM Drive Fig.VC-7 TIM-X100-002 688 685 686 See Fig.VC-5 Key No.451 692 654 693 695 698 651 652 655 657 657 657 656 6…
MODEL TIM-X100F/R
0302-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
187
VC-6
551 630 105 7101 BOX 1 750VC-210-551
552 630 106 7278 PANEL 1 750VC-210-552
554 630 098 5443 UNIT,DISPLAY 1 #TM12101-SB 750VC-210-554
555 630 000 3130 SWITCH,SELECTOR 1 -S01 750VC-210-555
556 630 033 4609 SWITCH,BUTTON 1 -SPB10 750VC-210-556
557 630 033 4593 ACCESSORY,SW 1 750VC-210-557
558 630 033 4586 DISPLAY ELEMENT 1 -HD10 750VC-210-558
559 630 000 2744 SWITCH,BUTTON 1 -SPB11(-HD11) 750VC-210-559
560 630 000 2713 SWITCH,BUTTON 3 -SPB12(-HD12),-SPB14(-HD14),
-SPB15(-HD15) 750VC-210-560
561 630 000 2515 SWITCH,BUTTON 1 -SPB13 750VC-210-561
562 630 000 0382 ACCESSORY,SW 1 750VC-210-562
563 407 035 4704 LED SLP-721F 1 -HD16 750VC-210-563
564 630 064 6528 SWITCH,BUTTON 1 SPB31 750VC-210-564
565 630 076 0644 SWITCH,SEESAW 1 S22 750VC-210-565
569 630 120 3911 COUNTER 1 PCNT01 750VC-210-569
570 630 050 5122 NAME PLATE,NOTICE 1 750VC-210-570
578 411 141 2905 WASHER SPR 4 3 750VC-210-578
579 411 141 4008 WASHER V 4X9X0.8 3 750VC-210-579
580 411 043 5004 SCR PAN 4X8 1 750VC-210-580
581 630 105 7200 PLATE 1 750VC-210-581
590 630 000 7886 BOLT,HEX-SCT 4 750VC-210-590
591 630 000 7619 BOLT,HEX-SCT 3 750VC-210-591
592 411 042 0703 SCR PAN 3X8 4 750VC-210-592
593 411 140 4702 BOLT HEX 4X10 3 750VC-210-593
594 411 086 4408 WASHER SPR 3 4 750VC-210-594
595 411 008 1706 WASHER SPR 4 1 750VC-210-595
596 411 008 2505 WASHER SPR 6 4 750VC-210-596
597 411 119 1909 WASHER V 3X7X0.5 4 750VC-210-597
598 411 119 2104 WASHER V 4X9X0.8 4 750VC-210-598
599 630 001 0237 WASHER 4 750VC-210-599
MODEL TIM-X100F/R
0302-002
188
本体電装部 上側 ELECTRICAL SECTION-UPPER

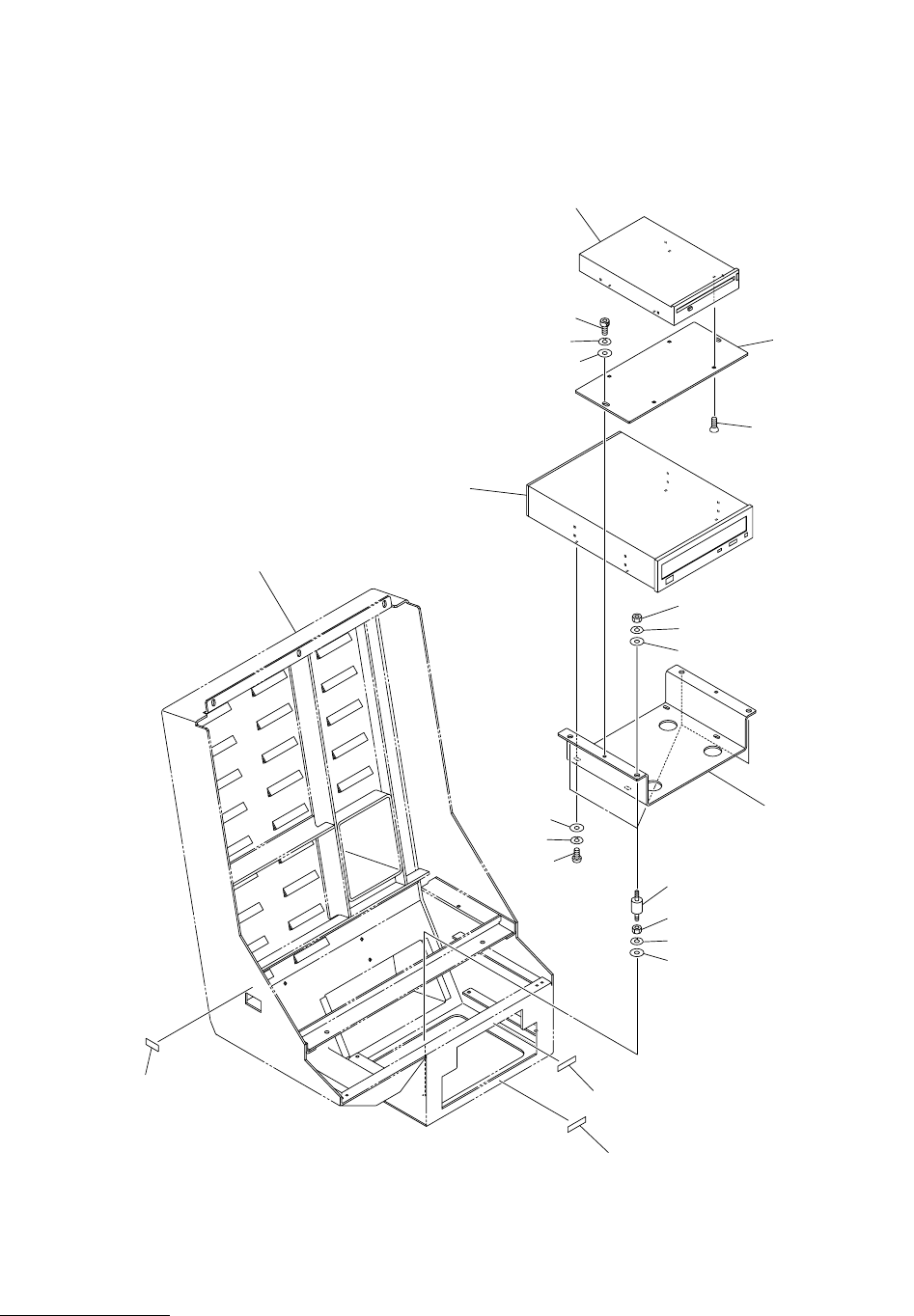

Fig. VC-7 FDD、CD-ROM ドライブ FDD, CD-ROM Drive
Fig.VC-7
TIM-X100-002
688
685
686
See Fig.VC-5
Key No.451
692
654
693
695
698
651
652
655
657
657
657
656
693
695
698
697
694
689
MODEL TIM-X100F/R
0302-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
189
VC-7
651 630 105 7156 BRACKET 1 750VC-210-651
652 630 105 7149 PLATE 1 750VC-210-652
654 630 106 5298 UNIT,I/O 1 CD-ROMD,PX-W1210TS
750VC-210-654
655 630 057 0694 UNIT,I/O 1 FDD,#FD-05HGS-750750VC-210-655
656 630 003 6916 MECH PARTS(RUBBER DAMPER) 4 750VC-210-656
657 630 103 8230 NAME PLATE,PARTS 2 750VC-210-751
685 411 141 2905 WASHER SPR 4 2 750VC-210-685
686 411 141 4008 WASHER V 4X9X0.8 2 750VC-210-686
688 630 000 7619 BOLT,HEX-SCT 2 750VC-210-688
689 411 042 0703 SCR PAN 3X8 4 750VC-210-689
692 411 002 2600 SCR FLT 3X6 4 750VC-210-692
693 411 054 8506 NUT HEX 4 8 750VC-210-693
694 411 086 4408 WASHER SPR 3 4 750VC-210-694
695 411 008 1706 WASHER SPR 4 8 750VC-210-695
697 411 086 4408 WASHER SPR 3 4 750VC-210-697
698 411 119 2104 WASHER V 4X9X0.8 8 750VC-210-698
