P-215-001e - 第200页
MODEL TIM-X100F/R 0302-002 198 標準付属品 ST ANDARD ACCESSORIES Fig. S-1 ノズル、治具、 スペアパーツ Nozzle, Jig and Spare Parts 1 5 2 3 4 Fig.S-1 TIM-X100-002 67 52 60 61 53 54 55 56 57 58 8 59 62
MODEL TIM-X100F/R
0302-001
197
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
52 630 086 8722 CORD 1 XCN51-XCN51A,51B 750VE-210-052
53 630 111 4828 CORD(VGA 3.0M) 1 XCN52-XCN77 750VE-210-053
55 630 092 4237 ASSY,CORD(X200SB110) 1 XCN54- 750VE-210-055
56 630 095 2018 CORD 1 XCN200-XCN16X1A,17X1A
750VE-210-056
57 630 095 2025 CORD 1 XCN201-XCN16X2A,17X2A
750VE-210-057
58 630 095 2049 CORD 1 XCN206-XCN206A 750VE-210-058
59 630 095 2056 CORD 1 XCN202-XCN202A,202B
750VE-210-059
60 630 095 2094 CORD 1 XCN205-XCN205A-XCN33
750VE-210-060
61 630 095 2100 CORD 1 XCN204-XCN204A 750VE-210-061
62 630 099 5930 CORD 1 XCN64-XCN1-CVL,CVP
750VE-210-062
63 630 099 5954 CORD 1 XCN65-XCN1-CVR 750VE-210-063
64 630 099 5985 CORD 1 XCN12-XCN1-X1,Y1 750VE-210-064
65 630 099 5992 CORD 1 XCN13-XCN1-X2,Y2 750VE-210-065
66 630 099 6005 CORD 1 XCN14-XCN1-Z1,L1 750VE-210-066
67 630 099 6012 CORD 1 XCN15-XCN1-Z2,L2,BPC
750VE-210-067
71 630 081 5870 CORD 1 750VE-210-071
77 630 099 1963 CORD 2 750VE-210-077
79 630 060 6409 ACCESSORY,WIRING 3 750VE-210-079
82 630 111 4835 CORD(VGA 4.2M) 1 XCN78-XCN222 750VE-210-252
83 630 095 2063 CORD 1 XCN208-XCN15X1A,XNC2
750VE-210-254
84 630 095 2070 CORD 1 XCN209-XCN15X2A,XNC3
750VE-210-255
85 630 095 2087 CORD 1 XCN210-XCN210A,XNC4
750VE-210-256
86 630 099 5909 CORD 1 XCN11-XCN61 750VE-210-258
87 630 099 5916 CORD 1 XCN62-XCN62A 750VE-210-259
88 630 099 5923 CORD 1 XCN63-XCN63A 750VE-210-260
89 630 099 5961 CORD 1 XCN66-XCN1-NC1 750VE-210-261
90 630 099 5978 CORD 1 XCN67-XCN1-NC2 750VE-210-262
91 630 102 3892 CORD 1 XCN17- 750VE-210-263
92 630 102 3908 CORD 1 XCN18- 750VE-210-264
93 630 102 3915 CORD 1 XCN19- 750VE-210-265
94 630 102 3922 CORD 1 XCN20- 750VE-210-266
95 630 102 3939 CORD 1 XCN21- 750VE-210-267
96 630 102 3946 CORD 1 XCN25- 750VE-210-268
97 630 102 3953 CORD 1 XCN26-XCN26A 750VE-210-269
98 630 111 4811 CORD(VGA 2.7M) 1 XCN79-XCN232 750VE-210-270
99 630 099 2182 CORD 1 XCN34A- 750VE-210-358
VE-1
MODEL TIM-X100F/R
0302-002
198

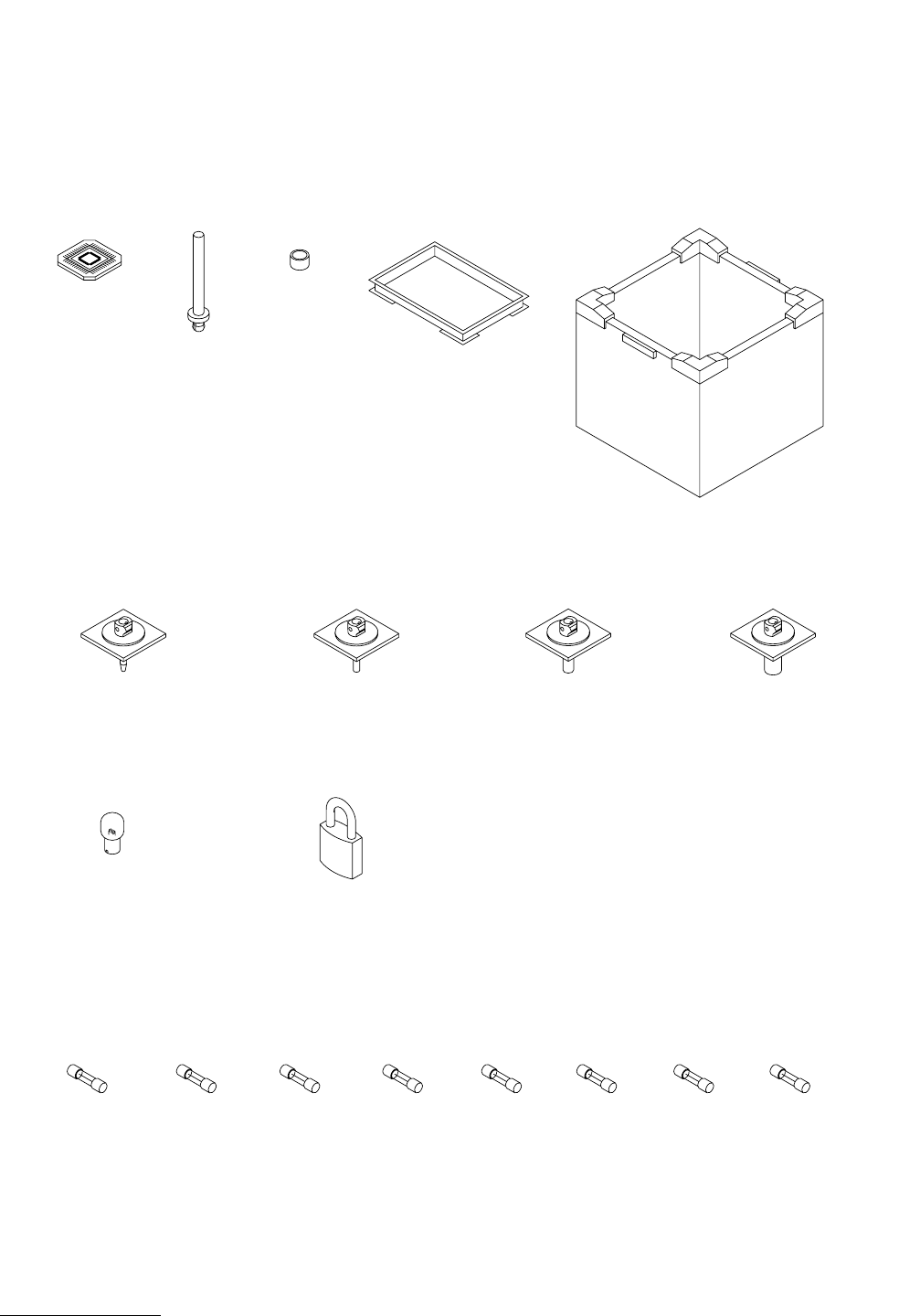

標準付属品 STANDARD ACCESSORIES
Fig. S-1
ノズル、治具、スペアパーツ
Nozzle, Jig and Spare Parts
1
5
2
3
4
Fig.S-1
TIM-X100-002
67
52 60
61
53
54
55
56
57
58
8
59 62
MODEL TIM-X100F/R
0302-002
199
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
S-1
1 630 073 0036 PLATE 1 750S--210-001
2 630 069 3607 ROD 10 750S--210-002
3 630 108 9270 BOX 3 750S--210-003
4 630 069 5816 AIR LINE EQPT 40 750S--210-004
5 630 102 6947 ASSY,NOZZLE(EA04) 2 750S--210-005
6 630 102 6954 ASSY,NOZZLE(EA05) 2 750S--210-006
7 630 102 6961 ASSY,NOZZLE(EA06) 2 750S--210-007
8 630 102 6978 ASSY,NOZZLE(EF01) 2 750S--210-008
52 630 099 2250 LAMP 2 750S--210-052
53 423 027 3500 FUSE 250V0.315A 2 750S--210-053
54 423 022 8005 FUSE 250V 1A 2 750S--210-054
55 423 025 1904 FUSE 250V 1.6A 2 750S--210-055
56 423 022 8104 FUSE 250V 2A 2 750S--210-056
57 423 022 8203 FUSE 250V 3.15A 2 750S--210-057
58 423 025 5100 FUSE 250V 4A 2 750S--210-058
59 423 022 8302 FUSE 250V 5A 2 750S--210-059
60 630 061 9737 MECH PARTS (PADLOCK) 1 750S--210-060
61 630 111 3081 BOX 1 750S--210-061
62 423 030 0503 FUSE 50V 1.5A 2 750S--210-062
