MODEL TIM-X100F/R

0302-002

214

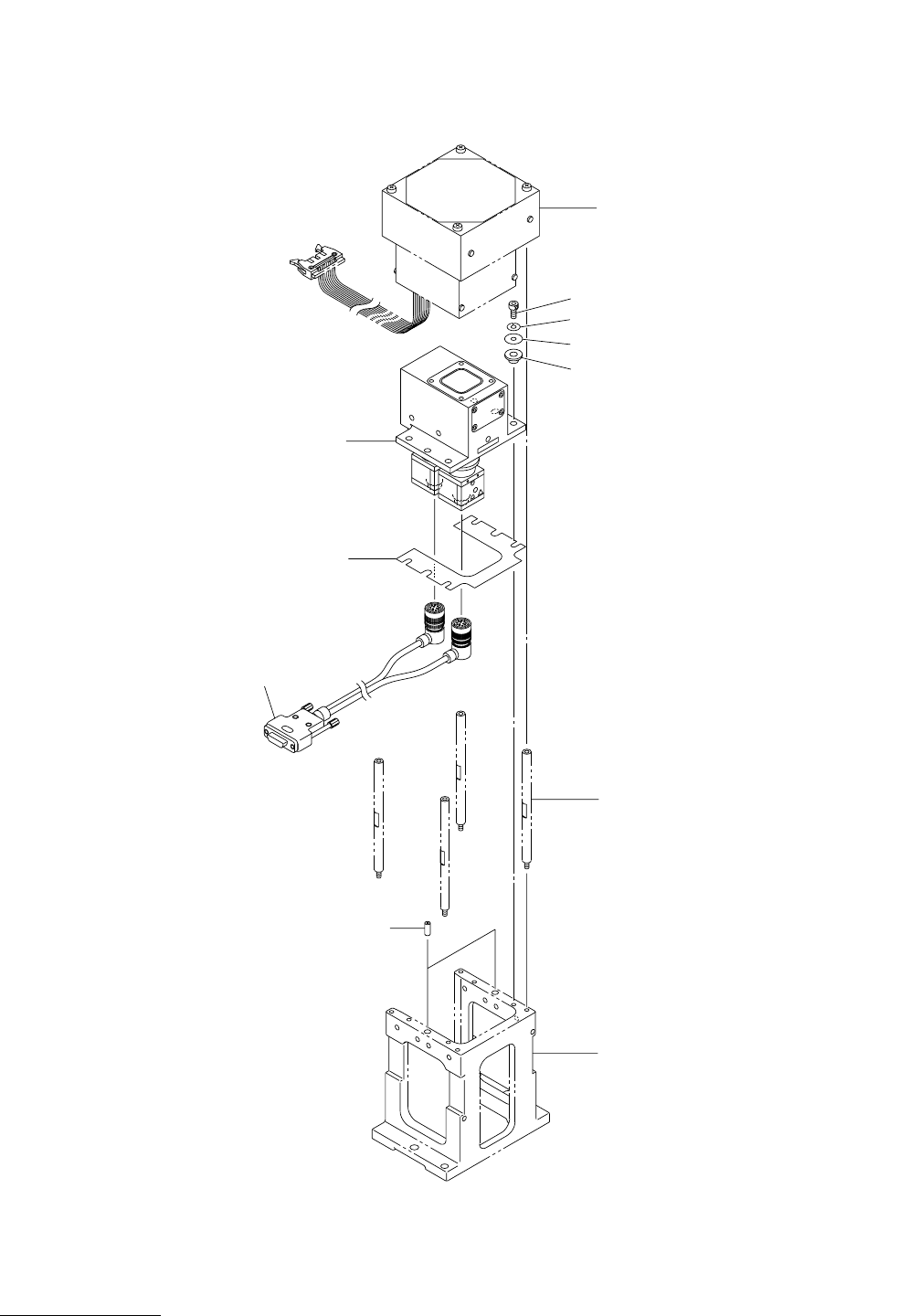

固定認識カメラ FIXED RECOGNITION CAMERA

極小視野 / 大視野 CM-5011 Min View/Large View CM-5011

Fig. UC-1

Fig.UC-1

See Fig.UD-1 Key No.51

or Fig.B-4 Key No.352

See Fig.UD-1

Key No.1

See Fig.B-4

Key No.302

CM-5011

MODEL TIM-X100F/R

0112-001

215

Key No. PART No. PART NAME Q’ty REMARKS

NOTE

UC-1

1 630 109 6841 SPACER 1 756UC-210-001

2 630 084 2708 PIN,LOCATE 2 756UC-210-002

51 630 109 6872 ASSY,SCOPE UNIT 1 CAM-A1,A2 or B1,B2 756UC-210-051

52 630 110 6953 CORD 1 756UC-210-052

56 630 069 9340 ACCESSORY,P.C.B (BUSH) 4 756UC-210-003

96 630 000 7664 BOLT,HEX-SCT 4 756UC-210-004

97 411 141 2905 WASHER SPR 4 4 756UC-210-005

98 630 001 0213 WASHER 4 756UC-210-006
